COGIS - WELL SCOUT CARD

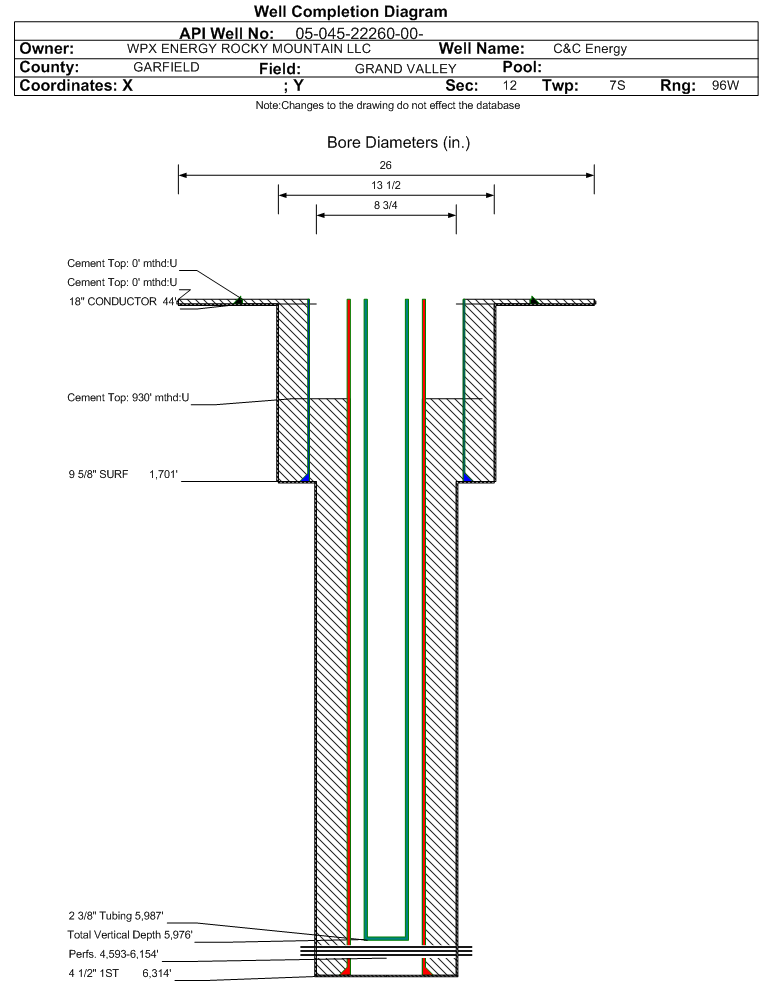

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-22260		Well Classification: GW Status: PR - 12/1/2017
Well Name/No:C&C Energy #GM 421-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2017
FacilityID:435445LocationID:334722
Municipality/County:PARACHUTE / GARFIELD #045Location:SWSW 12 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5141 ft.
Basin:PICEANCE BASIN
Planned Location:273FSL  1039 FWLLat/Long: 39.445614 / -108.064458Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.445615 / -108.064460Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 6/16/2014
End Date: 6/18/2014
Reported: 8/5/2014
Days to report: 48
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2017             Measured TD: 6325 ft.    Vertical TD: 5976 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2017
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:12/14/2015
Proposed Top PZ Location:Sec:13 Twp: 7S 96W Footage: 736 FNL  2206 FWL
Bottom Hole Location:Sec:13 Twp: 7S 96W Footage: 736 FNL  2206 FWL
Proposed Depth/Form:6338 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFILS , Formation: WILLIAMS FORK-ILES , Order: 479-21 , Unit Acreage: 320, Drill Unit: W/2
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1688 ft., Weight: 32.3# , Citings Type: PLANNED
Cement:Sacks: 436, Top: 0 ft., Bottom: 1688 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6338 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 748, Top: , Bottom: 6338 ft.
Wellbore Completed
Completion Date:4/19/2014
Spud Date:4/15/2014Spud Date Is:ACTUAL
Measured TD:6325 ft.Measured PB depth:6282 ft.
True Vertical TD:5976 ft.True Vertical PB depth:5933 ft.
Top PZ Location:Sec:13 Twp: 7S 96WFootage: 697 FNL  2214 FWL
Bottom Hole Location:Sec:13 Twp: 7S 96WFootage: 707 FNL  2211 FWL
Log Types:SP GR HDIL ZDL RPM CN CBL MUDLOGS
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 44 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 16, Top: 0 ft., Bottom: 44 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1701 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 420, Top: 0 ft., Bottom: 1701 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6314 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1070, Top: 930 ft., Bottom: 6314 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1125 ft.
MESAVERDE3253 ft.
CAMEO5746 ft.
ROLLINS6238 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2017                 Interval Top: 4593 ft.    Interval Bottom: 6154 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:6/15/2014Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:6/16/2014Treatment End Date:6/18/2014
Treatment Summary:5 STAGES; 704000 # 40/70 Sand: 18875 Bbls Slickwater (Summary)
Total fluid used in treatment (bbls):18875Max pressure during treatment (psi):4941
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:5
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.69
Recycled water used in treatment (bbls):18875Total flowback volume recovered (bbls):8381
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):704000Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:5987 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/5/2014Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1090
CALC_MCF_GAS 1127
CASING_PRESS 1706
MCF_GAS 1127
TUBING_PRESS 1421
Perforation Data:
Interval Top:4593 ft.# Of Holes:111
Interval Bottom:6154 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)14707
GOR774052
GOR DeterminationMCFE
Average BOE per Day6.987
Average MCFE per Day40.528

 Federal Financial Assurance  i

 Tribal Well  i No
