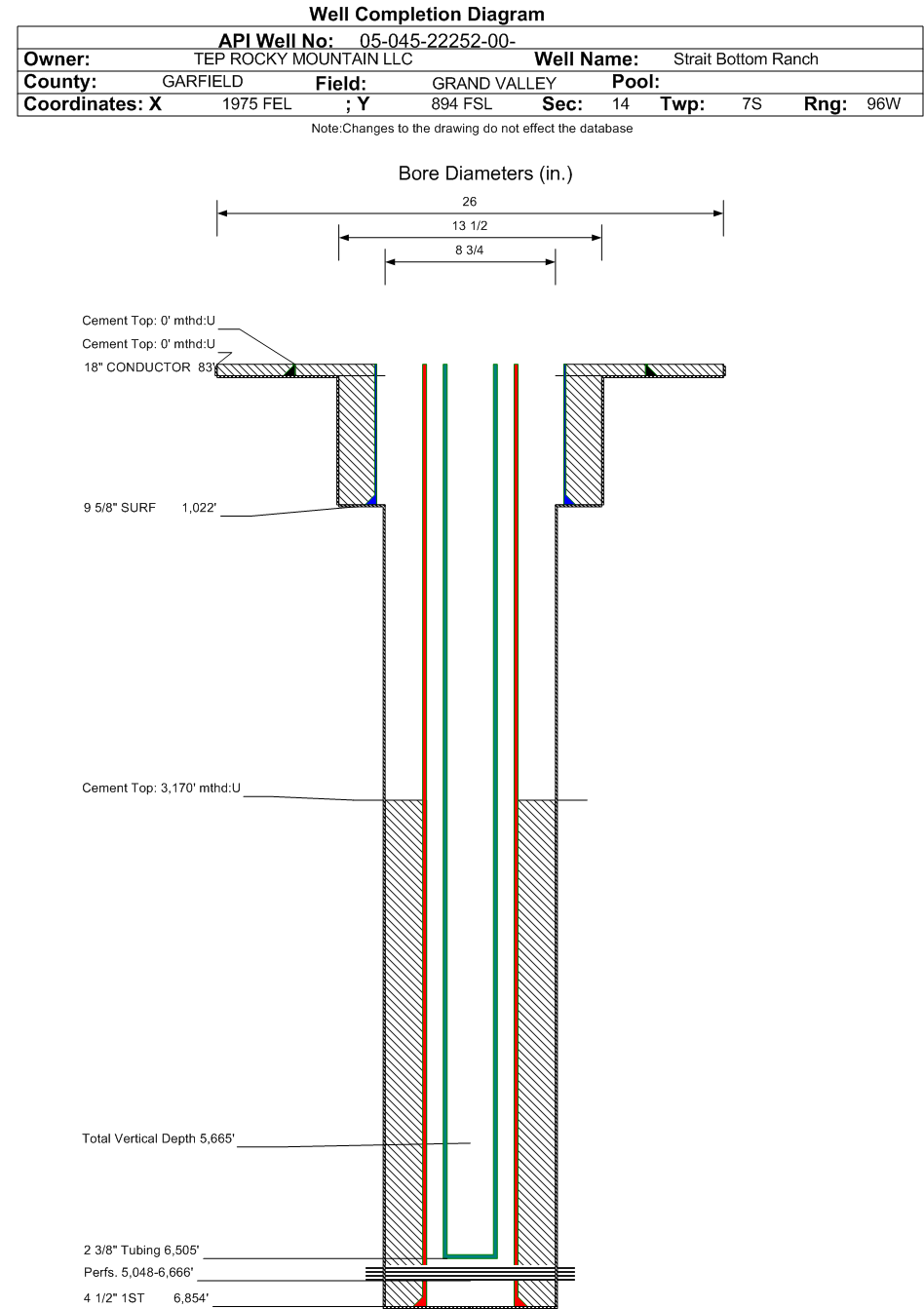

Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2019 Measured TD: 6864 ft. Vertical TD: 5665 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/26/2020 | | Proposed Top PZ Location: | Sec:14 Twp: 7S 96W | Footage: 2110 FSL 702 FWL | | Bottom Hole Location: | Sec:14 Twp: 7S 96W | Footage: 2110 FSL 702 FWL | | Proposed Depth/Form: | 6883 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 1-229 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.4 , Citings Type: PLANNED | | Cement: | Sacks: 134, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6883 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 566, Top: 3594 ft., Bottom: 6883 ft. |
| | |
| Wellbore Completed | | Completion Date: | 5/2/2019 | | Spud Date: | 4/29/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 6864 ft. | Measured PB depth: | 6821 ft. | | True Vertical TD: | 5665 ft. | True Vertical PB depth: | 5622 ft. | | Top PZ Location: | Sec:14 Twp: 7S 96W | Footage: 2113 FSL 737 FWL | | Bottom Hole Location: | Sec:14 Twp: 7S 96W | Footage: 2117 FSL 668 FWL | | Log Types: | CBL, NEU, (Triple Combo 045-07440) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 83 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 139, Top: 0 ft., Bottom: 83 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1022 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 0 ft., Bottom: 1032 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6854 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 850, Top: 3170 ft., Bottom: 6864 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1188 ft. | | | | | MESAVERDE | 3732 ft. | | | | | OHIO CREEK | 3732 ft. | | | | | WILLIAMS FORK | 5112 ft. | | | | | CAMEO | 6272 ft. | | | | | ROLLINS | 6734 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/1/2019 Interval Top: 5048 ft. Interval Bottom: 6666 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/1/2019 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/31/2019 | Treatment End Date: | 6/6/2019 | | Treatment Summary: | 76883 bbls of Slickwater; 2726 gals of Biocide | | Total fluid used in treatment (bbls): | 76948 | Max pressure during treatment (psi): | 6846 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 9 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.69 | | Recycled water used in treatment (bbls): | 76883 | Total flowback volume recovered (bbls): | 28631 | | Fresh water used in treatment (bbls): | 65 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6505 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/1/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1096 | | CALC_MCF_GAS | 4710 | | CASING_PRESS | 1577 | | MCF_GAS | 4710 | | TUBING_PRESS | 1550 |
| | Perforation Data: | | Interval Top: | 5048 ft. | # Of Holes: | 189 | | Interval Bottom: | 6666 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 174 |
| Total Gas Produced (MCF) | 101705 |
| GOR | 584511 |
| GOR Determination | MCFE |
| Average BOE per Day | 48.519 |
| Average MCFE per Day | 281.400 |
| Federal Financial Assurance | i | Y |
|
|
