Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2019 Measured TD: 5880 ft. Vertical TD: 5704 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/26/2020 | | Proposed Top PZ Location: | Sec:14 Twp: 7S 96W | Footage: 1749 FSL 2450 FEL | | Bottom Hole Location: | Sec:14 Twp: 7S 96W | Footage: 1749 FSL 2450 FEL | | Proposed Depth/Form: | 5906 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 1-229 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.4 , Citings Type: PLANNED | | Cement: | Sacks: 134, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 5906 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 559, Top: 2660 ft., Bottom: 5906 ft. |
| | |

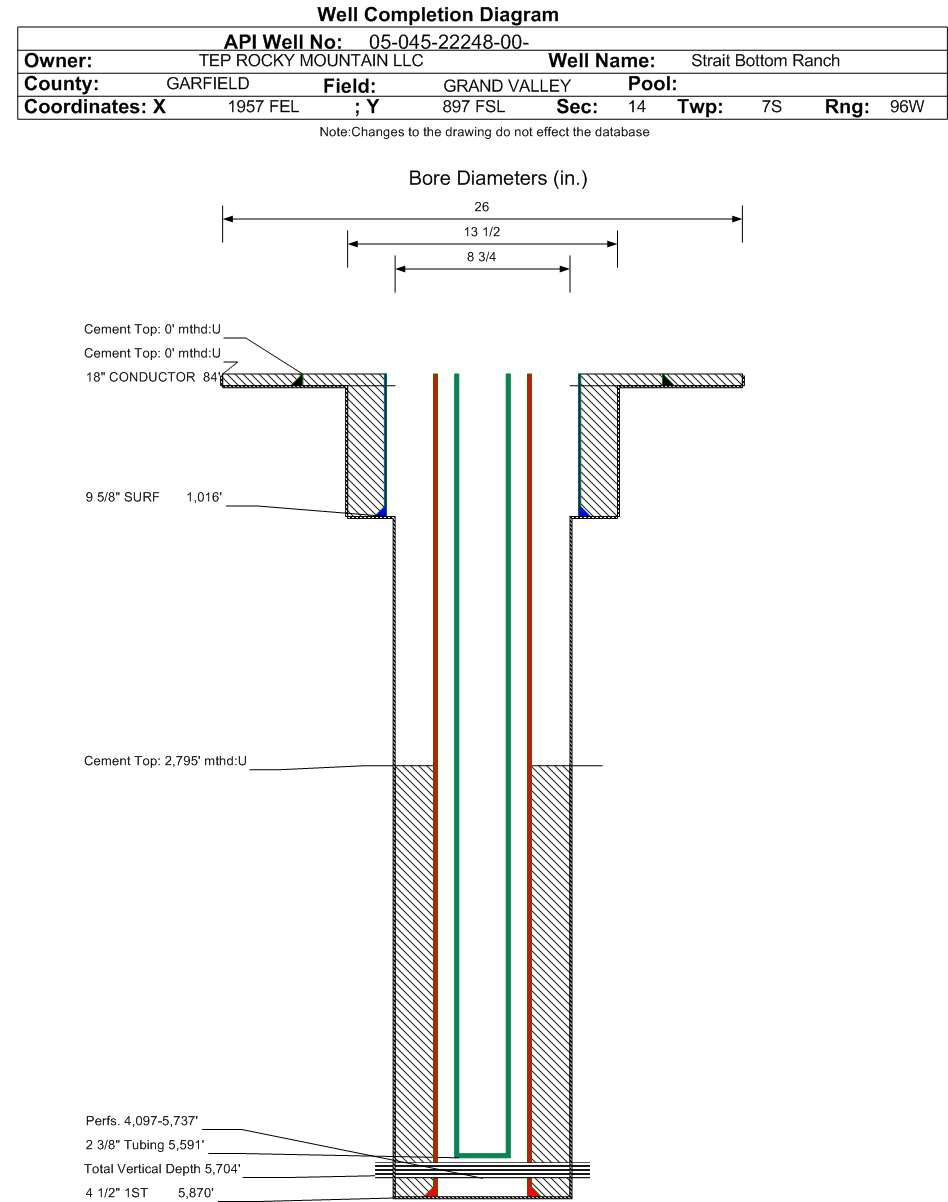

| Wellbore Completed | | Completion Date: | 4/17/2019 | | Spud Date: | 4/14/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 5880 ft. | Measured PB depth: | 5839 ft. | | True Vertical TD: | 5704 ft. | True Vertical PB depth: | 5663 ft. | | Top PZ Location: | Sec:14 Twp: 7S 96W | Footage: 1778 FSL 2428 FEL | | Bottom Hole Location: | Sec:14 Twp: 7S 96W | Footage: 1744 FSL 2476 FEL | | Log Types: | CBL, NEU, (Triple Combo in API 045-07440) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 84 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 140, Top: 0 ft., Bottom: 84 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1016 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 275, Top: 0 ft., Bottom: 1016 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 5870 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 790, Top: 2795 ft., Bottom: 5880 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 901 ft. | | | | | MESAVERDE | 2816 ft. | | | | | OHIO CREEK | 2816 ft. | | | | | WILLIAMS FORK | 4157 ft. | | | | | CAMEO | 5340 ft. | | | | | ROLLINS | 5812 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/1/2019 Interval Top: 4097 ft. Interval Bottom: 5737 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/1/2019 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/31/2019 | Treatment End Date: | 6/6/2019 | | Treatment Summary: | 56465 bbls of Slickwater; 1923 gals of Biocide | | Total fluid used in treatment (bbls): | 56511 | Max pressure during treatment (psi): | 6157 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 9 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.70 | | Recycled water used in treatment (bbls): | 56465 | Total flowback volume recovered (bbls): | 17611 | | Fresh water used in treatment (bbls): | 46 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5591 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/1/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1099 | | CALC_MCF_GAS | 2909 | | CASING_PRESS | 1085 | | MCF_GAS | 2909 | | TUBING_PRESS | 945 |
| | Perforation Data: | | Interval Top: | 4097 ft. | # Of Holes: | 189 | | Interval Bottom: | 5737 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 58 |
| Total Gas Produced (MCF) | 32401 |
| GOR | 558637 |
| GOR Determination | MCFE |
| Average BOE per Day | 15.474 |
| Average MCFE per Day | 89.770 |
| Federal Financial Assurance | i | Y |
|
|
