Wellbore #00 Wellbore Classification: GW Status: PR - 7/30/2015 Measured TD: 8781 ft. Vertical TD: 8462 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/30/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/22/2015 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 95W | Footage: 1301 FNL 2189 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 95W | Footage: 1301 FNL 2189 FEL | | Proposed Depth/Form: | 8764 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: 320, Drill Unit: N2,N2S2,SESE | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2890 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 733, Top: 0 ft., Bottom: 2890 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8932 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 923, Top: 5019 ft., Bottom: 8932 ft. |
| | |

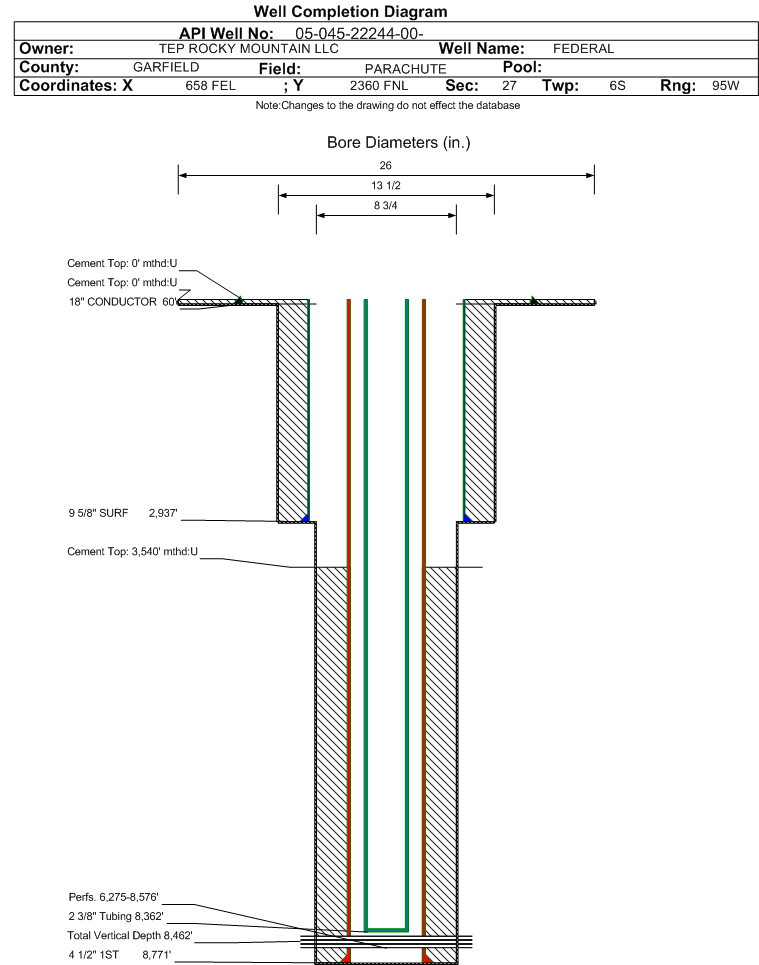

| Wellbore Completed | | Completion Date: | 11/10/2014 | | Spud Date: | 11/2/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 8781 ft. | Measured PB depth: | 8741 ft. | | True Vertical TD: | 8462 ft. | True Vertical PB depth: | 8422 ft. | | Top PZ Location: | Sec:27 Twp: 6S 95W | Footage: 1301 FNL 2189 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 95W | Footage: 1311 FNL 2194 FEL | | Log Types: | CBL/MUD/RPM/No OH logs/OH logs on the FEDERAL PA 41-27(045-22239) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2937 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 555, Top: 0 ft., Bottom: 2937 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8771 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1055, Top: 3540 ft., Bottom: 8771 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2676 ft. | | | | | MESAVERDE | 5138 ft. | | | | | WILLIAMS FORK | 5138 ft. | | | | | CAMEO | 7989 ft. | | | | | ROLLINS | 8638 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/30/2015 Interval Top: 6275 ft. Interval Bottom: 8576 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/21/2015 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/11/2015 | Treatment End Date: | 6/16/2015 | | Treatment Summary: | 1000 Gals 7 1/2% HCL; 47775 BBLs Slickwater; 1699000 #40/70 Sand; (summary) | | Total fluid used in treatment (bbls): | 47799 | Max pressure during treatment (psi): | 6857 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 12 | | Total acid used in treatment (bbls): | 24 | Min frac gradient (psi/ft): | 0.73 | | Recycled water used in treatment (bbls): | 47775 | Total flowback volume recovered (bbls): | 10387 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1699000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8362 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/30/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1070 | | CALC_MCF_GAS | 800 | | CASING_PRESS | 1926 | | MCF_GAS | 800 | | TUBING_PRESS | 1379 |
| | Perforation Data: | | Interval Top: | 6275 ft. | # Of Holes: | 288 | | Interval Bottom: | 8576 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 109 |
| Total Gas Produced (MCF) | 40030 |
| GOR | 367247 |
| GOR Determination | MCFE |
| Average BOE per Day | 19.209 |
| Average MCFE per Day | 111.423 |
| Federal Financial Assurance | i | Y |
|
|
