Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2015 Measured TD: 8721 ft. Vertical TD: 8550 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/22/2015 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 95W | Footage: 974 FNL 524 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 95W | Footage: 974 FNL 524 FEL | | Proposed Depth/Form: | 8689 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: 320, Drill Unit: N2,N2S2, SESE | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2852 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 724, Top: 0 ft., Bottom: 2852 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8838 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 926, Top: 4910 ft., Bottom: 8838 ft. |
| | |

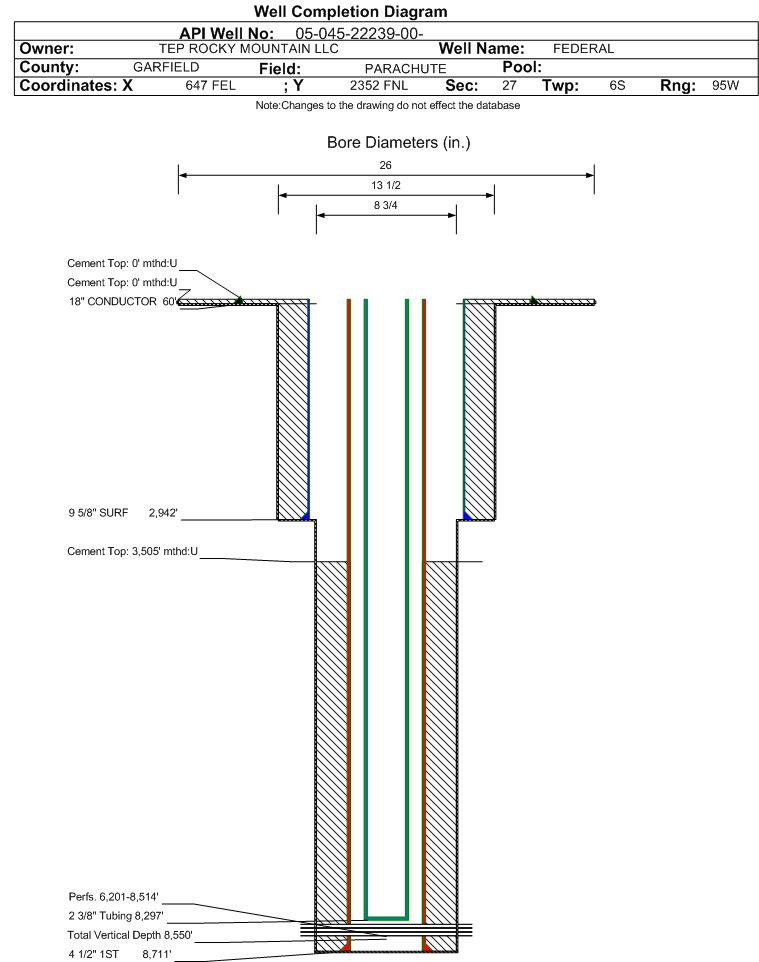

| Wellbore Completed | | Completion Date: | 11/26/2014 | | Spud Date: | 11/18/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 8721 ft. | Measured PB depth: | 8641 ft. | | True Vertical TD: | 8550 ft. | True Vertical PB depth: | 8470 ft. | | Top PZ Location: | Sec:27 Twp: 6S 95W | Footage: 974 FNL 524 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 95W | Footage: 987 FNL 531 FEL | | Log Types: | CBL/MUD/Triple Combination | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2942 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 555, Top: 0 ft., Bottom: 2942 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8711 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1065, Top: 3505 ft., Bottom: 8711 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2646 ft. | | | | | MESAVERDE | 5050 ft. | | | | | WILLIAMS FORK | 5050 ft. | | | | | CAMEO | 7912 ft. | | | | | ROLLINS | 8578 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 7/31/2015 Interval Top: 6201 ft. Interval Bottom: 8514 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/18/2015 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/11/2015 | Treatment End Date: | 6/17/2015 | | Treatment Summary: | 48162 BBLs Slickwater; 684800 #40/70 Sand; (summary) | | Total fluid used in treatment (bbls): | 48162 | Max pressure during treatment (psi): | 6768 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 8 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.73 | | Recycled water used in treatment (bbls): | 48162 | Total flowback volume recovered (bbls): | 10938 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 684800 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8297 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/31/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1094 | | CALC_MCF_GAS | 924 | | CASING_PRESS | 2183 | | MCF_GAS | 924 | | TUBING_PRESS | 1804 |
| | Perforation Data: | | Interval Top: | 6201 ft. | # Of Holes: | 183 | | Interval Bottom: | 8514 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 115 |
| Total Gas Produced (MCF) | 42715 |
| GOR | 371434 |
| GOR Determination | MCFE |
| Average BOE per Day | 20.499 |
| Average MCFE per Day | 118.889 |
| Federal Financial Assurance | i | Y |
|
|
