COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-22190		Well Classification: GW Status: PR - 5/30/2015
Well Name/No:Puckett #GM 411-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC24099
Facility Status:PRStatus Date5/30/2015
FacilityID:434820LocationID:433948
County:GARFIELD #045Location:LOT 4 28 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5604 ft.
Basin:PICEANCE BASIN
Planned Location:1291FNL  1066 FWLLat/Long: 39.498931 / -108.119381Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.498929 / -108.119380Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 4/7/2015
End Date: 4/14/2015
Reported: 5/26/2015
Days to report: 42
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/30/2015             Measured TD: 6927 ft.    Vertical TD: 6908 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/30/2015
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:10/21/2015
Proposed Top PZ Location:Sec:28 Twp: 6S 96W Footage: 975 FNL  1305 FWL
Bottom Hole Location:Sec:28 Twp: 6S 96W Footage: 975 FNL  1305 FWL
Proposed Depth/Form:6910 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:CA 046627
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 320, Drill Unit: W/2
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3# , Citings Type: PLANNED
Cement:Sacks: 266, Top: 0 ft., Bottom: 1000 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6917 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 762, Top: 3559 ft., Bottom: 6917 ft.

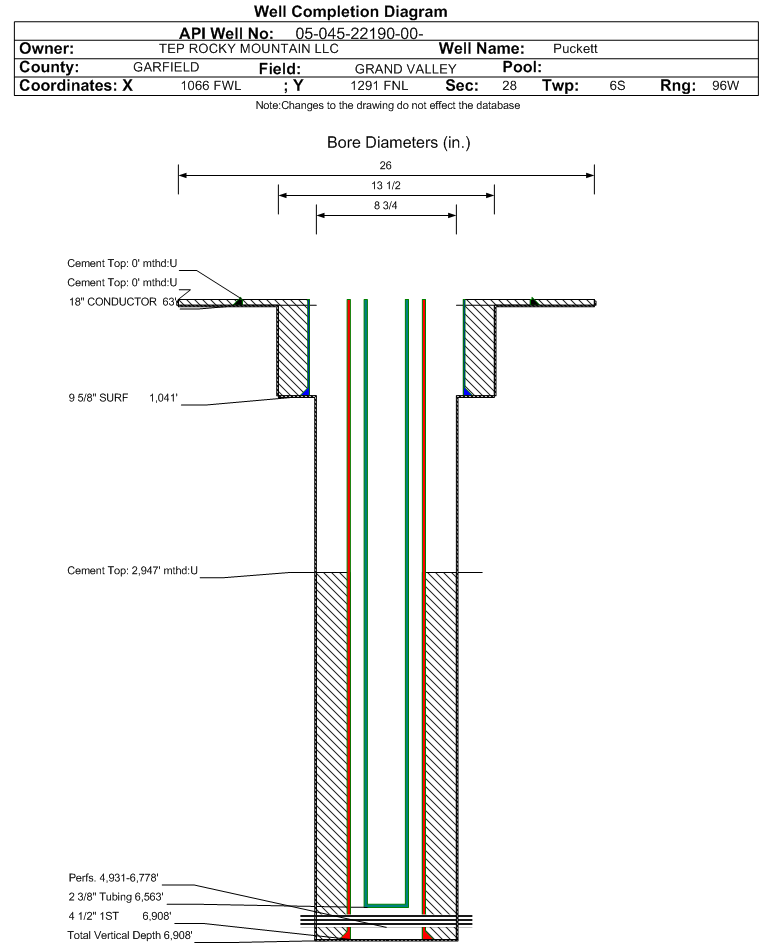

Wellbore Completed
Completion Date:1/13/2015
Spud Date:1/8/2015Spud Date Is:ACTUAL
Measured TD:6927 ft.Measured PB depth:6854 ft.
True Vertical TD:6908 ft.True Vertical PB depth:6835 ft.
Top PZ Location:Sec:28 Twp: 6S 96WFootage: 978 FNL  1306 FWL
Bottom Hole Location:Sec:28 Twp: 6S 96WFootage: 979 FNL  1272 FWL
Log Types:CBL/MUD/RPM/no open hole log run on this well/Open Hole logs were run on the GM 701-28-HN1 API#05-045-22154
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 24, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1041 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 0 ft., Bottom: 1041 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6908 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1115, Top: 2947 ft., Bottom: 6908 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2077 ft.
MESAVERDE3740 ft.
WILLIAMS FORK3740 ft.
CAMEO6344 ft.
ROLLINS6817 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/30/2015                 Interval Top: 4931 ft.    Interval Bottom: 6778 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/18/2015Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:4/7/2015Treatment End Date:4/14/2015
Treatment Summary:32408 BBls Slickwater; 1177700 #40/70 Sand; (summary)
Total fluid used in treatment (bbls):32408Max pressure during treatment (psi):3666
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:9
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.69
Recycled water used in treatment (bbls):32408Total flowback volume recovered (bbls):11526
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):1177700Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:6563 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/30/2015Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1068
CALC_MCF_GAS 851
CASING_PRESS 1325
MCF_GAS 851
TUBING_PRESS 1066
Perforation Data:
Interval Top:4931 ft.# Of Holes:213
Interval Bottom:6778 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)85
Total Gas Produced (MCF)33069
GOR389047
GOR DeterminationMCFE
Average BOE per Day15.848
Average MCFE per Day91.938

 Federal Financial Assurance  i Y

 Tribal Well  i No
