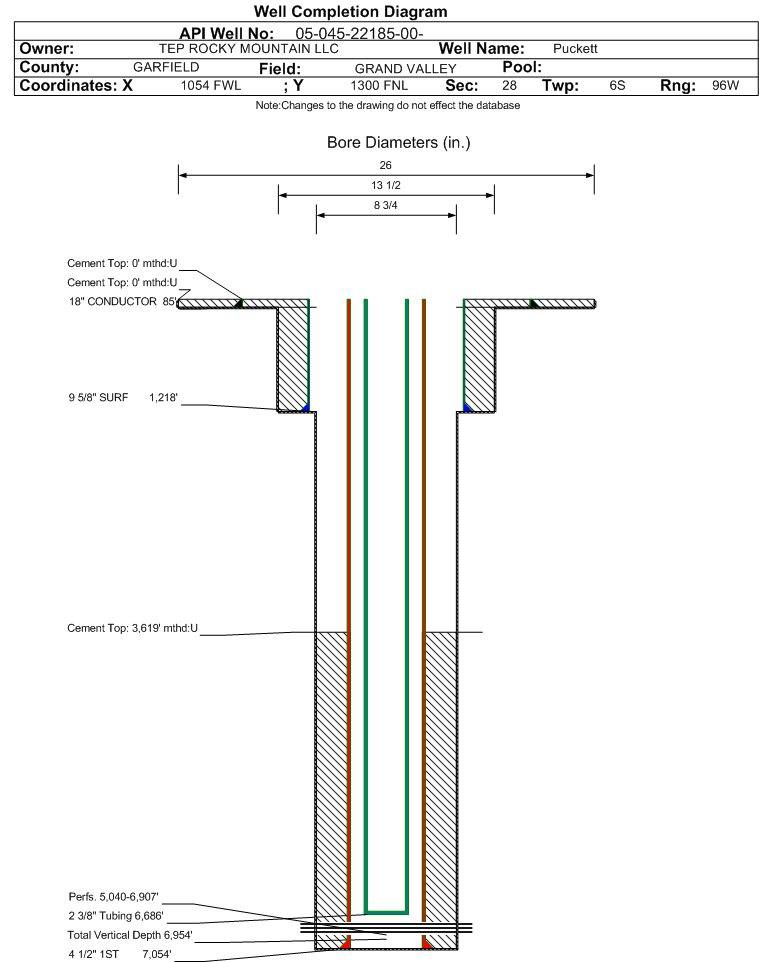

Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2015 Measured TD: 7068 ft. Vertical TD: 6954 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/21/2015 | | Proposed Top PZ Location: | Sec:28 Twp: 6S 96W | Footage: 310 FNL 1199 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 96W | Footage: 310 FNL 1199 FWL | | Proposed Depth/Form: | 7069 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | CA 046627 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 320, Drill Unit: W/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1191 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 313, Top: 0 ft., Bottom: 1191 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7040 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 767, Top: 3657 ft., Bottom: 7040 ft. |
| | |
| Wellbore Completed | | Completion Date: | 12/17/2014 | | Spud Date: | 12/11/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 7068 ft. | Measured PB depth: | 7030 ft. | | True Vertical TD: | 6954 ft. | True Vertical PB depth: | 6916 ft. | | Top PZ Location: | Sec:28 Twp: 6S 96W | Footage: 339 FNL 1207 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 96W | Footage: 301 FNL 1190 FWL | | Log Types: | Baker Cased hole (CH): CBL, Mud, and Reservoir Performance Monitor (RPM) | | Log Types: | Triple Combination on the Puckett GM 314-21(045-22187) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 85 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: 0 ft., Bottom: 85 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1218 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 310, Top: 0 ft., Bottom: 1218 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7054 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1115, Top: 3619 ft., Bottom: 7054 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2114 ft. | | | | | MESAVERDE | 3876 ft. | | | | | WILLIAMS FORK | 3876 ft. | | | | | CAMEO | 6450 ft. | | | | | ROLLINS | 6938 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 5/30/2015 Interval Top: 5040 ft. Interval Bottom: 6907 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/9/2015 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/7/2015 | Treatment End Date: | 4/13/2015 | | Treatment Summary: | 25417 BBLs Slickwater; 945000 #40/70 Sand; (summary) | | Total fluid used in treatment (bbls): | 25417 | Max pressure during treatment (psi): | 6586 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.66 | | Recycled water used in treatment (bbls): | 25417 | Total flowback volume recovered (bbls): | 11256 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 945000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6686 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/30/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1060 | | CALC_MCF_GAS | 904 | | CASING_PRESS | 1484 | | MCF_GAS | 904 | | TUBING_PRESS | 1305 |
| | Perforation Data: | | Interval Top: | 5040 ft. | # Of Holes: | 134 | | Interval Bottom: | 6907 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 81 |
| Total Gas Produced (MCF) | 31545 |
| GOR | 389444 |
| GOR Determination | MCFE |
| Average BOE per Day | 15.124 |
| Average MCFE per Day | 87.711 |
| Federal Financial Assurance | i | Y |
|
|
