COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-22180		Well Classification: GW Status: PR - 5/30/2015
Well Name/No:Puckett #GM 521-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC24099
Facility Status:PRStatus Date5/30/2015
FacilityID:434806LocationID:433948
County:GARFIELD #045Location:Lot 4 28 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5604 ft.
Basin:PICEANCE BASIN
Planned Location:1305FNL  1048 FWLLat/Long: 39.498892 / -108.119442Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.498892 / -108.119443Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 4/7/2015
End Date: 4/13/2015
Reported: 5/26/2015
Days to report: 43
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/30/2015             Measured TD: 6913 ft.    Vertical TD: 6897 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/30/2015
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:10/21/2015
Proposed Top PZ Location:Sec:28 Twp: 6S 96W Footage: 1259 FNL  1410 FWL
Bottom Hole Location:Sec:28 Twp: 6S 96W Footage: 1259 FNL  1410 FWL
Proposed Depth/Form:6967 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:CA 046627
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 320, Drill Unit: W/2
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3# , Citings Type: PLANNED
Cement:Sacks: 266, Top: 0 ft., Bottom: 1000 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6910 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 762, Top: 3552 ft., Bottom: 6910 ft.

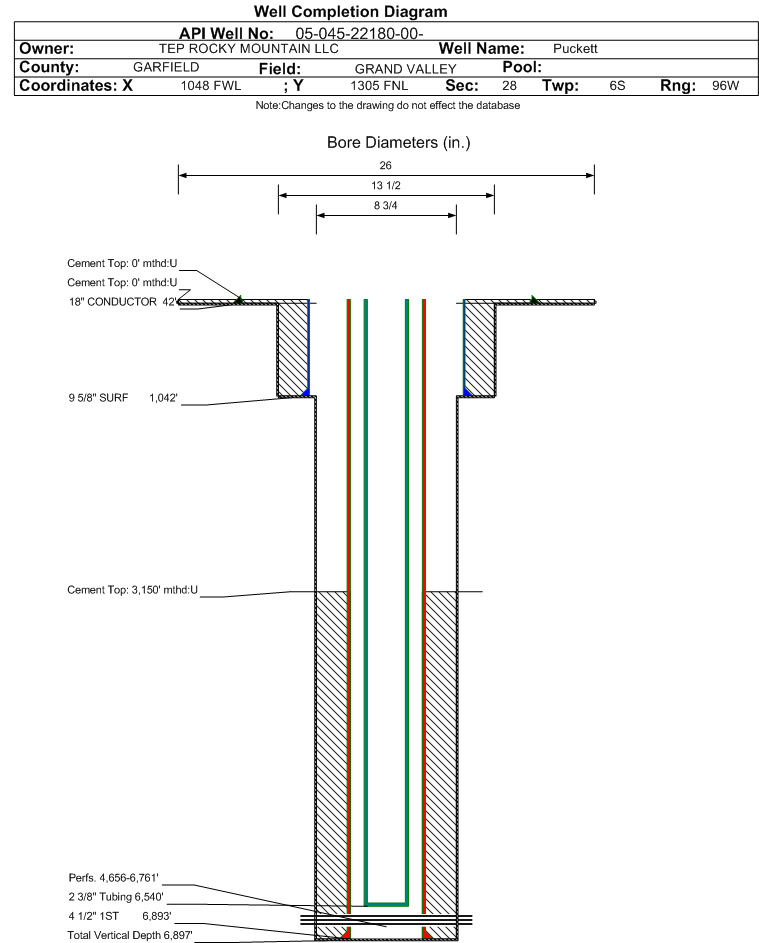

Wellbore Completed
Completion Date:11/24/2014
Spud Date:11/17/2014Spud Date Is:ACTUAL
Measured TD:6913 ft.Measured PB depth:6868 ft.
True Vertical TD:6897 ft.True Vertical PB depth:6852 ft.
Top PZ Location:Sec:28 Twp: 6S 96WFootage: 1257 FNL  1403 FWL
Bottom Hole Location:Sec:28 Twp: 6S 96WFootage: 1260 FNL  1393 FWL
Log Types:RPM/MUD/CBL/Triple Combo on the Puckett GM 314-21 API#045-22187
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1042 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 285, Top: 0 ft., Bottom: 1042 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6893 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1075, Top: 3150 ft., Bottom: 6893 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2076 ft.
MESAVERDE3735 ft.
WILLIAMS FORK3735 ft.
CAMEO6307 ft.
ROLLINS6799 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/30/2015                 Interval Top: 4656 ft.    Interval Bottom: 6761 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/8/2015Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:4/7/2015Treatment End Date:4/13/2015
Treatment Summary:30087 BBLs Slickwater; 1119100 #40/70 Sand; (summary)
Total fluid used in treatment (bbls):30087Max pressure during treatment (psi):4409
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:7
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.67
Recycled water used in treatment (bbls):30087Total flowback volume recovered (bbls):10019
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):1119100Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:6540 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/30/2015Test Method:Flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1069
CALC_MCF_GAS 627
CASING_PRESS 1212
MCF_GAS 627
TUBING_PRESS 933
Perforation Data:
Interval Top:4656 ft.# Of Holes:151
Interval Bottom:6761 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)68
Total Gas Produced (MCF)25818
GOR379676
GOR DeterminationMCFE
Average BOE per Day12.383
Average MCFE per Day71.839

 Federal Financial Assurance  i Y

 Tribal Well  i No
