Wellbore #00 Wellbore Classification: GW Status: PR - 5/31/2015 Measured TD: 7017 ft. Vertical TD: 6963 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/31/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/21/2015 | | Proposed Top PZ Location: | Sec:28 Twp: 6S 96W | Footage: 638 FNL 1338 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 96W | Footage: 638 FNL 1338 FWL | | Proposed Depth/Form: | 7065 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | CA 046627 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 320, Drill Unit: W/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 266, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6974 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 768, Top: 3584 ft., Bottom: 6974 ft. |
| | |

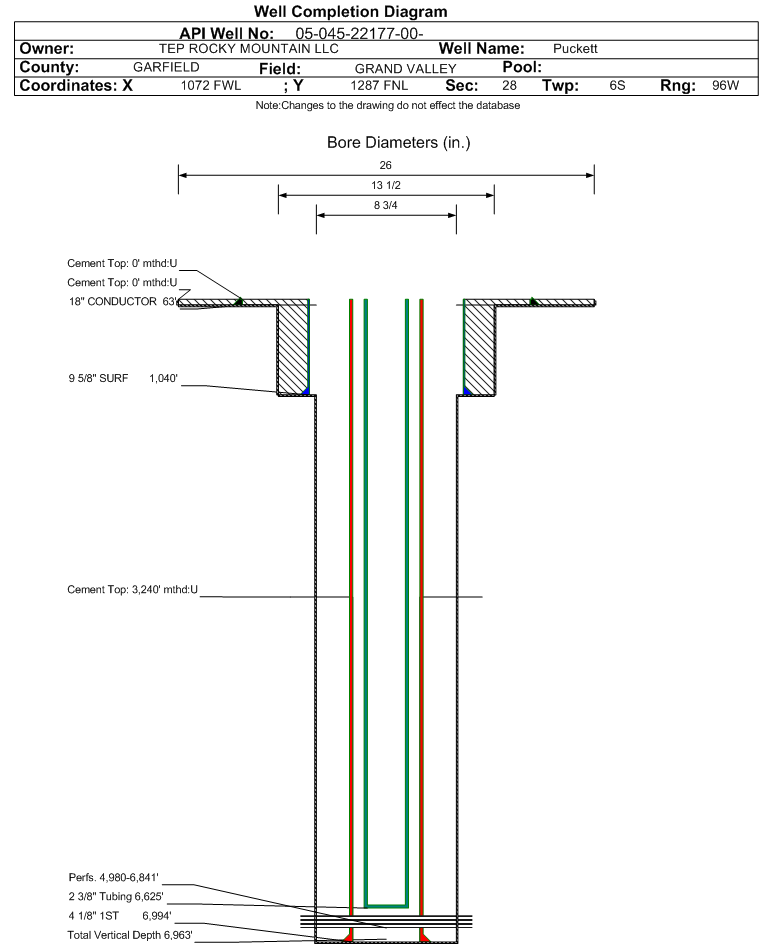

| Wellbore Completed | | Completion Date: | 1/21/2015 | | Spud Date: | 1/14/2015 | Spud Date Is: | ACTUAL | | Measured TD: | 7017 ft. | Measured PB depth: | 6964 ft. | | True Vertical TD: | 6963 ft. | True Vertical PB depth: | 6910 ft. | | Top PZ Location: | Sec:28 Twp: 6S 96W | Footage: 636 FNL 1344 FWL | | Bottom Hole Location: | Sec:28 Twp: 6S 96W | Footage: 634 FNL 1325 FWL | | Log Types: | CBL/Mud/RPM/Triple Combination on the GM 314-21 API#045-22187 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 24, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1040 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 1040 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.2 in., Top: 0 ft., Depth: 6994 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1085, Top: 3240 ft., Bottom: 6994 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2078 ft. | | | | | MESAVERDE | 3784 ft. | | | | | WILLIAMS FORK | 3784 ft. | | | | | CAMEO | 6396 ft. | | | | | ROLLINS | 6877 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 5/31/2015 Interval Top: 4980 ft. Interval Bottom: 6841 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/10/2015 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/7/2015 | Treatment End Date: | 4/14/2015 | | Treatment Summary: | 1192400 #40/70 Sand; 32390 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on comingled volumes.
| | Total fluid used in treatment (bbls): | 32390 | Max pressure during treatment (psi): | 8356 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 8 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.67 | | Recycled water used in treatment (bbls): | 32390 | Total flowback volume recovered (bbls): | 11112 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1192400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6625 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/31/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1074 | | CALC_MCF_GAS | 1440 | | CASING_PRESS | 1388 | | MCF_GAS | 1440 | | TUBING_PRESS | 1189 |
| | Perforation Data: | | Interval Top: | 4980 ft. | # Of Holes: | 186 | | Interval Bottom: | 6841 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 48 |
| Total Gas Produced (MCF) | 28362 |
| GOR | 590875 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.527 |
| Average MCFE per Day | 78.434 |
| Federal Financial Assurance | i | Y |
|
|
