Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2016 Measured TD: 13797 ft. Vertical TD: 13764 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/5/2018 | | Proposed Top PZ Location: | Sec:16 Twp: 6S 94W | Footage: 987 FSL 1707 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 94W | Footage: 953 FSL 1702 FWL | | Proposed Depth/Form: | 13763 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MNCS , Formation: MANCOS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 51, Top: 0 ft., Bottom: 120 ft. | | Casing: | String Type: SURF, Hole Size: 18 in., Size: 13.375 in., Top: 0 ft., Depth: 1432 ft., Weight: 68 , Citings Type: PLANNED | | Cement: | Sacks: 580, Top: 0 ft., Bottom: 1432 ft. | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 8952 ft., Weight: 53.5 , Citings Type: PLANNED | | Cement: | Sacks: 1320, Top: 6338 ft., Bottom: 8952 ft. | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5000 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 1212, Top: 1686 ft., Bottom: 5000 ft. | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13763 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 1070, Top: 8060 ft., Bottom: 13763 ft. |
| | |

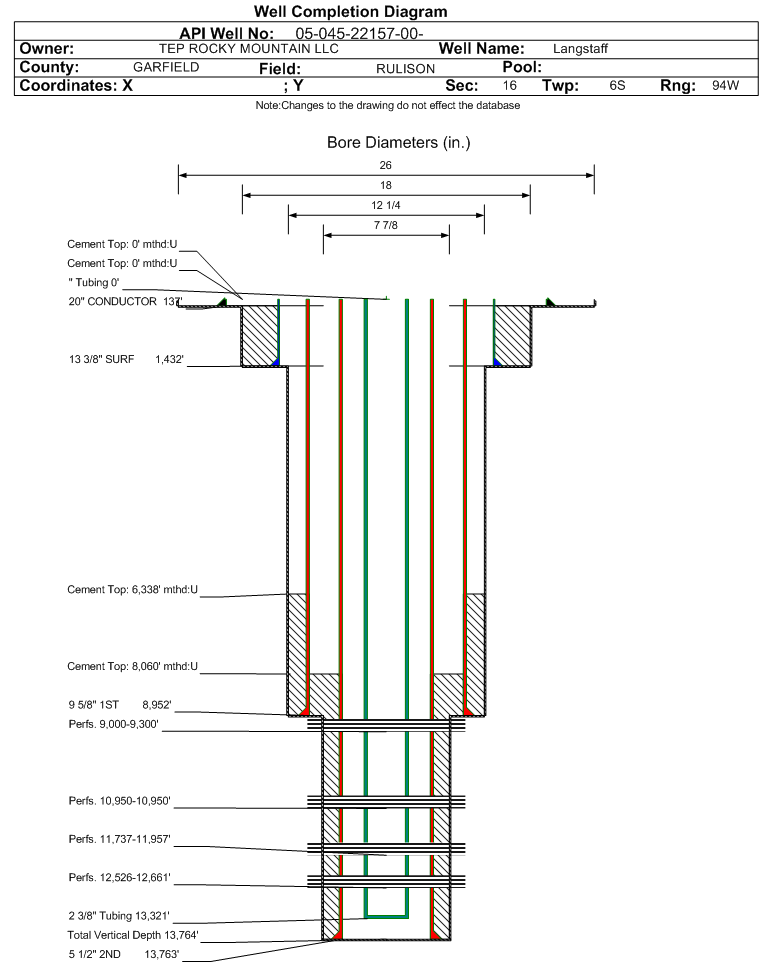

| Wellbore Completed | | Completion Date: | 12/17/2013 | | Spud Date: | 11/5/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 13797 ft. | Measured PB depth: | 13714 ft. | | True Vertical TD: | 13764 ft. | True Vertical PB depth: | 13681 ft. | | Top PZ Location: | Sec:16 Twp: 6S 94W | Footage: 987 FSL 1707 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 94W | Footage: 953 FSL 1702 FWL | | Log Types: | SP GR HDIL ZDL CN CBL MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 137 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 51, Top: 0 ft., Bottom: 137 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 18 in., Size: 13.375 in., Top: 0 ft., Depth: 1432 ft., Weight: 68 , Citings Type: ACTUAL | | Cement: | Sacks: 580, Top: 0 ft., Bottom: 1432 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 8952 ft., Weight: 53.5 , Citings Type: ACTUAL | | Cement: | Sacks: 1320, Top: 6338 ft., Bottom: 8952 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 13763 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1070, Top: 8060 ft., Bottom: 13763 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 1686 ft., Depth: 5000 ft., Bottom: 5000 ft., Sacks: 1212, Method: DV TOOL | | Additional Cement: | String Type: 1ST , Top: 1686 ft., Depth: 5000 ft., Bottom: 5000 ft., Sacks: 1212, Method: DV TOOL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1958 ft. | | N | | | MESAVERDE | 4465 ft. | | N | | | CAMEO | 7298 ft. | | N | | | ROLLINS | 8187 ft. | | N | | | COZZETTE | 8534 ft. | | N | | | CORCORAN | 8889 ft. | | N | | | SEGO | 8974 ft. | | N | | | CASTLEGATE | 10950 ft. | | | | | MANCOS | 11305 ft. | | N | | | NIOBRARA | 12481 ft. | | N | |
Formation NBRR Formation Classification: OG Status: AB - 2/2/2016 Interval Top: 12526 ft. Interval Bottom: 12661 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/16/2014 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/31/2014 | Treatment End Date: | 7/31/2014 | | Treatment Summary: | 3877 Gals 10% HCL; 13239 BBLs Slickwater; 176990 #40/70 Sand; 95010 100/Mesh; (summary)
| | Total fluid used in treatment (bbls): | 13331 | Max pressure during treatment (psi): | 10839 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 92 | Min frac gradient (psi/ft): | 1.03 | | Recycled water used in treatment (bbls): | 13239 | Total flowback volume recovered (bbls): | 1854 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 272000 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/13/2014 | Treatment End Date: | 2/13/2014 | | Treatment Summary: | 3990 Gals 10% HCL; 13651 BBLs Slickwater; 86382 Mesh/100; 242605 40/70 Sand; (summary) | | Total fluid used in treatment (bbls): | 13746 | Max pressure during treatment (psi): | 9183 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 95 | Min frac gradient (psi/ft): | 1.03 | | Recycled water used in treatment (bbls): | 13651 | Total flowback volume recovered (bbls): | 1854 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 328987 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/13/2014 | Treatment End Date: | 1/13/2014 | | Treatment Summary: | 6015 Gals 10% HCL; 12752 BBLs Slickwater; 72818 100/Mesh; 202082 40/70 Sand; (Summary) | | Total fluid used in treatment (bbls): | 12895 | Max pressure during treatment (psi): | 10487 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 143 | Min frac gradient (psi/ft): | 1.03 | | Recycled water used in treatment (bbls): | 12752 | Total flowback volume recovered (bbls): | 1854 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 274900 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 13321 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/31/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 996 | | CALC_MCF_GAS | 240 | | CASING_PRESS | 1260 | | MCF_GAS | 240 | | TUBING_PRESS | 867 |
| | Perforation Data: | | Interval Top: | 12526 ft. | # Of Holes: | 30 | | Interval Bottom: | 12661 ft. | Hole Size: | 0.35 in. |
|
Formation MNCS Formation Classification: OG Status: SI - 7/1/2025 Interval Top: 11737 ft. Interval Bottom: 11957 ft.| Completed Information for Formation MANCOS | | 1st Production Date: | 11/6/2014 | Choke Size: | | | Formation Name: | MANCOS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/16/2014 | Treatment End Date: | 12/16/2014 | | Treatment Summary: | 4000 Gals 15% HCL; 11641 BBLs Slickwater; 199082 #40/70 Sand: 89818 100/Mesh; (summary)
This is a subsequent completion of the Mancos formation. | | Total fluid used in treatment (bbls): | 11736 | Max pressure during treatment (psi): | 8844 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 95 | Min frac gradient (psi/ft): | 1.03 | | Recycled water used in treatment (bbls): | 11641 | Total flowback volume recovered (bbls): | 2011 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 288900 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/6/2014 | Treatment End Date: | 11/6/2014 | | Treatment Summary: | 4000 Gals 10% HCL; 12007 BBLs Slickwater; 90260 Mesh/100; 198300 40/70 Sand; (summary) | | Total fluid used in treatment (bbls): | 12102 | Max pressure during treatment (psi): | 10990 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 95 | Min frac gradient (psi/ft): | 1.03 | | Recycled water used in treatment (bbls): | 12007 | Total flowback volume recovered (bbls): | 2001 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 288560 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 13321 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/17/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 977 | | CALC_MCF_GAS | 739 | | CASING_PRESS | 2710 | | MCF_GAS | 739 | | TUBING_PRESS | 2221 |
| | Perforation Data: | | Interval Top: | 11737 ft. | # Of Holes: | 24 | | Interval Bottom: | 11957 ft. | Hole Size: | 0.35 in. |
|
Formation CSLGT Formation Classification: OG Status: AB - 9/15/2015 Interval Top: 10950 ft. Interval Bottom: 10950 ft.| Completed Information for Formation CASTLEGATE | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CASTLEGATE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/21/2015 | Treatment End Date: | 8/21/2015 | | Treatment Summary: | 111 BBLS Slickwater; (summary) This formation was a DFIT formation.
This formation never produced. | | Total fluid used in treatment (bbls): | 111 | Max pressure during treatment (psi): | 13951 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 1.03 | | Recycled water used in treatment (bbls): | 111 | Total flowback volume recovered (bbls): | 5521 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CSLGT. |
| | Perforation Data: | | Interval Top: | 10950 ft. | # Of Holes: | 6 | | Interval Bottom: | 10950 ft. | Hole Size: | 0.35 in. |
|
Formation SEGO Formation Classification: OG Status: PR - 7/1/2016 Interval Top: 9000 ft. Interval Bottom: 9300 ft.| Completed Information for Formation SEGO | | 1st Production Date: | 9/24/2015 | Choke Size: | | | Formation Name: | SEGO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/24/2015 | Treatment End Date: | 9/24/2015 | | Treatment Summary: | 1000 Gals 15% HCL; 10603 BBLS Slickwater; 310327 100/Mesh; 75265 #40/70 Sand; | | Total fluid used in treatment (bbls): | 10627 | Max pressure during treatment (psi): | 4973 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | 24 | Min frac gradient (psi/ft): | 1.03 | | Recycled water used in treatment (bbls): | 10603 | Total flowback volume recovered (bbls): | 3244 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 385592 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/14/2015 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 996 | | CALC_MCF_GAS | 100 | | CASING_PRESS | 2395 | | MCF_GAS | 100 | | TUBING_PRESS | 734 |
| | Perforation Data: | | Interval Top: | 9000 ft. | # Of Holes: | 20 | | Interval Bottom: | 9300 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 7 |
| Total Gas Produced (MCF) | 4114 |
| GOR | 587714 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.955 |
| Average MCFE per Day | 11.378 |
| Federal Financial Assurance | i | |
|
|
