Wellbore #00 Wellbore Classification: GW Status: PR - 6/10/2014 Measured TD: 7570 ft. Vertical TD: 7522 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/10/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/14/2015 | | Proposed Top PZ Location: | Sec:2 Twp: 7S 95W | Footage: 1529 FSL 1965 FWL | | Bottom Hole Location: | Sec:2 Twp: 7S 95W | Footage: 1494 FSL 1918 FWL | | Proposed Depth/Form: | 7562 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-46 , Unit Acreage: 320, Drill Unit: Sec 2:W/2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 856 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 856 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7562 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 867, Top: 3903 ft., Bottom: 7562 ft. |
| | |

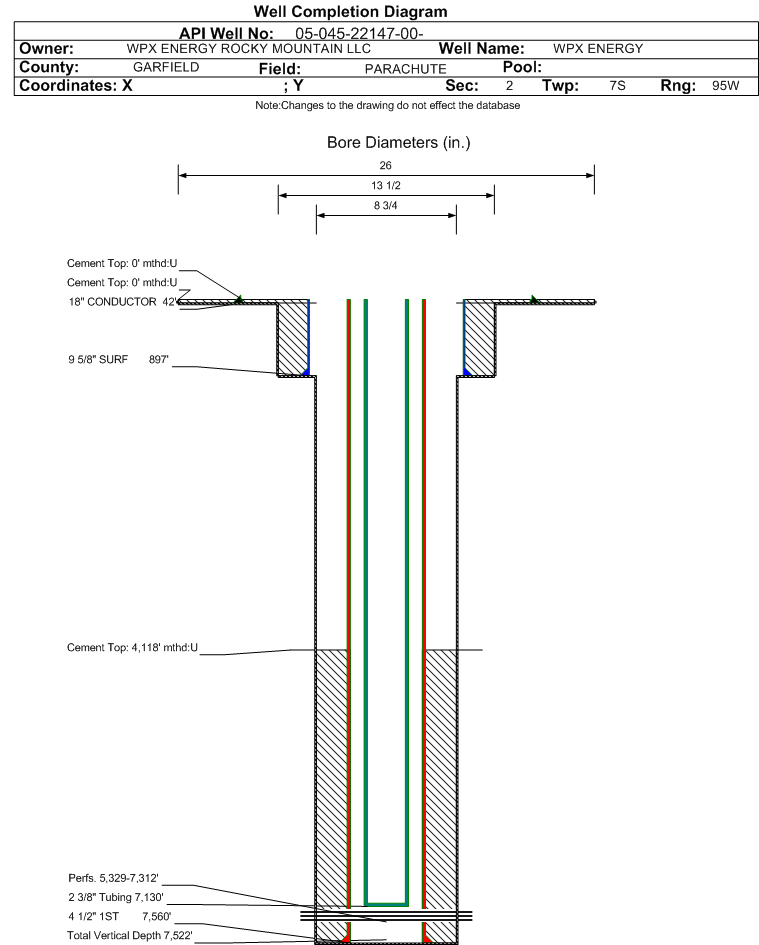

| Wellbore Completed | | Completion Date: | 3/16/2014 | | Spud Date: | 3/8/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 7570 ft. | Measured PB depth: | 7528 ft. | | True Vertical TD: | 7522 ft. | True Vertical PB depth: | 7480 ft. | | Top PZ Location: | Sec:2 Twp: 7S 95W | Footage: 1529 FSL 1965 FWL | | Bottom Hole Location: | Sec:2 Twp: 7S 95W | Footage: 1494 FSL 1918 FWL | | Log Types: | SP/GR/HDIL/ZDL/CN/MUD and CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 897 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 897 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7560 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1375, Top: 4118 ft., Bottom: 7560 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1987 ft. | | | | | MESAVERDE | 4077 ft. | | | | | CAMEO | 6469 ft. | | | | | ROLLINS | 7397 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 10/1/2014 Interval Top: 5329 ft. Interval Bottom: 7312 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/3/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/1/2014 | Treatment End Date: | 4/7/2014 | | Treatment Summary: | 1074800# 40/70 Sand; 29915 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on commingled volumes.
| | Total fluid used in treatment (bbls): | 29915 | Max pressure during treatment (psi): | 6270 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.79 | | Recycled water used in treatment (bbls): | 29915 | Total flowback volume recovered (bbls): | 12889 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1074800 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7130 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/31/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1043 | | CALC_MCF_GAS | 740 | | MCF_GAS | 740 |
| | Perforation Data: | | Interval Top: | 5329 ft. | # Of Holes: | 145 | | Interval Bottom: | 7312 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 38 |
| Total Gas Produced (MCF) | 28221 |
| GOR | 742657 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.439 |
| Average MCFE per Day | 77.933 |
| Federal Financial Assurance | i | |
|
|
