Wellbore #00 Wellbore Classification: GW Status: PR - 8/7/2014 Measured TD: 10088 ft. Vertical TD: 8973 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/7/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 4/28/2015 | | Proposed Top PZ Location: | Sec:16 Twp: 6S 95W | Footage: 1030 FSL 2326 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 95W | Footage: 1030 FSL 2326 FWL | | Proposed Depth/Form: | 10026 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-40 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1171 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 308, Top: 0 ft., Bottom: 1171 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10026 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 914, Top: 6098 ft., Bottom: 10026 ft. |
| | |

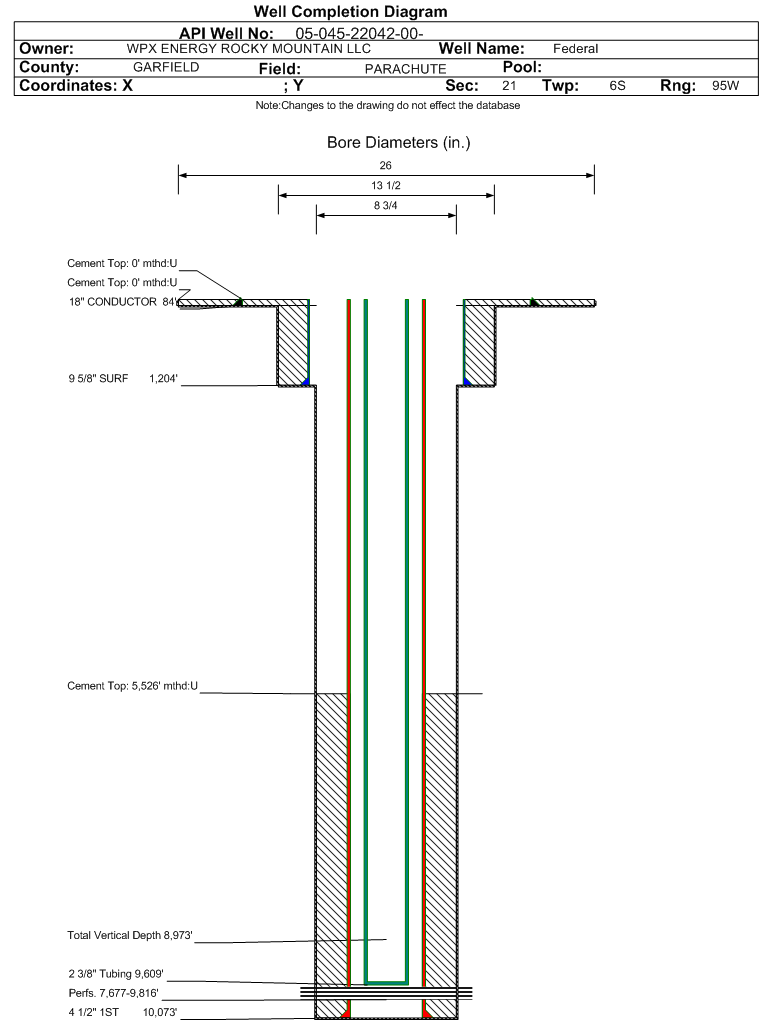

| Wellbore Completed | | Completion Date: | 5/11/2014 | | Spud Date: | 4/29/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 10088 ft. | Measured PB depth: | 9968 ft. | | True Vertical TD: | 8973 ft. | True Vertical PB depth: | 8853 ft. | | Top PZ Location: | Sec:16 Twp: 6S 95W | Footage: 948 FSL 2309 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 95W | Footage: 1023 FSL 2340 FWL | | Log Types: | CBL, Mud, and Reservoir Performance Monitor (RPM) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 84 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 84 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1204 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 315, Top: 0 ft., Bottom: 1204 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10073 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1075, Top: 5526 ft., Bottom: 10073 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3602 ft. | | | | | MESAVERDE | 6320 ft. | | | | | CAMEO | 9056 ft. | | | | | ROLLINS | 9875 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 7/12/2014 Interval Top: 7677 ft. Interval Bottom: 9816 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/10/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 6/2/2014 | Treatment End Date: | 6/8/2014 | | Treatment Summary: | 1208100# 40/70 Sand; 32934 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on commingled volumes.
| | Total fluid used in treatment (bbls): | 32934 | Max pressure during treatment (psi): | 6070 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.69 | | Recycled water used in treatment (bbls): | 32934 | Total flowback volume recovered (bbls): | 17683 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1208100 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9609 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/12/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1100 | | CALC_MCF_GAS | 704 | | CASING_PRESS | 1586 | | MCF_GAS | 704 | | TUBING_PRESS | 984 |
| | Perforation Data: | | Interval Top: | 7677 ft. | # Of Holes: | 111 | | Interval Bottom: | 9816 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 91 |
| Total Gas Produced (MCF) | 32201 |
| GOR | 353857 |
| GOR Determination | MCFE |
| Average BOE per Day | 15.462 |
| Average MCFE per Day | 89.674 |
| Federal Financial Assurance | i | Y |
|
|
