Wellbore #00 Wellbore Classification: GW Status: PR - 3/30/2014 Measured TD: 10135 ft. Vertical TD: 8903 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/30/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 4/28/2015 | | Proposed Top PZ Location: | Sec:21 Twp: 6S 95W | Footage: 954 FNL 249 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 954 FNL 249 FEL | | Proposed Depth/Form: | 10112 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1568 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 406, Top: 0 ft., Bottom: 1568 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10112 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 907, Top: 6222 ft., Bottom: 10112 ft. |
| | |
| Wellbore Completed | | Completion Date: | 1/1/2014 | | Spud Date: | 12/20/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 10135 ft. | Measured PB depth: | 10064 ft. | | True Vertical TD: | 8903 ft. | True Vertical PB depth: | 8832 ft. | | Top PZ Location: | Sec:21 Twp: 6S 95W | Footage: 1000 FNL 313 FEL | | Bottom Hole Location: | Sec:21 Twp: 6S 95W | Footage: 979 FNL 245 FEL | | Log Types: | CBL, Mud, and Reservoir Performance Monitor (RPM)

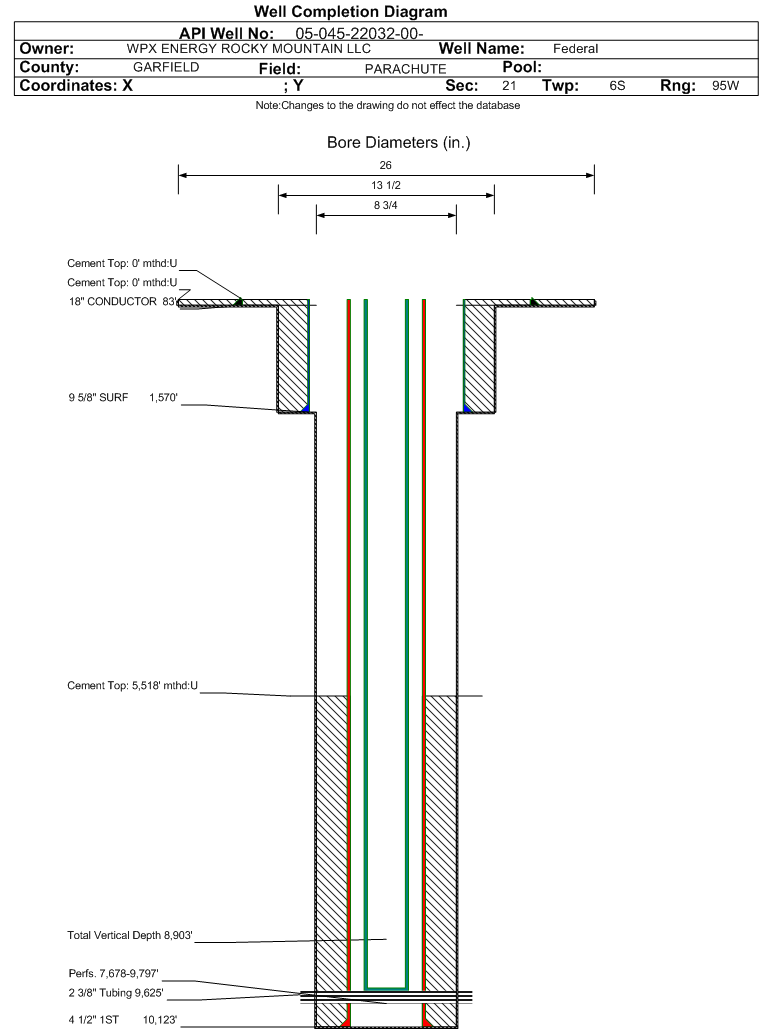

| | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 83 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 83 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1570 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1570 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10123 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1005, Top: 5518 ft., Bottom: 10123 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3650 ft. | | | | | MESAVERDE | 6382 ft. | | | | | CAMEO | 9237 ft. | | | | | ROLLINS | 9987 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 3/30/2014 Interval Top: 7678 ft. Interval Bottom: 9797 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/27/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 2/27/2014 | Treatment End Date: | 3/3/2014 | | Treatment Summary: | 1273900# 40/70 Sand; 56744 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on commingled volumes.
| | Total fluid used in treatment (bbls): | 56744 | Max pressure during treatment (psi): | 4510 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.67 | | Recycled water used in treatment (bbls): | 56744 | Total flowback volume recovered (bbls): | 26354 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1273900 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9625 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/30/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1046 | | CALC_MCF_GAS | 797 | | CASING_PRESS | 2294 | | MCF_GAS | 797 | | TUBING_PRESS | 1691 |
| | Perforation Data: | | Interval Top: | 7678 ft. | # Of Holes: | 134 | | Interval Bottom: | 9797 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 102 |
| Total Gas Produced (MCF) | 37736 |
| GOR | 369960 |
| GOR Determination | MCFE |
| Average BOE per Day | 18.109 |
| Average MCFE per Day | 105.016 |
| Federal Financial Assurance | i | Y |
|
|
