Wellbore #00 Wellbore Classification: GW Status: PR - 12/10/2014 Measured TD: 5265 ft. Vertical TD: 5108 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/10/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/28/2015 | | Proposed Top PZ Location: | Sec:28 Twp: 7S 96W | Footage: 2192 FNL 150 FEL | | Bottom Hole Location: | Sec:28 Twp: 7S 96W | Footage: 2192 FNL 150 FWL | | Proposed Depth/Form: | 5293 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 963 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 257, Top: 0 ft., Bottom: 963 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 5242 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 699, Top: 2135 ft., Bottom: 5242 ft. |
| | |

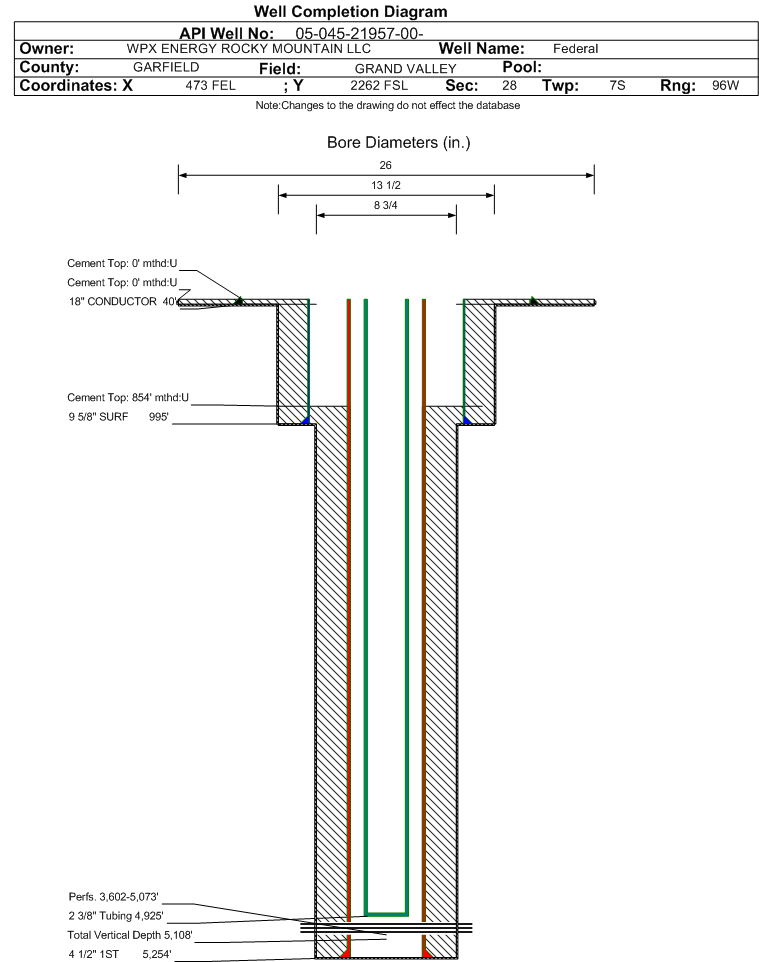

| Wellbore Completed | | Completion Date: | 9/20/2014 | | Spud Date: | 9/15/2014 | Spud Date Is: | ACTUAL | | Measured TD: | 5265 ft. | Measured PB depth: | 5208 ft. | | True Vertical TD: | 5108 ft. | True Vertical PB depth: | 5051 ft. | | Top PZ Location: | Sec:28 Twp: 7S 96W | Footage: 2176 FNL 173 FEL | | Bottom Hole Location: | Sec:28 Twp: 7S 96W | Footage: 2165 FNL 161 FEL | | Log Types: | SP GR HDIL ZDL RPM CN CBL MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 40 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 15, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 995 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 995 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 5254 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 990, Top: 854 ft., Bottom: 5254 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 707 ft. | | N | | | MESAVERDE | 2282 ft. | | N | | | CAMEO | 4693 ft. | | N | | | ROLLINS | 5138 ft. | | N | |
Formation WFCM Formation Classification: OW Status: PR - 12/10/2014 Interval Top: 3602 ft. Interval Bottom: 5073 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/25/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/20/2014 | Treatment End Date: | 10/23/2014 | | Treatment Summary: | 5 STAGES; 797500 # 40/70 Sand: 21069 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 21069 | Max pressure during treatment (psi): | 4143 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 5 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.65 | | Recycled water used in treatment (bbls): | 21069 | Total flowback volume recovered (bbls): | 6444 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 797500 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4925 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/10/2014 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1090 | | CALC_MCF_GAS | 1083 | | CASING_PRESS | 990 | | MCF_GAS | 1083 | | TUBING_PRESS | 806 |
| | Perforation Data: | | Interval Top: | 3602 ft. | # Of Holes: | 112 | | Interval Bottom: | 5073 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 36 |
| Total Gas Produced (MCF) | 24561 |
| GOR | 682250 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.693 |
| Average MCFE per Day | 67.825 |
| Federal Financial Assurance | i | Y |
|
|
