COGIS - WELL SCOUT CARD

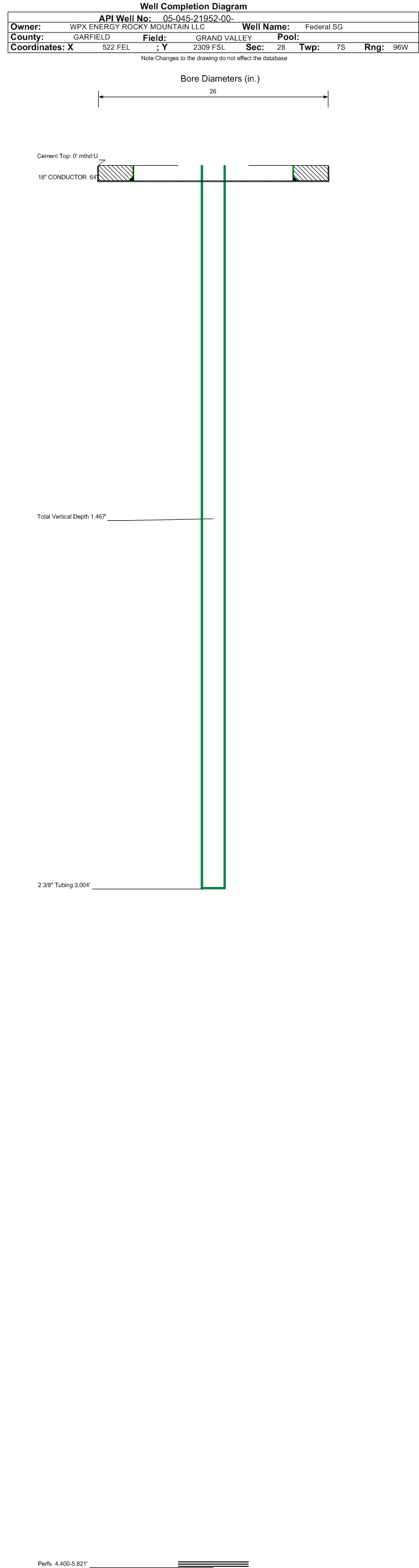

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21952		Well Classification: GW Status: PR - 3/1/2022
Well Name/No:Federal SG #531-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC58673
Facility Status:PRStatus Date3/1/2022
FacilityID:432311LocationID:334978
County:GARFIELD #045Location:NESE 28 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5121 ft.
Basin:PICEANCE BASIN
Planned Location:2309FSL  522 FELLat/Long: 39.407522 / -108.107175Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.407522 / -108.107174Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #01
Start Date: 11/29/2014
End Date: 12/17/2014
Reported: 2/2/2015
Days to report: 47
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 1/10/2015             Measured TD: 1760 ft.    Vertical TD: 1467 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 1/10/2015
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:3/28/2015
Proposed Top PZ Location:Sec:28 Twp: 7S 96W Footage: 1096 FNL  1893 FEL
Bottom Hole Location:Sec:28 Twp: 7S 96W Footage: 1096 FNL  1893 FEL
Proposed Depth/Form:6063 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48# , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1744 ft., Weight: 32.3# , Citings Type: PLANNED
Cement:Sacks: 450, Top: 0 ft., Bottom: 1744 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6015 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 747, Top: 2655 ft., Bottom: 6015 ft.
Wellbore Completed
Completion Date:11/2/2014
Spud Date:10/29/2014Spud Date Is:ACTUAL
Measured TD:1760 ft.Measured PB depth:1210 ft.
True Vertical TD:1467 ft.True Vertical PB depth:1132 ft.
Bottom Hole Location:Sec:28 Twp: 7S 96WFootage: 2453 FNL  963 FEL
Log Types:NO LOGS RUN WELL WAS SIDETRACKED
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 64 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 64 ft., Determination Method: VISU
Additional Cement:String Type: OPEN HOLE , Top: 1210 ft., Depth: 1710 ft., Bottom: 1710 ft., Sacks: 502, Method:
  No formation data to display.

Sidetrack #01             Wellbore Classification: GW             Status: PR - 3/1/2022             Measured TD: 6080 ft.    Vertical TD: 5180 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: GW        PR - 3/1/2022
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:11/3/2016
Proposed Top PZ Location:Sec:28 Twp: 7S 96W Footage: 1096 FNL  1893 FEL
Bottom Hole Location:Sec:28 Twp: 7S 96W Footage: 1096 FNL  1893 FEL
Proposed Depth/Form:6040 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 48# , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1730 ft., Weight: 32.3# , Citings Type: PLANNED
Cement:Sacks: 446, Top: 0 ft., Bottom: 1730 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6040 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 747, Top: 2652 ft., Bottom: 6040 ft.
Wellbore Completed
Completion Date:11/8/2014
Spud Date:10/29/2014Spud Date Is:ACTUAL
Measured TD:6080 ft.Measured PB depth:6031 ft.
True Vertical TD:5180 ft.True Vertical PB depth:5131 ft.
Top PZ Location:Sec:28 Twp: 7S 96WFootage: 1138 FNL  1926 FEL
Bottom Hole Location:Sec:28 Twp: 7S 96WFootage: 1073 FNL  1939 FEL
Log Types:RPM CBL MUDLOGS
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 64 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 64 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1746 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 430, Top: 0 ft., Bottom: 1746 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6063 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 985, Top: 1320 ft., Bottom: 6063 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G788 ft.N
MESAVERDE2826 ft.N
CAMEO5484 ft.N
ROLLINS5950 ft.N

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/1/2022                  Interval Top: 4400 ft.    Interval Bottom: 5821 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/29/2014Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:11/29/2014Treatment End Date:12/17/2014
Treatment Summary:5 STAGES; 766400 # 40/70 Sand: 29668 Bbls Slickwater (Summary)
Total fluid used in treatment (bbls):29668Max pressure during treatment (psi):5873
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:5
Total acid used in treatment (bbls):Min frac gradient (psi/ft):0.70
Recycled water used in treatment (bbls):29668Total flowback volume recovered (bbls):7270
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):766400Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:3004 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/10/2015Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1104
CALC_MCF_GAS 1268
CASING_PRESS 1311
MCF_GAS 1268
TUBING_PRESS 977
Perforation Data:
Interval Top:4400 ft.# Of Holes:112
Interval Bottom:5821 ft.Hole Size:0.35 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
09/2024 - 08/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)2446
GOR
GOR DeterminationMCFE
Average BOE per Day1.157
Average MCFE per Day6.706

 Federal Financial Assurance  i Y

 Tribal Well  i No
