COGIS - WELL SCOUT CARD

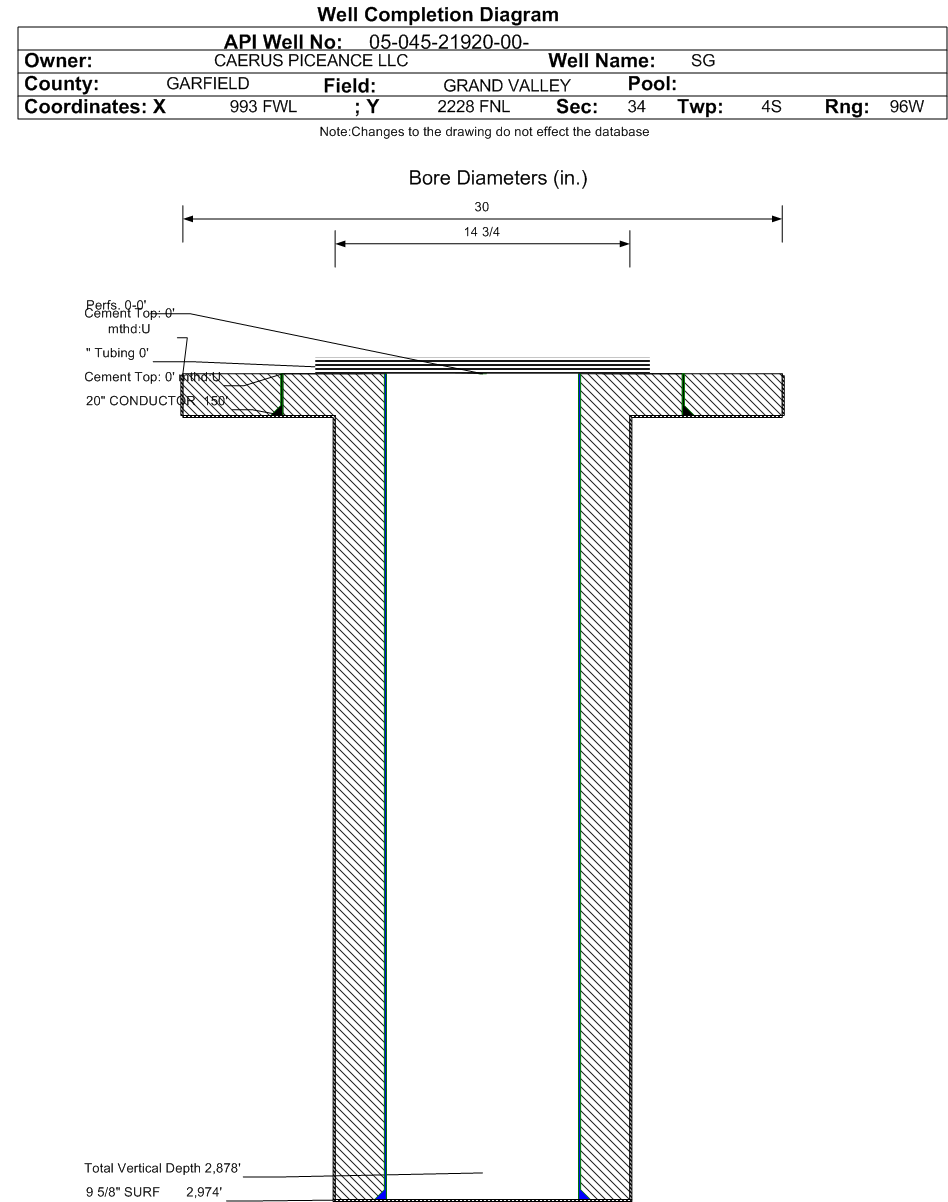

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21920		Well Classification: GW Status: PA - 10/29/2021
Well Name/No:SG #8508E-33 E34496
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC65556
Facility Status:PAStatus Date10/29/2021
FacilityID:431965LocationID:335928
County:GARFIELD #045Location:SWNW 34 4S96W 6
Field:GRAND VALLEY - #31290Elevation:8324 ft.
Basin:PICEANCE BASIN
Planned Location:2228FNL  993 FWLLat/Long: 39.659950 / -108.160604Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.659949 / -108.160605Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/29/2021             Measured TD: 11576 ft.    Vertical TD: 11258 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/29/2021
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/21/2015
Proposed Top PZ Location:Sec:33 Twp: 4S 96W Footage: 2679 FSL  1115 FEL
Bottom Hole Location:Sec:33 Twp: 4S 96W Footage: 2679 FSL  1115 FEL
Proposed Depth/Form:12656 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:BIG JIMMY UNIT Unit Number:COC74105X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 150 ft., Weight: 52.8# , Citings Type: PLANNED
Cement:Sacks: 125, Top: 0 ft., Bottom: 150 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2974 ft., Weight: 36# , Citings Type: PLANNED
Cement:Sacks: 1147, Top: 0 ft., Bottom: 2974 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11556 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 1008, Top: 5877 ft., Bottom: 11556 ft.
Wellbore Completed
Completion Date:11/23/2018
Spud Date:9/13/2013Spud Date Is:ACTUAL
Measured TD:11576 ft.Measured PB depth:11516 ft.
True Vertical TD:11258 ft.True Vertical PB depth:11198 ft.
Top PZ Location:Sec:33 Twp: 4S 96WFootage: 2729 FSL  1015 FEL
Bottom Hole Location:Sec:33 Twp: 4S 96WFootage: 2638 FSL  1146 FEL
Log Types:No Logs Ran
Log Types:CBL, Pulsed Neutron, (Triple Combo on 045-21909).
Log Types:CBL, PNL
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 150 ft., Weight: 52.78# , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: 150 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2974 ft., Weight: 36# , Citings Type: ACTUAL
Cement:Sacks: 1147, Top: 0 ft., Bottom: 2974 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11576 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 1019, Top: 7490 ft., Bottom: 11576 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 7686 ft., Depth: 7795 ft., Bottom: 7830 ft., Sacks: 178, Method: RETAINER
Additional Cement:String Type: 1ST , Top: 7492 ft., Depth: 7620 ft., Bottom: 7660 ft., Sacks: 75, Method: RETAINER
FormationInterval TopLog BottomCoredDSTs
GREEN RIVER0 ft.NN
WASATCH3165 ft.NN
WASATCH G5583 ft.NN
FORT UNION5975 ft.NN
OHIO CREEK7868 ft.NN
WILLIAMS FORK8151 ft.NN
CAMEO10738 ft.NN
ROLLINS11429 ft.NN

Formation WFOCCM                 Formation Classification:  SI                 Status:  AB - 10/29/2021

 Completed Information for Formation WILLIAMS FORK-OHIO CREEK-CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK-OHIO CREEK-CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFOCCM.
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/29/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
