COGIS - WELL SCOUT CARD

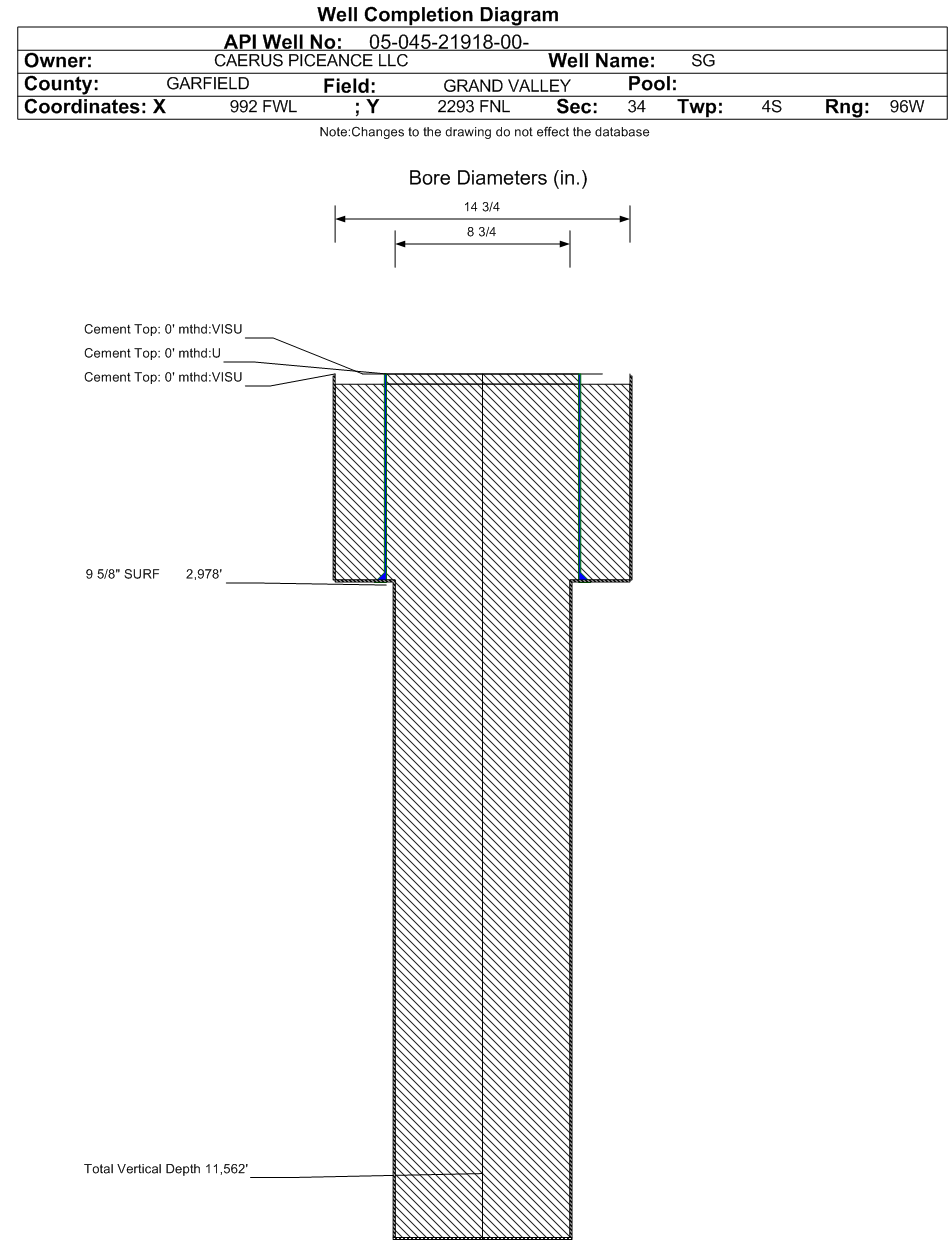

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21918		Well Classification: DA Status: PA - 1/27/2019
Well Name/No:SG #8511E-34 E34496
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CAERUS PICEANCE LLC - 10456
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC69557
Facility Status:PAStatus Date1/27/2019
FacilityID:431963LocationID:335928
County:GARFIELD #045Location:SWNW 34 4S96W 6
Field:GRAND VALLEY - #31290Elevation:8324 ft.
Basin:PICEANCE BASIN
Planned Location:2293FNL  992 FWLLat/Long: 39.659795 / -108.160602Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.659772 / -108.160606Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: AB - 1/27/2019             Measured TD: 12488 ft.    Vertical TD: 11562 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        AB - 1/27/2019
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/21/2015
Proposed Top PZ Location:Sec:34 Twp: 4S 96W Footage: 1673 FSL  1665 FEL
Bottom Hole Location:Sec:34 Twp: 4S 96W Footage: 1673 FSL  1340 FEL
Proposed Depth/Form:12550 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:BIG JIMMY UNIT Unit Number:COC74105X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 150 ft., Weight: 52.8# , Citings Type: PLANNED
Cement:Sacks: 125, Top: 0 ft., Bottom: 150 ft.
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2978 ft., Weight: 36# , Citings Type: PLANNED
Cement:Sacks: 1144, Top: 0 ft., Bottom: 2978 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 12546 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 1151, Top: 6096 ft., Bottom: 12546 ft.
Wellbore Completed
Completion Date:10/7/2013
Spud Date:10/6/2013Spud Date Is:ACTUAL
Measured TD:12488 ft.Measured PB depth:12488 ft.
True Vertical TD:11562 ft.True Vertical PB depth:11562 ft.
Bottom Hole Location:Sec:34 Twp: 4S 96WFootage: 1680 FSL  1708 FEL
Log Types:
Log Types:No logs. Wellbore P&A.
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 150 ft., Weight: 52.8 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: 150 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2978 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 1144, Top: 0 ft., Bottom: 2978 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 2978 ft., Depth: 12488 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/27/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
