Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2021 Measured TD: 11670 ft. Vertical TD: 11297 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 2/21/2015 | | Proposed Top PZ Location: | Sec:33 Twp: 4S 96W | Footage: 2003 FNL 1302 FEL | | Bottom Hole Location: | Sec:33 Twp: 4S 96W | Footage: 2003 FNL 1302 FEL | | Proposed Depth/Form: | 12664 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | BIG JIMMY UNIT | Unit Number: | COC74105X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: LINE PIPE, Citings Type: PLANNED | | Cement: | Sacks: 176, Top: 0 ft., Bottom: 120 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 782, Top: 0 ft., Bottom: 2500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 12664 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1362, Top: 7709 ft., Bottom: 12664 ft. |
| | |

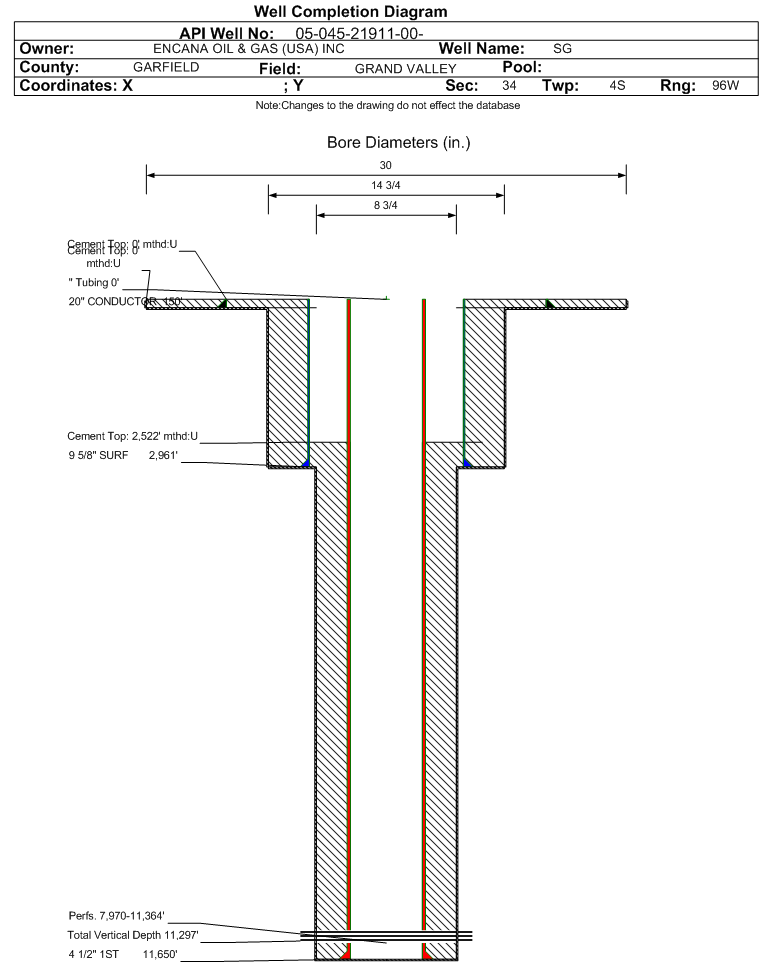

| Wellbore Completed | | Completion Date: | 12/28/2013 | | Spud Date: | 9/19/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 11670 ft. | Measured PB depth: | 11601 ft. | | True Vertical TD: | 11297 ft. | True Vertical PB depth: | 11228 ft. | | Top PZ Location: | Sec:33 Twp: 4S 96W | Footage: 1988 FNL 1273 FEL | | Bottom Hole Location: | Sec:33 Twp: 4S 96W | Footage: 1991 FNL 1305 FEL | | Log Types: | CBL, Mud logs | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 150 ft., Weight: 52.78 , Citings Type: ACTUAL | | Cement: | Sacks: 125, Top: 0 ft., Bottom: 150 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2961 ft., Weight: 36.0 , Citings Type: ACTUAL | | Cement: | Sacks: 1147, Top: 0 ft., Bottom: 2961 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 11650 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 2489, Top: 2522 ft., Bottom: 11650 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 7944 ft. | 11529 ft. | | | | ROLLINS | 11530 ft. | 11670 ft. | | |
Formation WMFK Formation Classification: OW Status: PR - 4/1/2021 Interval Top: 7970 ft. Interval Bottom: 11364 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/30/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 4/19/2014 | Treatment End Date: | 5/3/2014 | | Treatment Summary: | Stage 1 - Stage 13 treated with a total of: 201,922 bbls of Slickwater (BWS). | | Total fluid used in treatment (bbls): | 201922 | Max pressure during treatment (psi): | 2184 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 13 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.53 | | Recycled water used in treatment (bbls): | 201922 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/9/2014 | Test Method: | Flows from well | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2880 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 2880 | | CALC_MCF_GAS | 5628 | | CASING_PRESS | 1294 | | MCF_GAS | 5628 |
| | Perforation Data: | | Interval Top: | 7970 ft. | # Of Holes: | 390 | | Interval Bottom: | 11364 ft. | Hole Size: | 0.32 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 31 |
| Total Gas Produced (MCF) | 17667 |
| GOR | 569903 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.432 |
| Average MCFE per Day | 48.902 |
| Federal Financial Assurance | i | Y |
|
|
