COGIS - WELL SCOUT CARD

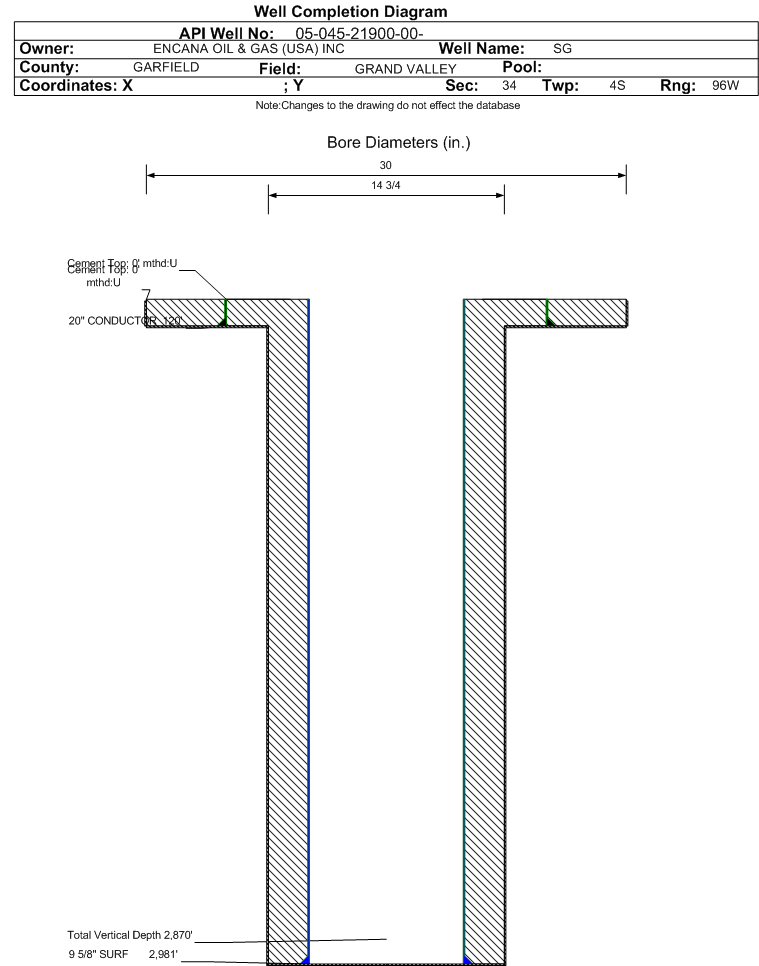

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21900		Well Classification: GW Status: PA - 10/29/2021
Well Name/No:SG #8508F-33 E34496
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC65556
Facility Status:PAStatus Date10/29/2021
FacilityID:431943LocationID:335928
County:GARFIELD #045Location:SWNW 34 4S96W 6
Field:GRAND VALLEY - #31290Elevation:8324 ft.
Basin:PICEANCE BASIN
Planned Location:2236FNL  992 FWLLat/Long: 39.659928 / -108.160608Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.659925 / -108.160610Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/29/2021             Measured TD: 3000 ft.    Vertical TD: 2870 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/29/2021
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/21/2015
Proposed Top PZ Location:Sec:33 Twp: 4S 96W Footage: 2529 FNL  1302 FEL
Bottom Hole Location:Sec:33 Twp: 4S 96W Footage: 2529 FNL  1302 FEL
Proposed Depth/Form:12642 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:BIG JIMMY UNIT Unit Number:COC74105X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 120 ft., Weight: LINE PIPE, Citings Type: PLANNED
Cement:Sacks: 176, Top: 0 ft., Bottom: 120 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2500 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 782, Top: 0 ft., Bottom: 2500 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 12642 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1359, Top: 7672 ft., Bottom: 12642 ft.
Wellbore Completed
Completion Date:9/12/2013
Spud Date:9/11/2013Spud Date Is:ACTUAL
Measured TD:3000 ft.Measured PB depth:2981 ft.
True Vertical TD:2870 ft.True Vertical PB depth:2851 ft.
Bottom Hole Location:Sec:33 Twp: 4S 96WFootage: 2529 FNL  1302 FEL
Log Types:
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 120 ft., Weight: 52.78# , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: 120 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2981 ft., Weight: 36# , Citings Type: ACTUAL
Cement:Sacks: 1197, Top: 1650 ft., Bottom: 2981 ft., Determination Method: CBL
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/29/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
