Wellbore #00 Wellbore Classification: GW Status: PR - 12/9/2013 Measured TD: 8725 ft. Vertical TD: 8444 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/9/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 2/7/2015 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 95W | Footage: 499 FNL 2050 FWL | | Bottom Hole Location: | Sec:27 Twp: 6S 95W | Footage: 499 FNL 2050 FWL | | Proposed Depth/Form: | 8705 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3729 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 941, Top: 0 ft., Bottom: 3729 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8705 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 902, Top: 4841 ft., Bottom: 8705 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/20/2013 | | Spud Date: | 8/8/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 8725 ft. | Measured PB depth: | 8649 ft. | | True Vertical TD: | 8444 ft. | True Vertical PB depth: | 8368 ft. | | Top PZ Location: | Sec:27 Twp: 6S 95W | Footage: 528 FNL 2053 FWL | | Bottom Hole Location: | Sec:27 Twp: 6S 95W | Footage: 515 FNL 2020 FWL | | Log Types: | SP/GR/HDIL/ZDL/CN/MUD and CBL/ MUD AND RESERVOIR PERFORMANCE MONITOR(RPM)

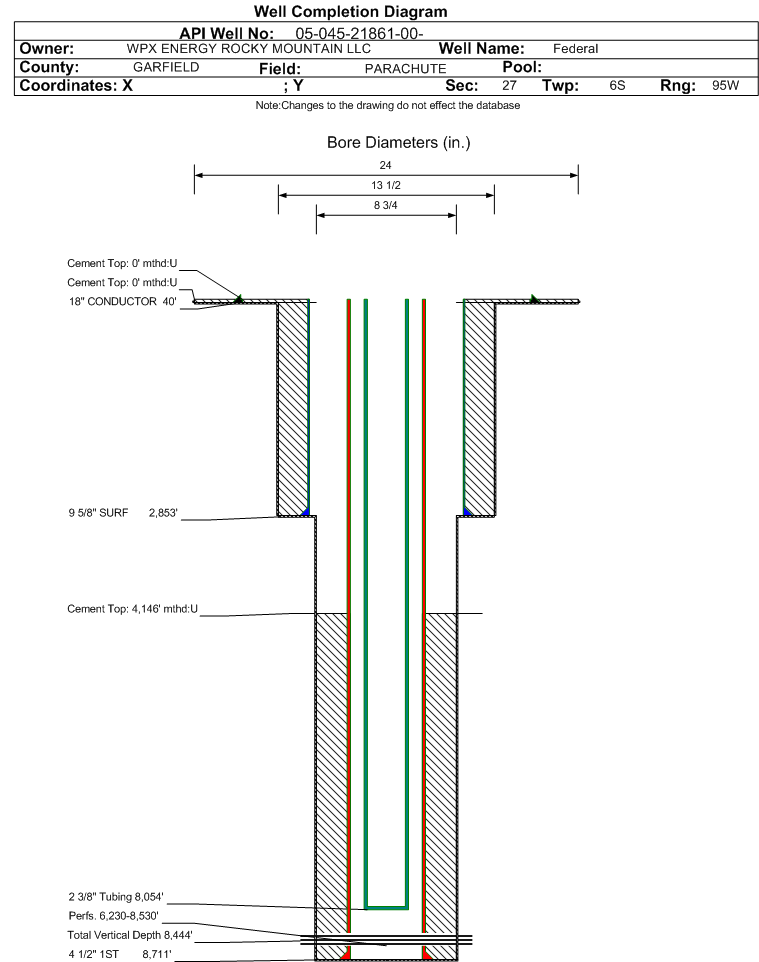

| | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 40 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 23, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2853 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 620, Top: 0 ft., Bottom: 2853 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8711 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 970, Top: 4146 ft., Bottom: 8711 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2725 ft. | | | | | MESAVERDE | 5096 ft. | | | | | CAMEO | 7858 ft. | | | | | ROLLINS | 8605 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 11/16/2013 Interval Top: 6230 ft. Interval Bottom: 8530 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/8/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 10/7/2013 | Treatment End Date: | 10/14/2013 | | Treatment Summary: | 936600# 40/70 Sand; 24930 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on commingled volumes.
| | Total fluid used in treatment (bbls): | 24930 | Max pressure during treatment (psi): | 4573 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.74 | | Recycled water used in treatment (bbls): | 24930 | Total flowback volume recovered (bbls): | 15135 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 936600 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8054 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/16/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1025 | | CALC_MCF_GAS | 1180 | | CASING_PRESS | 2077 | | MCF_GAS | 1180 | | TUBING_PRESS | 1793 |
| | Perforation Data: | | Interval Top: | 6230 ft. | # Of Holes: | 136 | | Interval Bottom: | 8530 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 53 |
| Total Gas Produced (MCF) | 30210 |
| GOR | 570000 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.413 |
| Average MCFE per Day | 83.620 |
| Federal Financial Assurance | i | Y |
|
|
