Wellbore #00 Wellbore Classification: GW Status: PR - 10/3/2013 Measured TD: 7708 ft. Vertical TD: 7513 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/3/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/5/2014 | | Proposed Top PZ Location: | Sec:30 Twp: 7S 92W | Footage: 314 FNL 623 FEL | | Bottom Hole Location: | Sec:30 Twp: 7S 92W | Footage: 314 FNL 623 FEL | | Proposed Depth/Form: | 7736 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | Hunter Mesa | Unit Number: | COC055972X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: PLANNED | | Cement: | Sacks: 90, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 1103 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 417, Top: 0 ft., Bottom: 1103 ft. | | Casing: | String Type: 1ST, Hole Size: 8 in., Size: 4.5 in., Top: 0 ft., Depth: 7736 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 585, Top: 0 ft., Bottom: 7736 ft. |
| | |

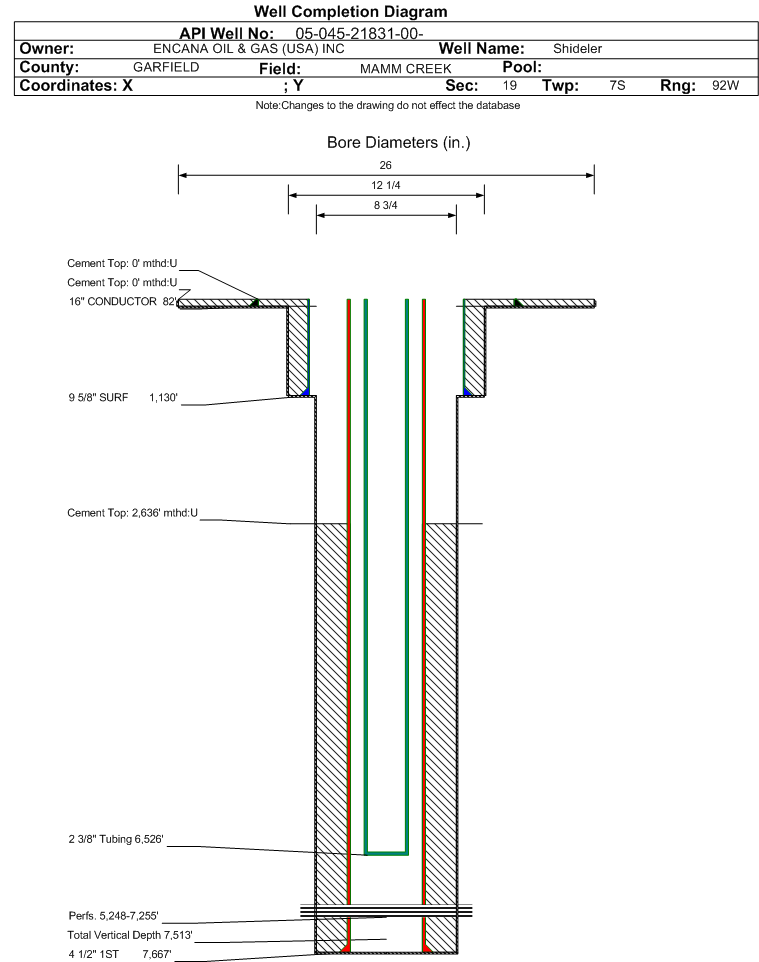

| Wellbore Completed | | Completion Date: | 3/24/2013 | | Spud Date: | 1/22/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 7708 ft. | Measured PB depth: | 7620 ft. | | True Vertical TD: | 7513 ft. | True Vertical PB depth: | 7425 ft. | | Top PZ Location: | Sec:30 Twp: 7S 92W | Footage: 282 FNL 642 FEL | | Bottom Hole Location: | Sec:30 Twp: 7S 92W | Footage: 310 FNL 616 FEL | | Log Types: | RST, CBL, and Mud logs | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 82 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1130 ft., Weight: 36.0 , Citings Type: ACTUAL | | Cement: | Sacks: 421, Top: 0 ft., Bottom: 1130 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7667 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 832, Top: 2636 ft., Bottom: 7667 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 3891 ft. | 4447 ft. | | | | WILLIAMS FORK | 4447 ft. | 7378 ft. | | | | ROLLINS | 7378 ft. | 7708 ft. | | |
Formation WMFK Formation Classification: OW Status: PR - 8/12/2013 Interval Top: 5248 ft. Interval Bottom: 7255 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 8/11/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/4/2013 | Treatment End Date: | 7/17/2013 | | Treatment Summary: | Stage 1 - Stage 7 treated with a total of: 103,143 bbls of Slickwater (BWS). | | Total fluid used in treatment (bbls): | 103143 | Max pressure during treatment (psi): | 831 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.66 | | Recycled water used in treatment (bbls): | 103143 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6526 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/12/2013 | Test Method: | Flows from well | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 674 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 674 | | CALC_MCF_GAS | 675 | | CASING_PRESS | 2250 | | MCF_GAS | 675 | | TUBING_PRESS | 700 |
| | Perforation Data: | | Interval Top: | 5248 ft. | # Of Holes: | 189 | | Interval Bottom: | 7255 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 24314 |
| GOR | 935153 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.557 |
| Average MCFE per Day | 67.033 |
| Federal Financial Assurance | i | Y |
|
|
