Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2017 Measured TD: 8068 ft. Vertical TD: 7844 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2017 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/25/2014 | | Proposed Top PZ Location: | Sec:24 Twp: 6S 93W | Footage: 1551 FNL 2484 FWL | | Bottom Hole Location: | Sec:24 Twp: 6S 93W | Footage: 1551 FNL 2484 FWL | | Proposed Depth/Form: | 8152 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | Grass Mesa | Unit Number: | COC056608X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: Linepipe , Citings Type: PLANNED | | Cement: | Sacks: 80, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1100 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 354, Top: 0 ft., Bottom: 1100 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8152 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 525, Top: 0 ft., Bottom: 8152 ft. |
| | |

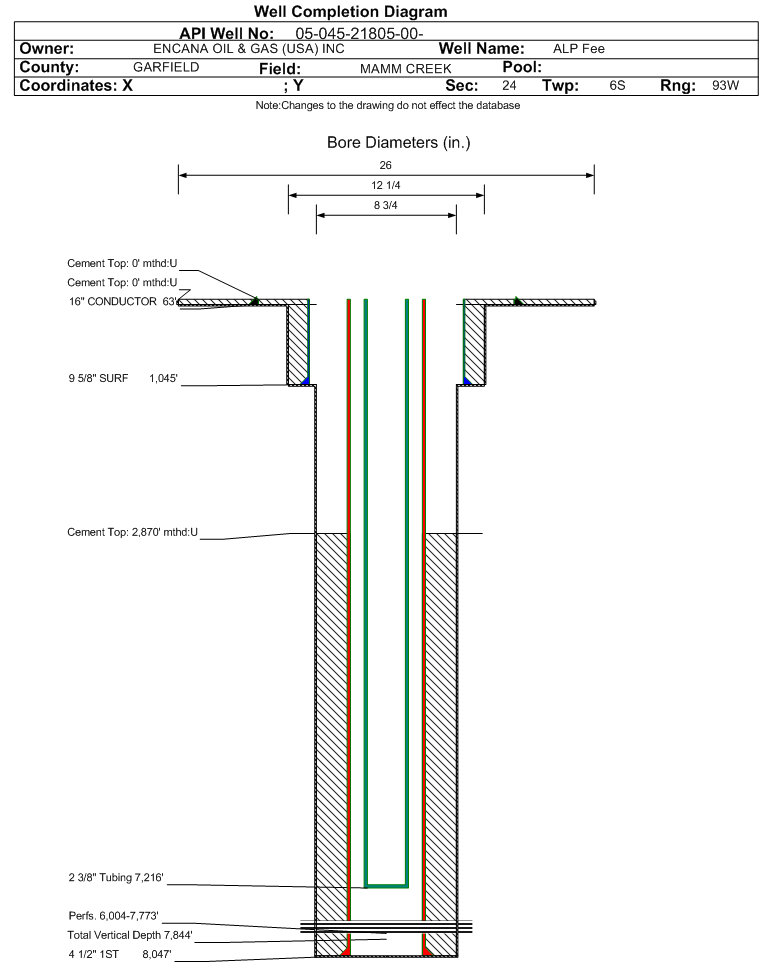

| Wellbore Completed | | Completion Date: | 6/13/2013 | | Spud Date: | 5/5/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 8068 ft. | Measured PB depth: | 7978 ft. | | True Vertical TD: | 7844 ft. | True Vertical PB depth: | 7754 ft. | | Top PZ Location: | Sec:24 Twp: 6S 93W | Footage: 1568 FNL 2488 FWL | | Bottom Hole Location: | Sec:24 Twp: 6S 93W | Footage: 1557 FNL 2484 FWL | | Log Types: | CBL, RST, Temp logs | | Log Types: | CBL, RST, Temperature, Mud logs | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 63 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 114, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1045 ft., Weight: 36.0 , Citings Type: ACTUAL | | Cement: | Sacks: 395, Top: 0 ft., Bottom: 1045 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8047 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 985, Top: 2870 ft., Bottom: 8047 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4957 ft. | 7873 ft. | | | | ROLLINS | 7873 ft. | 8068 ft. | | |
Formation WMFK Formation Classification: GW Status: PR - 10/1/2017 Interval Top: 6004 ft. Interval Bottom: 7773 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/25/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/29/2013 | Treatment End Date: | 12/20/2013 | | Treatment Summary: | Stage 1 - Stage 7 treated with a total of: 97,430 bbls of Slickwater (BWS). | | Total fluid used in treatment (bbls): | 97430 | Max pressure during treatment (psi): | 1416 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.80 | | Recycled water used in treatment (bbls): | 97430 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7216 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/12/2014 | Test Method: | Flows from well | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 159 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 159 | | CALC_MCF_GAS | 590 | | CASING_PRESS | 420 | | MCF_GAS | 590 | | TUBING_PRESS | 860 |
| | Perforation Data: | | Interval Top: | 6004 ft. | # Of Holes: | 189 | | Interval Bottom: | 7773 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 265 |
| Total Gas Produced (MCF) | 16383 |
| GOR | 61822 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.462 |
| Average MCFE per Day | 49.089 |
| Federal Financial Assurance | i | Y |
|
|
