COGIS - WELL SCOUT CARD

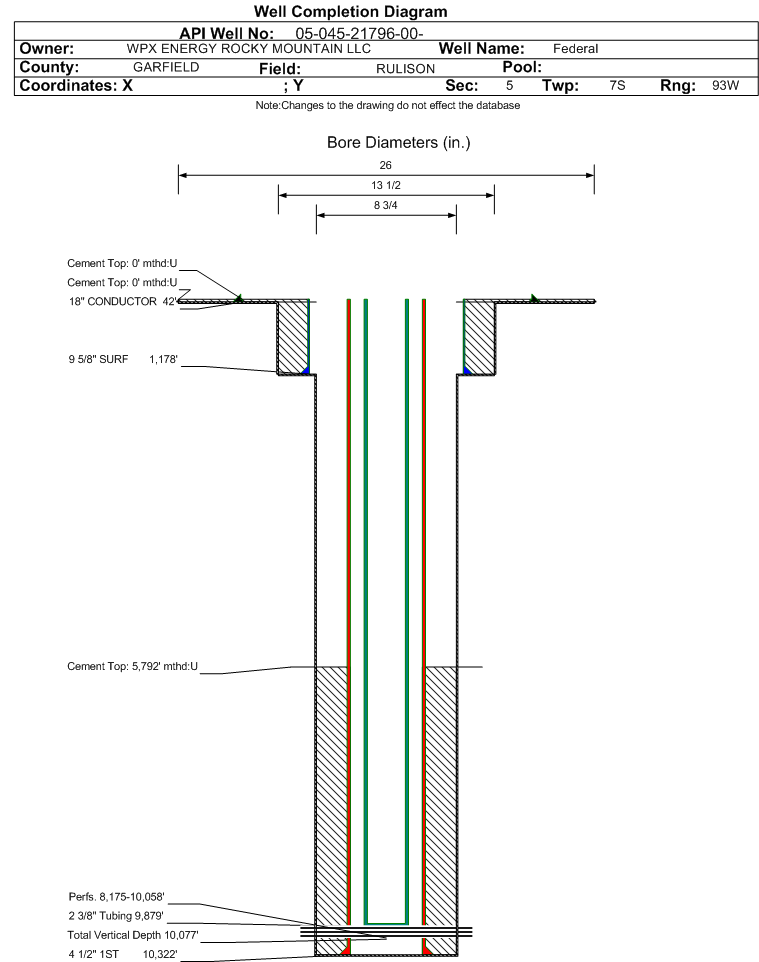

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21796		Well Classification: GW Status: PR - 12/1/2014
Well Name/No:Federal #NER 533-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC41916
Facility Status:PRStatus Date12/1/2014
FacilityID:430868LocationID:383328
County:GARFIELD #045Location:LOT 2 5 7S93W 6
Field:RULISON - #75400Elevation:7602 ft.
Basin:PICEANCE BASIN
Planned Location:125FNL  2585 FWLLat/Long: 39.475016 / -107.798869Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.475016 / -107.798868Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 9/25/2014
End Date: 9/30/2014
Reported: 11/28/2014
Days to report: 59
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2014             Measured TD: 10330 ft.    Vertical TD: 10077 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2014
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:11/25/2014
Proposed Top PZ Location:Sec:32 Twp: 6S 93W Footage: 1427 FSL  1725 FEL
Bottom Hole Location:Sec:32 Twp: 6S 93W Footage: 1427 FSL  1725 FEL
Proposed Depth/Form:10341 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-47 , Unit Acreage: 640, Drill Unit: All
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: 32.3# , Citings Type: PLANNED
Cement:Sacks: 298, Top: 0 ft., Bottom: 1129 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10341 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 991, Top: , Bottom: 10341 ft.
Wellbore Completed
Completion Date:8/8/2014
Spud Date:7/30/2014Spud Date Is:ACTUAL
Measured TD:10330 ft.Measured PB depth:10226 ft.
True Vertical TD:10077 ft.True Vertical PB depth:9973 ft.
Top PZ Location:Sec:32 Twp: 6S 93WFootage: 1457 FSL  1687 FEL
Bottom Hole Location:Sec:32 Twp: 6S 93WFootage: 1417 FSL  1709 FEL
Log Types:RPM CBL MUDLOGS
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1178 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 280, Top: 0 ft., Bottom: 1178 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10322 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1065, Top: 5792 ft., Bottom: 10322 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G3756 ft.N
MESAVERDE6464 ft.N
CAMEO9373 ft.N
ROLLINS10201 ft.N

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 12/1/2014                 Interval Top: 8175 ft.    Interval Bottom: 10058 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/26/2014Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:9/25/2014Treatment End Date:9/25/2014
Treatment Summary:7 STAGES; 1717 Gals 7 ½% HCL; 883500 # 40/70 Sand: 24847 Bbls Slickwater (Summary)
Total fluid used in treatment (bbls):24888Max pressure during treatment (psi):6605
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:7
Total acid used in treatment (bbls):40Min frac gradient (psi/ft):0.64
Recycled water used in treatment (bbls):24847Total flowback volume recovered (bbls):16325
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):883500Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:9879 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/1/2014Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1131
CALC_MCF_GAS 597
CASING_PRESS 1052
MCF_GAS 597
TUBING_PRESS 545
Perforation Data:
Interval Top:8175 ft.# Of Holes:168
Interval Bottom:10058 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)83
Total Gas Produced (MCF)14910
GOR179638
GOR DeterminationMCFE
Average BOE per Day7.273
Average MCFE per Day42.185

 Federal Financial Assurance  i Y

 Tribal Well  i No
