COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21784		Well Classification: GW Status: PR - 11/29/2014
Well Name/No:Federal #NER 34-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC41916
Facility Status:PRStatus Date11/29/2014
FacilityID:430855LocationID:383328
County:GARFIELD #045Location:LOT 2 5 7S93W 6
Field:RULISON - #75400Elevation:7602 ft.
Basin:PICEANCE BASIN
Planned Location:132FNL  2587 FWLLat/Long: 39.474996 / -107.798861Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.474996 / -107.798861Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 9/25/2014
End Date: 9/30/2014
Reported: 11/28/2014
Days to report: 59
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/29/2014             Measured TD: 10240 ft.    Vertical TD: 10074 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/29/2014
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:11/25/2014
Proposed Top PZ Location:Sec:32 Twp: 6S 93W Footage: 1116 FSL  1971 FEL
Bottom Hole Location:Sec:32 Twp: 6S 93W Footage: 1116 FSL  1971 FEL
Proposed Depth/Form:10251 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-47 , Unit Acreage: 640, Drill Unit: All
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1101 ft., Weight: 32.3# , Citings Type: PLANNED
Cement:Sacks: 291, Top: 0 ft., Bottom: 1101 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10251 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 989, Top: , Bottom: 10251 ft.

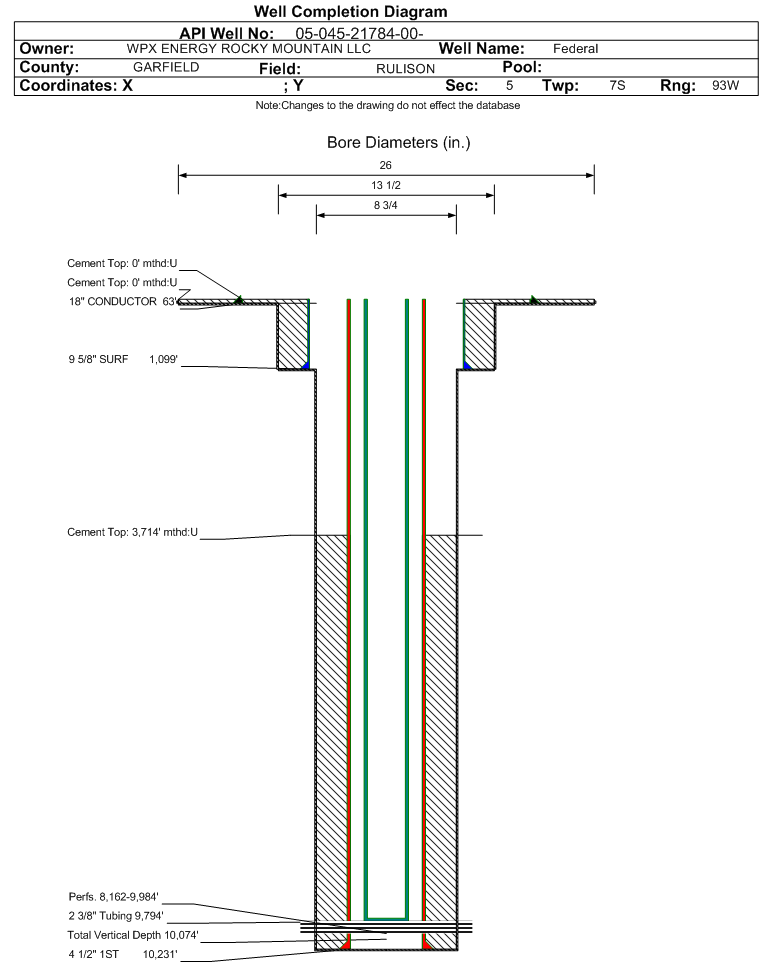

Wellbore Completed
Completion Date:7/10/2014
Spud Date:6/29/2014Spud Date Is:ACTUAL
Measured TD:10240 ft.Measured PB depth:10163 ft.
True Vertical TD:10074 ft.True Vertical PB depth:9997 ft.
Top PZ Location:Sec:32 Twp: 6S 93WFootage: 1117 FSL  1935 FEL
Bottom Hole Location:Sec:32 Twp: 6S 93WFootage: 1078 FSL  1959 FEL
Log Types:RPM CBL MUDLOGS
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 24, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1099 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 1099 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10231 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1120, Top: 3714 ft., Bottom: 10231 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G3674 ft.N
MESAVERDE6355 ft.N
CAMEO9260 ft.N
ROLLINS10107 ft.N

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 11/29/2014                Interval Top: 8162 ft.    Interval Bottom: 9984 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/27/2014Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:9/25/2014Treatment End Date:9/30/2014
Treatment Summary:7 STAGES; 1481 Gals 7 ½% HCL; 850200 # 40/70 Sand: 23863 Bbls Slickwater (Summary)
Total fluid used in treatment (bbls):23898Max pressure during treatment (psi):6798
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:7
Total acid used in treatment (bbls):35Min frac gradient (psi/ft):0.68
Recycled water used in treatment (bbls):23863Total flowback volume recovered (bbls):15058
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):850200Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:9794 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/29/2014Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1131
CALC_MCF_GAS 707
CASING_PRESS 1466
MCF_GAS 707
TUBING_PRESS 686
Perforation Data:
Interval Top:8162 ft.# Of Holes:168
Interval Bottom:9984 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)100
Total Gas Produced (MCF)18048
GOR180480
GOR DeterminationMCFE
Average BOE per Day8.797
Average MCFE per Day51.045

 Federal Financial Assurance  i Y

 Tribal Well  i No
