COGIS - WELL SCOUT CARD

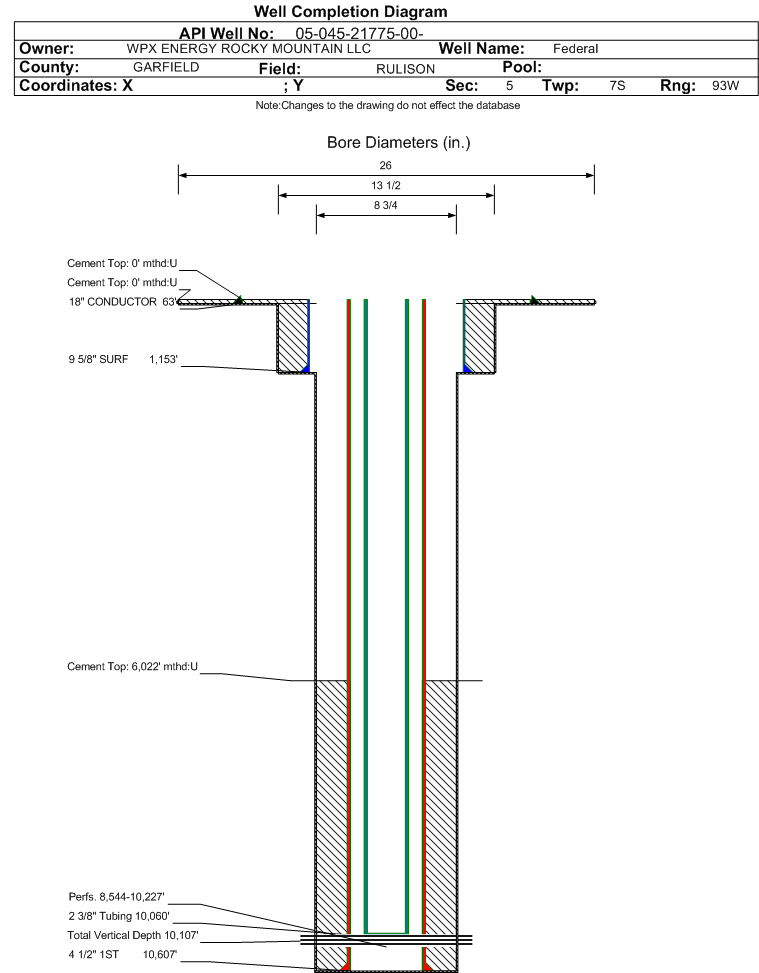

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21775		Well Classification: GW Status: PR - 8/12/2014
Well Name/No:Federal #NER 443-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC41916
Facility Status:PRStatus Date8/12/2014
FacilityID:430845LocationID:383328
County:GARFIELD #045Location:LOT 2 5 7S93W 6
Field:RULISON - #75400Elevation:7602 ft.
Basin:PICEANCE BASIN
Planned Location:161FNL  2596 FWLLat/Long: 39.474917 / -107.798830Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.474918 / -107.798830Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 6/30/2014
End Date: 7/7/2014
Reported: 8/26/2014
Days to report: 50
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/12/2014             Measured TD: 10624 ft.    Vertical TD: 10107 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/12/2014
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:11/25/2014
Proposed Top PZ Location:Sec:32 Twp: 6S 93W Footage: 1482 FSL  653 FEL
Bottom Hole Location:Sec:32 Twp: 6S 93W Footage: 1482 FSL  653 FEL
Proposed Depth/Form:10607 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-47 , Unit Acreage: 640, Drill Unit: All
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 60 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1149 ft., Weight: 32.3# , Citings Type: PLANNED
Cement:Sacks: 303, Top: 0 ft., Bottom: 1149 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10607 ft., Weight: 11.6# , Citings Type: PLANNED
Cement:Sacks: 988, Top: , Bottom: 10607 ft.
Wellbore Completed
Completion Date:4/29/2014
Spud Date:4/20/2014Spud Date Is:ACTUAL
Measured TD:10624 ft.Measured PB depth:10540 ft.
True Vertical TD:10107 ft.True Vertical PB depth:10023 ft.
Top PZ Location:Sec:32 Twp: 6S 93WFootage: 1508 FSL  615 FEL
Bottom Hole Location:Sec:32 Twp: 6S 93WFootage: 1454 FSL  627 FEL
Log Types:RPM CBL MUDLOGS
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 24, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1153 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 1153 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10607 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1045, Top: 6022 ft., Bottom: 10607 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G3905 ft.
MESAVERDE6747 ft.
CAMEO9642 ft.
ROLLINS10462 ft.

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 7/19/2014                 Interval Top: 8544 ft.    Interval Bottom: 10227 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:6/26/2014Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:6/30/2014Treatment End Date:7/7/2014
Treatment Summary:6 STAGES; 1574 Gals 7 ½% HCL; 820300 # 40/70 Sand: 22651 Bbls Slickwater (Summary)
Total fluid used in treatment (bbls):22689Max pressure during treatment (psi):4971
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.43
Type Of gas:Number Of staged intervals:6
Total acid used in treatment (bbls):37Min frac gradient (psi/ft):0.66
Recycled water used in treatment (bbls):22651Total flowback volume recovered (bbls):14692
Fresh water used in treatment (bbls):Disposition method For flowback:RECYCLE
Total proppant used (lbs):820300Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:10060 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/19/2014Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1138
CALC_MCF_GAS 725
CASING_PRESS 2378
MCF_GAS 725
TUBING_PRESS 1894
Perforation Data:
Interval Top:8544 ft.# Of Holes:138
Interval Bottom:10227 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)116
Total Gas Produced (MCF)20874
GOR179948
GOR DeterminationMCFE
Average BOE per Day10.177
Average MCFE per Day59.041

 Federal Financial Assurance  i Y

 Tribal Well  i No
