Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2014 Measured TD: 10051 ft. Vertical TD: 9945 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/25/2014 | | Proposed Top PZ Location: | Sec:5 Twp: 7S 93W | Footage: 1213 FNL 1941 FWL | | Bottom Hole Location: | Sec:5 Twp: 7S 93W | Footage: 1213 FNL 1941 FWL | | Proposed Depth/Form: | 10058 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-76 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1113 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 294, Top: 0 ft., Bottom: 1113 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10058 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 975, Top: , Bottom: 10058 ft. |
| | |

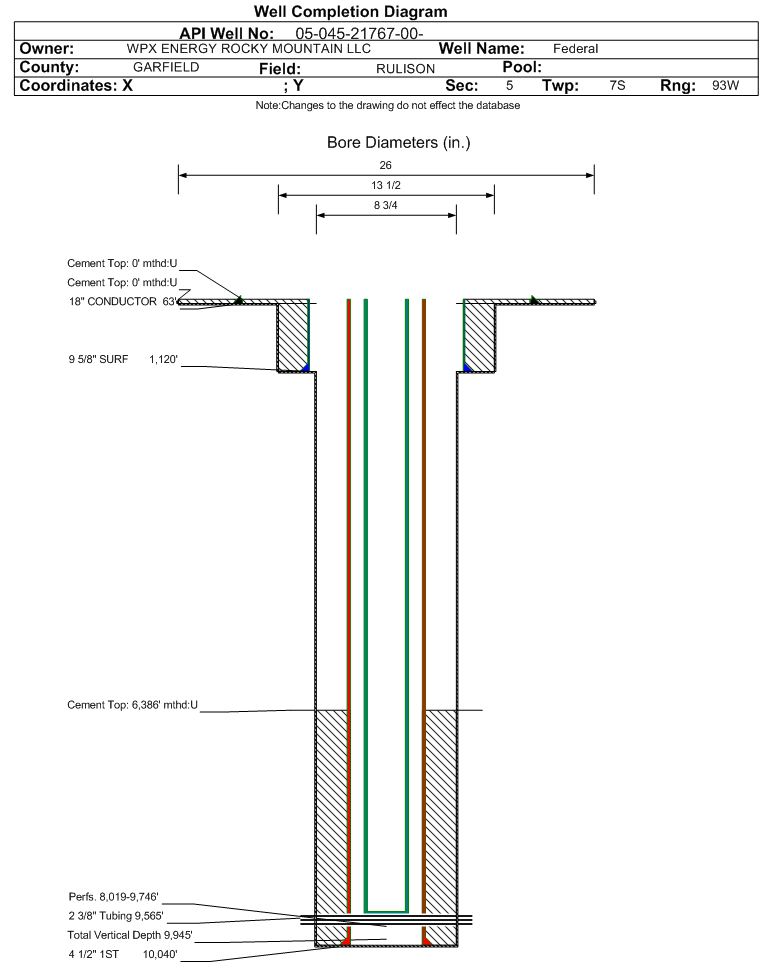

| Wellbore Completed | | Completion Date: | 9/3/2013 | | Spud Date: | 8/22/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 10051 ft. | Measured PB depth: | 9934 ft. | | True Vertical TD: | 9945 ft. | True Vertical PB depth: | 9828 ft. | | Top PZ Location: | Sec:5 Twp: 7S 93W | Footage: 1181 FNL 1966 FWL | | Bottom Hole Location: | Sec:5 Twp: 7S 93W | Footage: 1243 FNL 1929 FWL | | Log Types: | SP/GR/HDIL/ZDL/CN/MUD/CBL/RESERVOIR PERFORMANCE MONITOR(RPM) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 63 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 24, Top: 0 ft., Bottom: 63 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1120 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1120 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10040 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1040, Top: 6386 ft., Bottom: 10040 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3651 ft. | | | | | MESAVERDE | 6215 ft. | | | | | CAMEO | 9101 ft. | | | | | ROLLINS | 9905 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 4/1/2014 Interval Top: 8019 ft. Interval Bottom: 9746 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/3/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/1/2013 | Treatment End Date: | 11/6/2013 | | Treatment Summary: | 1497 Gals 7 1/2% HCL; 811800# 40/70 Sand; 22585 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on commingled volumes.
| | Total fluid used in treatment (bbls): | 22621 | Max pressure during treatment (psi): | 7140 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 35 | Min frac gradient (psi/ft): | 0.70 | | Recycled water used in treatment (bbls): | 22585 | Total flowback volume recovered (bbls): | 12781 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 811800 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9565 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/10/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1141 | | CALC_MCF_GAS | 1347 | | CASING_PRESS | 2368 | | MCF_GAS | 1347 | | TUBING_PRESS | 706 |
| | Perforation Data: | | Interval Top: | 8019 ft. | # Of Holes: | 131 | | Interval Bottom: | 9746 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 132 |
| Total Gas Produced (MCF) | 24002 |
| GOR | 181833 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.701 |
| Average MCFE per Day | 67.874 |
| Federal Financial Assurance | i | Y |
|
|
