Wellbore #00 Wellbore Classification: GW Status: PR - 4/30/2013 Measured TD: 9922 ft. Vertical TD: 9625 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/30/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/23/2014 | | Proposed Top PZ Location: | Sec:6 Twp: 8S 92W | Footage: 1754 FNL 2367 FEL | | Bottom Hole Location: | Sec:6 Twp: 8S 92W | Footage: 1754 FNL 2367 FEL | | Proposed Depth/Form: | 9996 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | Hunter Mesa | Unit Number: | COC055972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: Linepipe , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1428 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 441, Top: 0 ft., Bottom: 1428 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9996 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 707, Top: 0 ft., Bottom: 9996 ft. |
| | |

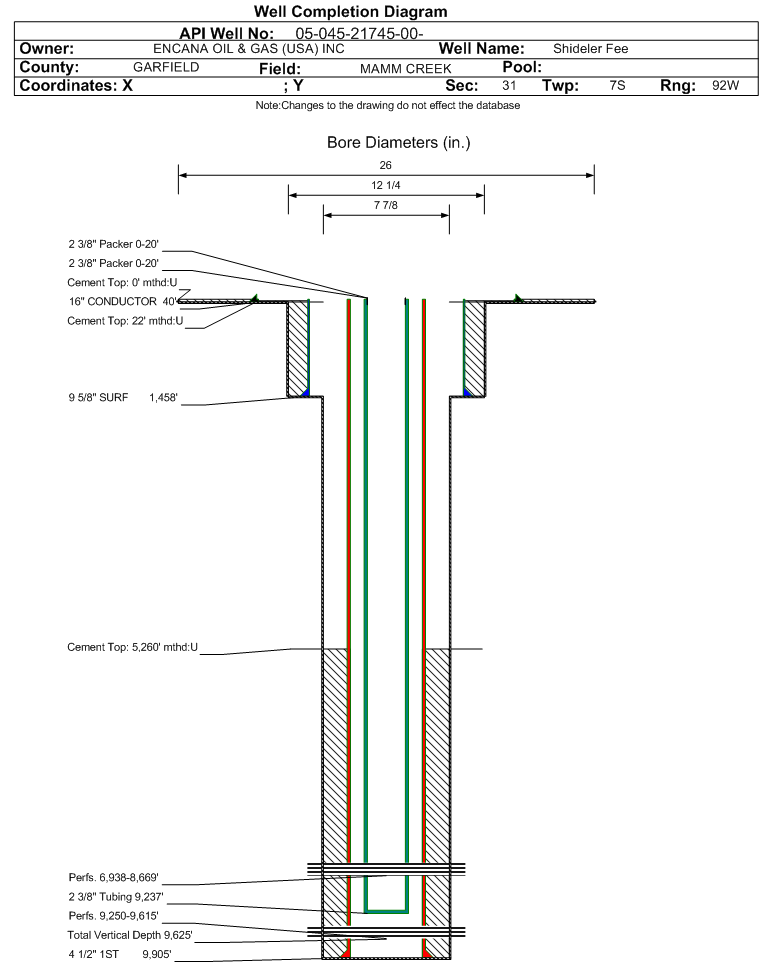

| Wellbore Completed | | Completion Date: | 1/10/2013 | | Spud Date: | 11/27/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 9922 ft. | Measured PB depth: | 9751 ft. | | True Vertical TD: | 9625 ft. | True Vertical PB depth: | 9454 ft. | | Top PZ Location: | Sec:6 Twp: 8S 92W | Footage: 1624 FNL 2483 FEL | | Bottom Hole Location: | Sec:6 Twp: 8S 92W | Footage: 1637 FNL 2456 FEL | | Log Types: | Neutron Log (includes RST), CBL, and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1458 ft., Weight: 36.00 , Citings Type: ACTUAL | | Cement: | Sacks: 460, Top: 22 ft., Bottom: 1458 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9905 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1155, Top: 5260 ft., Bottom: 9922 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 5182 ft. | 5773 ft. | N | N | | WILLIAMS FORK | 5774 ft. | 8701 ft. | N | N | | ROLLINS | 8702 ft. | 9245 ft. | N | N | | CORCORAN | 9246 ft. | 9922 ft. | N | N |
Formation CRCRN Formation Classification: OW Status: PR - 4/30/2013 Interval Top: 9250 ft. Interval Bottom: 9615 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 4/21/2013 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/25/2013 | Treatment End Date: | 4/13/2013 | | Treatment Summary: | Stages 1-2 treated with a total of: 97,820 bbls of Slickwater. | | Total fluid used in treatment (bbls): | 97820 | Max pressure during treatment (psi): | 6471 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 8 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.64 | | Recycled water used in treatment (bbls): | 97820 | Total flowback volume recovered (bbls): | 59457 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9237 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 858 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 858 | | CALC_MCF_GAS | 1584 | | CASING_PRESS | 2200 | | MCF_GAS | 1584 | | TUBING_PRESS | 1243 |
| | Perforation Data: | | Interval Top: | 9250 ft. | # Of Holes: | 54 | | Interval Bottom: | 9615 ft. | Hole Size: | 0.38 in. |
|
Formation WMFK Formation Classification: OW Status: PR - 4/30/2013 Interval Top: 6938 ft. Interval Bottom: 8669 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 4/30/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | Yes |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/25/2013 | Treatment End Date: | 4/13/2013 | | Treatment Summary: | Stages 3-8 treated with a total of: 97,820 bbls of Slickwater. | | Total fluid used in treatment (bbls): | 97820 | Max pressure during treatment (psi): | 6471 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 8 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.64 | | Recycled water used in treatment (bbls): | 97820 | Total flowback volume recovered (bbls): | 59457 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9237 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 858 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 858 | | CALC_MCF_GAS | 1584 | | CASING_PRESS | 2200 | | MCF_GAS | 1584 | | TUBING_PRESS | 1243 |
| | Perforation Data: | | Interval Top: | 6938 ft. | # Of Holes: | 162 | | Interval Bottom: | 8669 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 74 |
| Total Gas Produced (MCF) | 44400 |
| GOR | 600000 |
| GOR Determination | MCFE |
| Average BOE per Day | 21.180 |
| Average MCFE per Day | 122.843 |
| Federal Financial Assurance | i | Y |
|
|
