Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2014 Measured TD: 8678 ft. Vertical TD: 8583 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/23/2014 | | Proposed Top PZ Location: | Sec:6 Twp: 8S 92W | Footage: 787 FNL 2387 FEL | | Bottom Hole Location: | Sec:6 Twp: 8S 92W | Footage: 787 FNL 2387 FEL | | Proposed Depth/Form: | 8710 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | Hunter Mesa | Unit Number: | COC055972X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: Linepipe , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1008 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 329, Top: 0 ft., Bottom: 1008 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8710 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 495, Top: 0 ft., Bottom: 8710 ft. |
| | |

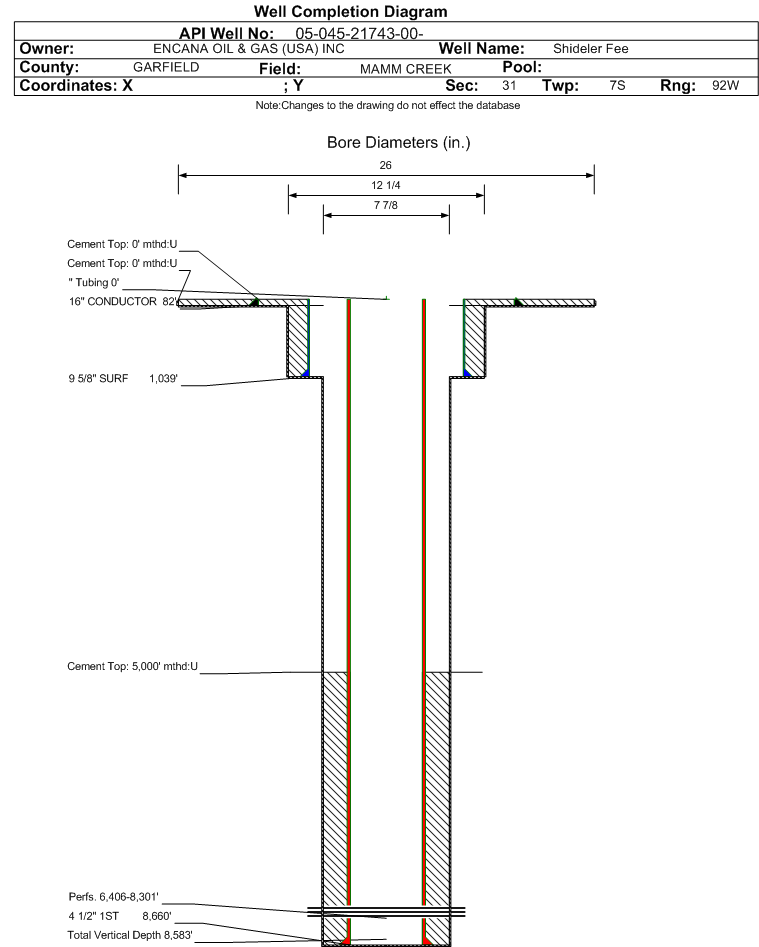

| Wellbore Completed | | Completion Date: | 1/15/2013 | | Spud Date: | 11/26/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8678 ft. | Measured PB depth: | 8521 ft. | | True Vertical TD: | 8583 ft. | True Vertical PB depth: | 8426 ft. | | Top PZ Location: | Sec:6 Twp: 8S 92W | Footage: 773 FNL 2493 FEL | | Bottom Hole Location: | Sec:6 Twp: 8S 92W | Footage: 792 FNL 2503 FEL | | Log Types: | RST,CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 82 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 114, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1039 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 344, Top: 0 ft., Bottom: 1039 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8660 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 943, Top: 5000 ft., Bottom: 8678 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4927 ft. | 8421 ft. | | |
Formation WMFK Formation Classification: OW Status: PR - 3/1/2014 Interval Top: 6406 ft. Interval Bottom: 8301 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/27/2013 | Treatment End Date: | 4/6/2013 | | Treatment Summary: | STAGES 1-3 TREATED WITH A TOTAL OF: 88,932 BBLS SLICKWATER | | Total fluid used in treatment (bbls): | 88932 | Max pressure during treatment (psi): | 5394 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 3 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.63 | | Recycled water used in treatment (bbls): | 88932 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 6406 ft. | # Of Holes: | 162 | | Interval Bottom: | 8301 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 70 |
| Total Gas Produced (MCF) | 42493 |
| GOR | 607042 |
| GOR Determination | MCFE |
| Average BOE per Day | 20.275 |
| Average MCFE per Day | 117.584 |
| Federal Financial Assurance | i | Y |
|
|
