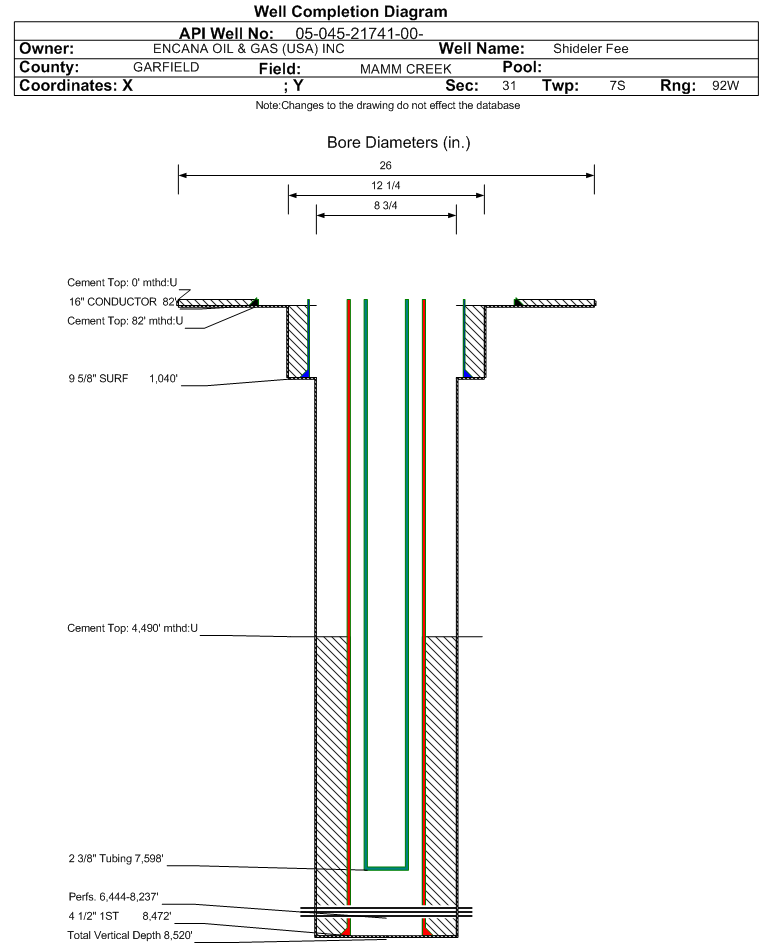

Wellbore #00 Wellbore Classification: GW Status: PR - 6/4/2013 Measured TD: 8530 ft. Vertical TD: 8520 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/4/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/23/2014 | | Proposed Top PZ Location: | Sec:6 Twp: 8S 92W | Footage: 38 FNL 2232 FEL | | Bottom Hole Location: | Sec:6 Twp: 8S 92W | Footage: 38 FNL 2232 FEL | | Proposed Depth/Form: | 8594 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | Hunter Mesa | Unit Number: | COC055972X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: Linepipe , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1001 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 327, Top: 0 ft., Bottom: 1001 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8594 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 494, Top: 0 ft., Bottom: 8594 ft. |
| | |
| Wellbore Completed | | Completion Date: | 1/26/2013 | | Spud Date: | 11/24/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8530 ft. | Measured PB depth: | 8394 ft. | | True Vertical TD: | 8520 ft. | True Vertical PB depth: | 8384 ft. | | Top PZ Location: | Sec:6 Twp: 8S 92W | Footage: 34 FNL 2346 FEL | | Bottom Hole Location: | Sec:6 Twp: 8S 92W | Footage: 31 FNL 2337 FEL | | Log Types: | CBL, RST, Mudlog | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 82 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 114, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1040 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 344, Top: 82 ft., Bottom: 1055 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8472 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 927, Top: 4490 ft., Bottom: 8472 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5122 ft. | 8299 ft. | | |
Formation WMFK Formation Classification: OW Status: PR - 4/26/2013 Interval Top: 6444 ft. Interval Bottom: 8237 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 4/25/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/26/2013 | Treatment End Date: | 4/25/2013 | | Treatment Summary: | State 1 - Stage 3 treated with a total of 88,000 bbls of Slickwater (BWS). | | Total fluid used in treatment (bbls): | 88000 | Max pressure during treatment (psi): | 5052 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 3 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 3.00 | | Recycled water used in treatment (bbls): | 88000 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7598 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/26/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 917 | | BTU_GAS | 1170 | | CASING_PRESS | 2450 | | MCF_GAS | 1686 | | TUBING_PRESS | 1600 |
| | Perforation Data: | | Interval Top: | 6444 ft. | # Of Holes: | 162 | | Interval Bottom: | 8237 ft. | Hole Size: | 0.375 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 68 |
| Total Gas Produced (MCF) | 39622 |
| GOR | 582676 |
| GOR Determination | MCFE |
| Average BOE per Day | 18.906 |
| Average MCFE per Day | 109.663 |
| Federal Financial Assurance | i | Y |
|
|
