COGIS - WELL SCOUT CARD

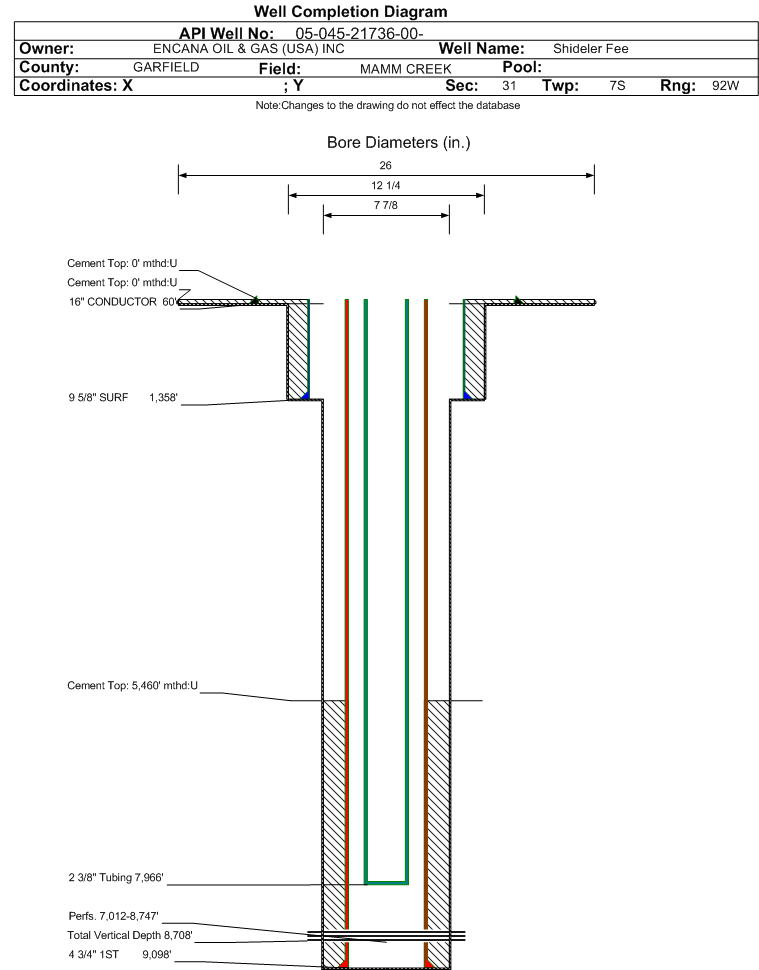

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-21736		Well Classification: GW Status: PR - 7/31/2013
Well Name/No:Shideler Fee #31-13C (O31E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/31/2013
FacilityID:430553LocationID:334156
County:GARFIELD #045Location:SWSE 31 7S92W 6
Field:MAMM CREEK - #52500Elevation:7107 ft.
Basin:PICEANCE BASIN
Planned Location:208FSL  2021 FELLat/Long: 39.396357 / -107.706118Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.396348 / -107.706132Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 3/25/2013
End Date: 4/12/2013
Reported: 6/26/2013
Days to report: 75
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/31/2013             Measured TD: 9118 ft.    Vertical TD: 8708 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/31/2013
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:10/23/2014
Proposed Top PZ Location:Sec:31 Twp: 7S 92W Footage: 538 FSL  38 FWL
Bottom Hole Location:Sec:31 Twp: 7S 92W Footage: 538 FSL  38 FWL
Proposed Depth/Form:9136 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:Hunter Mesa Unit Number:COC055972X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: Linepipe , Citings Type: PLANNED
Cement:Sacks: 100, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1187 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 377, Top: 0 ft., Bottom: 1187 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9127 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 503, Top: 0 ft., Bottom: 9127 ft.
Wellbore Completed
Completion Date:12/10/2012
Spud Date:12/2/2012Spud Date Is:ACTUAL
Measured TD:9118 ft.Measured PB depth:9049 ft.
True Vertical TD:8708 ft.True Vertical PB depth:8640 ft.
Top PZ Location:Sec:31 Twp: 7S 92WFootage: 527 FSL  52 FWL
Bottom Hole Location:Sec:31 Twp: 7S 92WFootage: 533 FSL  48 FWL
Log Types:CBL, mudlog, RST
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 114, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1358 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 435, Top: 0 ft., Bottom: 1358 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.75 in., Top: 0 ft., Depth: 9098 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 890, Top: 5460 ft., Bottom: 9118 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK5956 ft.8924 ft.

Formation WMFK                     Formation Classification:  OW                     Status:  PR - 3/1/2014                  Interval Top: 7012 ft.    Interval Bottom: 8747 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:3/20/2013Treatment End Date:4/12/2013
Treatment Summary:Stage 1 - Stage 6 treated with a total of 85,999 bbls of Slickwater (BWS).
Total fluid used in treatment (bbls):85999Max pressure during treatment (psi):5795
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.40
Type Of gas:Number Of staged intervals:6
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.63
Recycled water used in treatment (bbls):85999Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:7966 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:7012 ft.# Of Holes:162
Interval Bottom:8747 ft.Hole Size:0.375 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)85
Total Gas Produced (MCF)49033
GOR576858
GOR DeterminationMCFE
Average BOE per Day23.400
Average MCFE per Day135.720

 Federal Financial Assurance  i Y

 Tribal Well  i No
