Wellbore #00 Wellbore Classification: GW Status: SI - 8/1/2025 Measured TD: 8540 ft. Vertical TD: 8081 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 8/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/8/2014 | | Proposed Top PZ Location: | Sec:31 Twp: 7S 92W | Footage: 2334 FSL 596 FEL | | Bottom Hole Location: | Sec:31 Twp: 7S 92W | Footage: 2334 FSL 596 FEL | | Proposed Depth/Form: | 8620 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | Hunter Mesa | Unit Number: | COC055972X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 16 in., Size: 20 in., Top: 0 ft., Depth: 40 ft., Weight: Linepipe , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 461, Top: 0 ft., Bottom: 1500 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8620 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 528, Top: 0 ft., Bottom: 8620 ft. |
| | |

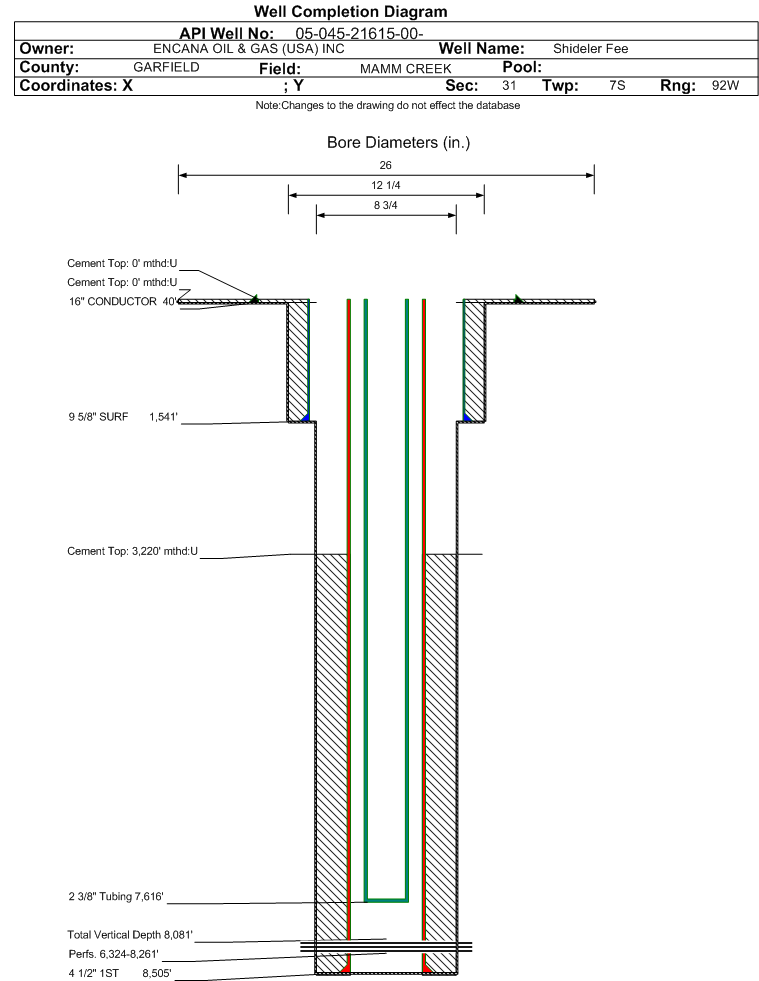

| Wellbore Completed | | Completion Date: | 10/18/2012 | | Spud Date: | 8/19/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8540 ft. | Measured PB depth: | 8445 ft. | | True Vertical TD: | 8081 ft. | True Vertical PB depth: | 7986 ft. | | Top PZ Location: | Sec:31 Twp: 7S 92W | Footage: 2356 FSL 627 FEL | | Bottom Hole Location: | Sec:31 Twp: 7S 92W | Footage: 2359 FSL 563 FEL | | Log Types: | RST, CBL (included in Neutron Log) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1541 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 1541 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8505 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 970, Top: 3220 ft., Bottom: 8540 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 4881 ft. | 5550 ft. | N | N | | WILLIAMS FORK | 5551 ft. | 8320 ft. | N | N | | ROLLINS | 8321 ft. | 8540 ft. | N | N |
Formation WMFK Formation Classification: OG Status: SI - 8/1/2025 Interval Top: 6324 ft. Interval Bottom: 8261 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 2/15/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/31/2012 | Treatment End Date: | 1/22/2013 | | Treatment Summary: | Stages 1-7 treated with a total of: 98,929 bbls of Slickwater. | | Total fluid used in treatment (bbls): | 98929 | Max pressure during treatment (psi): | 6106 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.71 | | Recycled water used in treatment (bbls): | 98929 | Total flowback volume recovered (bbls): | 53813 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7616 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/22/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 759 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 759 | | CALC_MCF_GAS | 1705 | | CASING_PRESS | 2301 | | MCF_GAS | 1705 | | TUBING_PRESS | 930 |
| | Perforation Data: | | Interval Top: | 6324 ft. | # Of Holes: | 189 | | Interval Bottom: | 8261 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 15 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.008 |
| Average MCFE per Day | 0.040 |
| Federal Financial Assurance | i | Y |
|
|
