Wellbore #00 Wellbore Classification: GW Status: AB - 9/27/2012 Measured TD: 11204 ft. Vertical TD: 11201 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 9/27/2012 | | Wellbore Permit | DRIFTED | | Permit #: | | Expiration Date: | 5/9/2014 | | Proposed Depth/Form: | 11050 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MNCS , Formation: MANCOS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 60 ft., Weight: 52.7# , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 2400 ft., Weight: 68# , Citings Type: PLANNED | | Cement: | Sacks: 731, Top: 0 ft., Bottom: 2400 ft. | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 9350 ft., Weight: 47# , Citings Type: PLANNED | | Cement: | Sacks: 1136, Top: 0 ft., Bottom: 9350 ft. | | Casing: | String Type: OPEN HOLE, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11050 ft., Weight: 23# , Citings Type: PLANNED | | Cement: | Sacks: 996, Top: 0 ft., Bottom: 11050 ft. |
| | |
| Wellbore Completed | | Completion Date: | 9/28/2012 | | Spud Date: | 8/7/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 11204 ft. | Measured PB depth: | 9814 ft. | | True Vertical TD: | 11201 ft. | True Vertical PB depth: | 9141 ft. | | Bottom Hole Location: | Sec:4 Twp: 7S 96W | Footage: 744 FNL 932 FEL | | Log Types: | Intermediate run from 2301’ to 9401’
Triple combo (PEx): AIT, HNGS, HGNS, HDRS, SP
GR Spectroscopy: ECS
TD run from 9235’ to 11230’
Triple combo (PEx): AIT, HNGS, HGNS, HDRS, SP
GR Spectroscopy: ECS
Dipole Sonic: MSIP
Resistivity Images: FMI

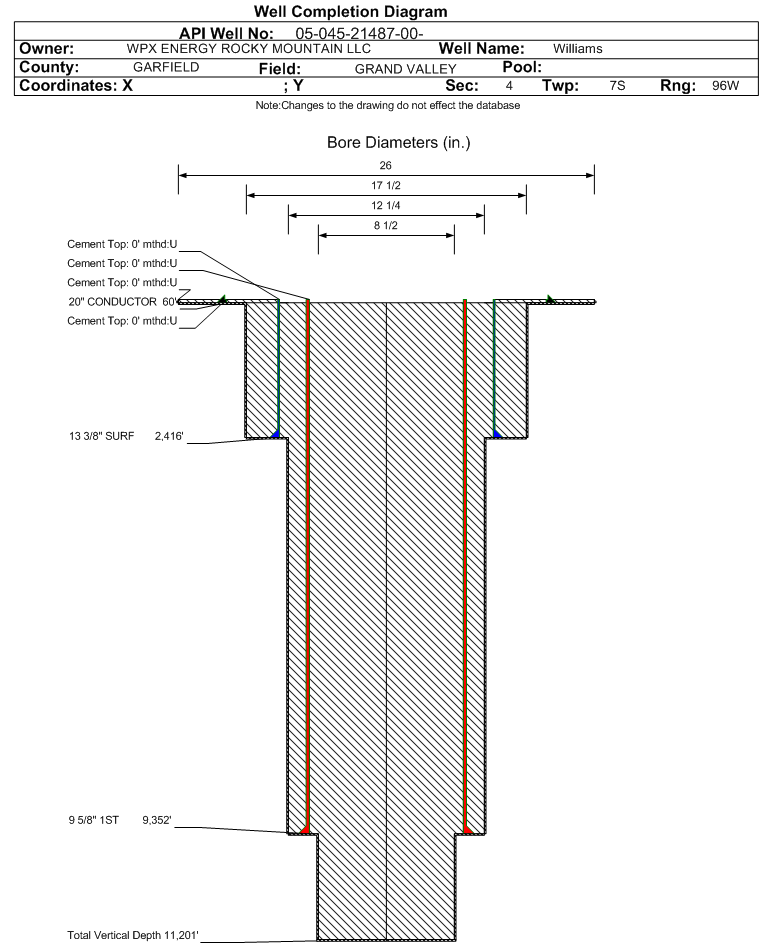

| | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 60 ft., Weight: 52.8 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 2416 ft., Weight: 68 , Citings Type: ACTUAL | | Cement: | Sacks: 825, Top: 0 ft., Bottom: 2416 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 9352 ft., Weight: 47 , Citings Type: ACTUAL | | Cement: | Sacks: 1530, Top: 0 ft., Bottom: 9352 ft., Determination Method: CBL | | Casing: | String Type: OPEN HOLE, Hole Size: 8.5 in., Size: , Top: 9352 ft., Depth: 11204 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 3300 ft. | | | | | ROLLINS | 6252 ft. | | | | | COZZETTE | 6523 ft. | | | | | CORCORAN | 6789 ft. | | | | | MANCOS | 6870 ft. | | | | | MANCOS B | 8930 ft. | | | | | No formation data to display. |
Sidetrack #01 Wellbore Classification: GW Status: PR - 4/30/2013 Measured TD: 15420 ft. Vertical TD: 12301 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: GW PR - 4/30/2013 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 5/9/2014 | | Proposed Top PZ Location: | Sec:4 Twp: 7S 96W | Footage: 1890 FNL 510 FEL | | Bottom Hole Location: | Sec:10 Twp: 7S 96W | Footage: 1877 FNL 310 FWL | | Proposed Depth/Form: | 16676 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 60 ft., Weight: 52.7 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 2400 ft., Weight: 68# , Citings Type: PLANNED | | Cement: | Sacks: 731, Top: 0 ft., Bottom: 2400 ft. | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 9350 ft., Weight: 47# , Citings Type: PLANNED | | Cement: | Sacks: 1136, Top: 0 ft., Bottom: 9350 ft. | | Casing: | String Type: 2ND, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 16676 ft., Weight: 23# , Citings Type: PLANNED | | Cement: | Sacks: 996, Top: 0 ft., Bottom: 16676 ft. |
| | |
| Wellbore Completed | | Completion Date: | 11/12/2012 | | Spud Date: | 8/7/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 15420 ft. | Measured PB depth: | 15390 ft. | | True Vertical TD: | 12301 ft. | True Vertical PB depth: | 12301 ft. | | Top PZ Location: | Sec:4 Twp: 7s 96w | Footage: 1658 FNL 688 FEL | | Bottom Hole Location: | Sec:10 Twp: 7s 96w | Footage: 608 FNL 51 FWL | | Log Types: |
LWD gamma ray (5,770 - 15,420ft)
Startrak resistivity imaging tool (10,831 - 11,868ft)
RPM pulsed neutron tool (12,400 - 15,324ft)
| | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 60 ft., Weight: 52.8 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 2416 ft., Weight: 68 , Citings Type: ACTUAL | | Cement: | Sacks: 825, Top: 0 ft., Bottom: 2416 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 9352 ft., Weight: 47 , Citings Type: ACTUAL | | Cement: | Sacks: 1530, Top: 0 ft., Bottom: 9352 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 15420 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1235, Top: 9222 ft., Bottom: 15420 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 9920 ft. | | | |
Formation NBRR Formation Classification: GW Status: PR - 4/30/2013 Interval Top: 11060 ft. Interval Bottom: 15350 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/14/2012 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 12/3/2012 | Treatment End Date: | 12/10/2012 | | Treatment Summary: | 796 bbls 7 1/2% HCL; 2846073# 100 Mesh, 922500 40/70 Sand; 212105 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on comingled volumes.
PLUGS IN PILOT SET @11159 W/205 SKS, @10445 W/147 SKS, @9670 W/148 SKS
| | Total fluid used in treatment (bbls): | 212901 | Max pressure during treatment (psi): | 13111 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 17 | | Total acid used in treatment (bbls): | 796 | Min frac gradient (psi/ft): | 1.05 | | Recycled water used in treatment (bbls): | 212105 | Total flowback volume recovered (bbls): | 9684 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 3768573 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 10036 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2013 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 978 | | CALC_MCF_GAS | 6257 | | CASING_PRESS | 3961 | | MCF_GAS | 6257 | | TUBING_PRESS | 3388 |
| | Perforation Data: | | Interval Top: | 11060 ft. | # Of Holes: | 592 | | Interval Bottom: | 15350 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 78 |
| Total Gas Produced (MCF) | 65041 |
| GOR | 833858 |
| GOR Determination | MCFE |
| Average BOE per Day | 30.891 |
| Average MCFE per Day | 179.187 |
| Federal Financial Assurance | i | Y |
|
|
