Wellbore #00 Wellbore Classification: GW Status: PR - 3/22/2013 Measured TD: 7690 ft. Vertical TD: 7235 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/22/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/10/2013 | | Proposed Top PZ Location: | Sec:9 Twp: 6S 91W | Footage: 480 FSL 2021 FWL | | Bottom Hole Location: | Sec:9 Twp: 6S 91W | Footage: 480 FSL 2021 FWL | | Proposed Depth/Form: | 7673 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WFILS , Formation: WILLIAMS FORK-ILES , Order: 513-4 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 70 ft., Weight: 65# , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 70 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1771 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 457, Top: 0 ft., Bottom: 1771 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7673 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 720, Top: , Bottom: 7673 ft. |
| | |

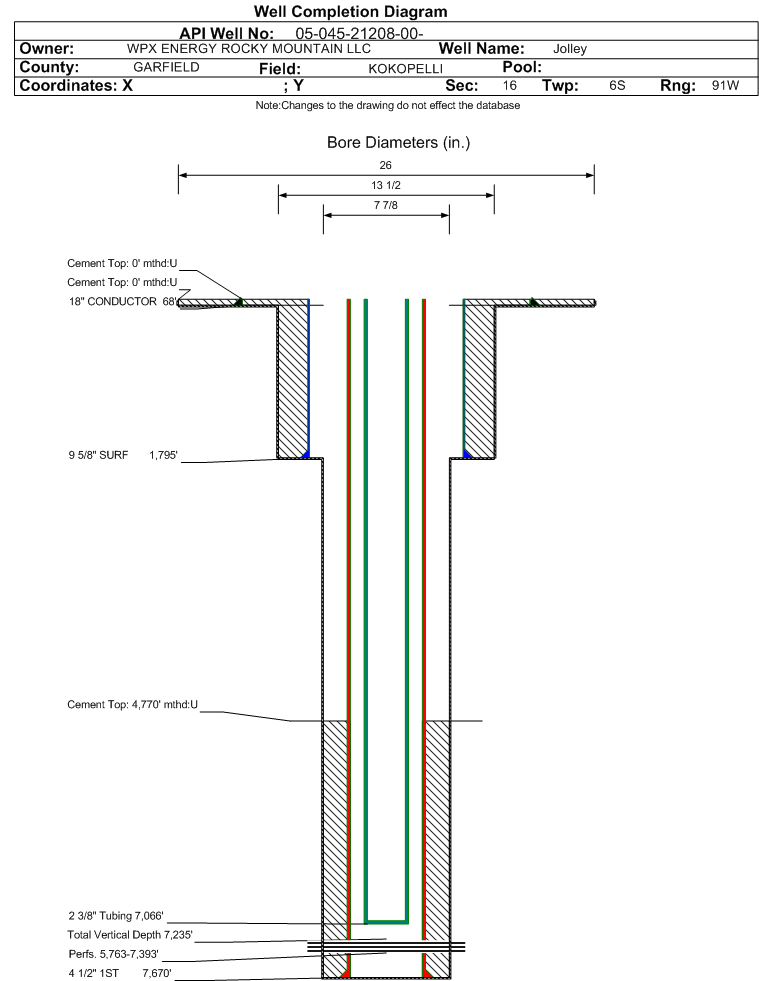

| Wellbore Completed | | Completion Date: | 10/19/2012 | | Spud Date: | 10/10/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 7690 ft. | Measured PB depth: | 7636 ft. | | True Vertical TD: | 7235 ft. | True Vertical PB depth: | 7181 ft. | | Top PZ Location: | Sec:9 Twp: 6s 91w | Footage: 496 FSL 1995 FWL | | Bottom Hole Location: | Sec:9 Twp: 6s 91w | Footage: 512 FSL 2004 FWL | | Log Types: | CBL, Mud, and Reservoir Performance Monitor (RPM) | | Log Types: | CBL, Mud, and Reservoir Performance Monitor (RPM) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 68 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 44, Top: 0 ft., Bottom: 68 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1795 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 470, Top: 0 ft., Bottom: 1795 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7670 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1190, Top: 4770 ft., Bottom: 7670 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 3678 ft. | | | | | CAMEO | 7146 ft. | | | | | ROLLINS | 7411 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 3/22/2013 Interval Top: 5763 ft. Interval Bottom: 7393 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 2/2/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/31/2013 | Treatment End Date: | 2/2/2013 | | Treatment Summary: | 3500 Gals 7 1/2% HCL;1046400#30/50 48000# 100 mesh Sand; 30706 Bbls Slickwater; (Summary)
*All flowback water entries are total estimates based on comingled volumes.
| | Total fluid used in treatment (bbls): | 30789 | Max pressure during treatment (psi): | 5094 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 83 | Min frac gradient (psi/ft): | 0.52 | | Recycled water used in treatment (bbls): | 30706 | Total flowback volume recovered (bbls): | 20022 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1094400 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7066 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/22/2013 | Test Method: | flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1228 | | CALC_MCF_GAS | 402 | | CASING_PRESS | 649 | | MCF_GAS | 402 | | TUBING_PRESS | 231 |
| | Perforation Data: | | Interval Top: | 5763 ft. | # Of Holes: | 165 | | Interval Bottom: | 7393 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 97 |
| Total Gas Produced (MCF) | 10731 |
| GOR | 110628 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.335 |
| Average MCFE per Day | 30.948 |
| Federal Financial Assurance | i | |
|
|
