Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2024 Measured TD: 10039 ft. Vertical TD: 9202 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/1/2020 | | Proposed Top PZ Location: | Sec:10 Twp: 5S 96W | Footage: 625 FSL 1222 FEL | | Bottom Hole Location: | Sec:10 Twp: 5S 96W | Footage: 595 FSL 1306 FEL | | Proposed Depth/Form: | 10387 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 100 ft., Weight: 54# , Citings Type: PLANNED | | Cement: | Sacks: 218, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2500 ft., Weight: 36# , Citings Type: PLANNED | | Cement: | Sacks: 994, Top: 0 ft., Bottom: 2500 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10029 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 1282, Top: 2804 ft., Bottom: 10029 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/6/2018 | | Spud Date: | 7/23/2018 | Spud Date Is: | ACTUAL | | Measured TD: | 10039 ft. | Measured PB depth: | 9966 ft. | | True Vertical TD: | 9202 ft. | True Vertical PB depth: | 9129 ft. | | Top PZ Location: | Sec:10 Twp: 5S 96W | Footage: 659 FSL 1230 FEL | | Bottom Hole Location: | Sec:10 Twp: 5S 96W | Footage: 606 FSL 1415 FEL | | Log Types: | CBL, Pulsed Neutron, (Triple Combo on 045-21085). | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 100 ft., Weight: 54 , Citings Type: ACTUAL | | Cement: | Sacks: 218, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2524 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 705, Top: 0 ft., Bottom: 2524 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10026 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 4900 ft., Bottom: 10026 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREEN RIVER | 0 ft. | | N | N | | WASATCH | 1654 ft. | | N | N | | WASATCH G | 3853 ft. | | N | N | | FORT UNION | 4442 ft. | | N | N | | OHIO CREEK | 5980 ft. | | N | N | | WILLIAMS FORK | 6272 ft. | | N | N | | CAMEO | 9247 ft. | | N | N | | ROLLINS | 9884 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 7/1/2024 Interval Top: 6486 ft. Interval Bottom: 9827 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/9/2019 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 3/10/2019 | Treatment End Date: | 3/15/2019 | | Treatment Summary: | 13-stage plug-and-perf completion;
234000 total bbls fluid pumped: 100139 bbls fresh water (slickwater), 133706 bbls recycled water (slickwater), and 167 bbls 7.5% HCl acid;
no proppant used. | | Total fluid used in treatment (bbls): | 234000 | Max pressure during treatment (psi): | 8539 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.41 | | Type Of gas: | | Number Of staged intervals: | 13 | | Total acid used in treatment (bbls): | 155 | Min frac gradient (psi/ft): | 0.83 | | Recycled water used in treatment (bbls): | 133706 | Total flowback volume recovered (bbls): | 46872 | | Fresh water used in treatment (bbls): | 100139 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |

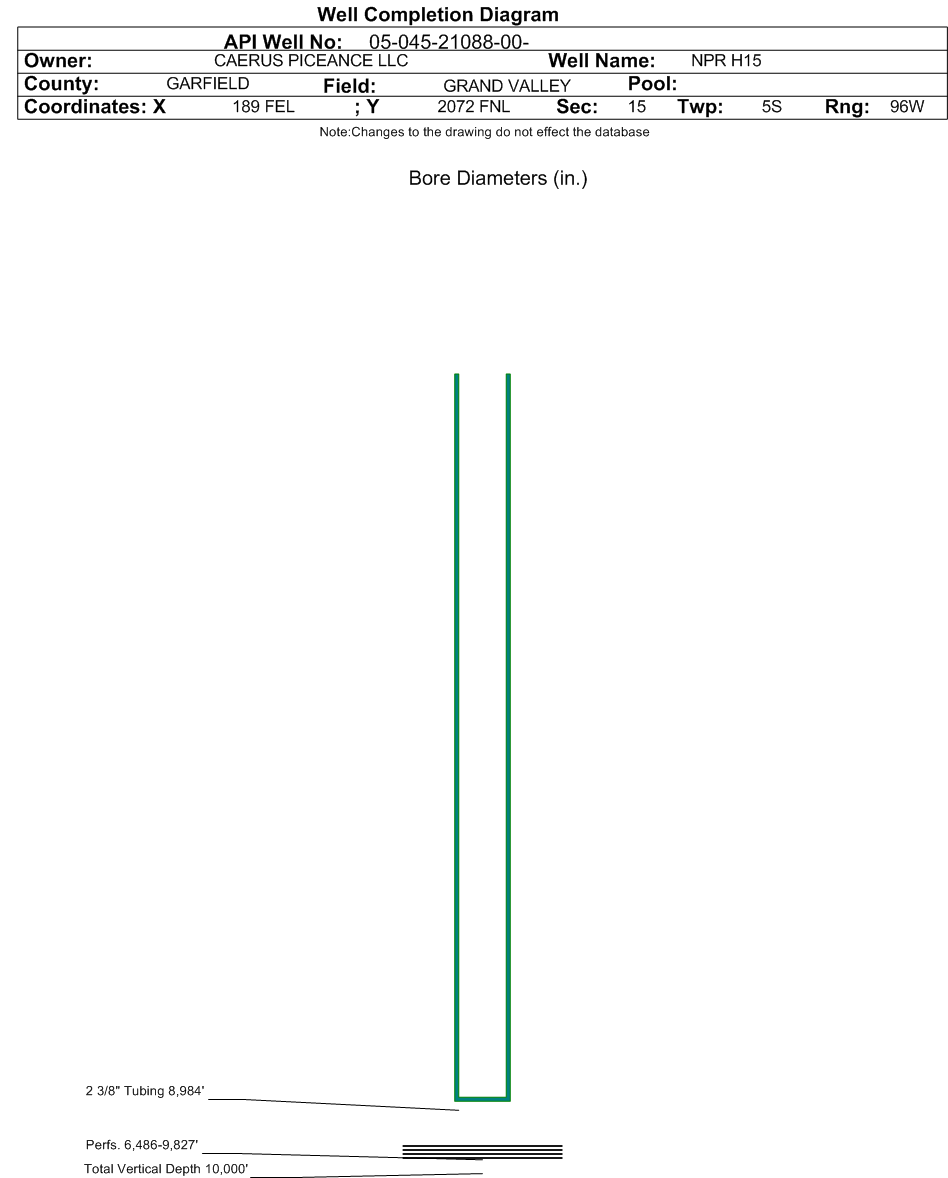

| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8984 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/9/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2112 | | BTU_GAS | 1050 | | CALC_BBLS_H2O | 2112 | | CALC_MCF_GAS | 85 | | CASING_PRESS | 1900 | | MCF_GAS | 85 | | TUBING_PRESS | 2275 |
| | Perforation Data: | | Interval Top: | 6486 ft. | # Of Holes: | 351 | | Interval Bottom: | 9827 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 538 |
| Total Gas Produced (MCF) | 95837 |
| GOR | 178135 |
| GOR Determination | MCFE |
| Average BOE per Day | 46.854 |
| Average MCFE per Day | 271.742 |
| Federal Financial Assurance | i | |
|
|
