Wellbore #00 Wellbore Classification: GW Status: PR - 11/13/2012 Measured TD: 8223 ft. Vertical TD: 7931 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/13/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/7/2013 | | Proposed Top PZ Location: | Sec:31 Twp: 6S 94W | Footage: 1811 FNL 287 FEL | | Bottom Hole Location: | Sec:31 Twp: 6S 94W | Footage: 1811 FNL 287 FEL | | Proposed Depth/Form: | 8337 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFk , Formation: WILLIAMS FORK , Order: 139-83 , Unit Acreage: 320, Drill Unit: N/2 Fee pooled | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1143 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 301, Top: 0 ft., Bottom: 1143 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8337 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 682, Top: 4385 ft., Bottom: 8337 ft. |
| | |

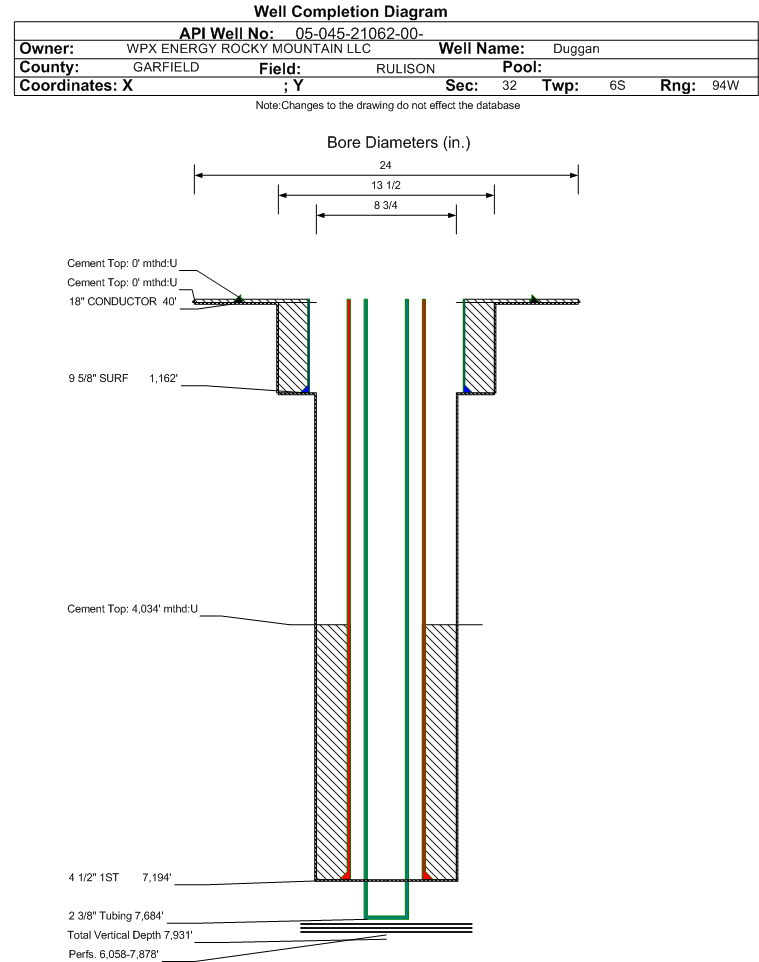

| Wellbore Completed | | Completion Date: | 6/26/2012 | | Spud Date: | 6/16/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8223 ft. | Measured PB depth: | 8192 ft. | | True Vertical TD: | 7931 ft. | True Vertical PB depth: | 7900 ft. | | Top PZ Location: | Sec:31 Twp: 6S 94W | Footage: 1851 FSL 271 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 94W | Footage: 1860 FSL 272 FWL | | Log Types: | RPM/CBL/MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 40 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 15, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1162 ft., Weight: 6536 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1162 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7194 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1360, Top: 4034 ft., Bottom: 7194 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2107 ft. | | | | | MESAVERDE | 4624 ft. | | | | | CAMEO | 7216 ft. | | | | | ROLLINS | 8124 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 10/31/2012 Interval Top: 6058 ft. Interval Bottom: 7878 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/9/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/6/2012 | Treatment End Date: | 9/14/2012 | | Treatment Summary: | 2851 Gals 7 ½% HCL; 789100# 30/50 Sand; 329100 100/Mesh; 24612 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 24680 | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 67 | Min frac gradient (psi/ft): | 0.82 | | Recycled water used in treatment (bbls): | 24612 | Total flowback volume recovered (bbls): | 12865 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1118500 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7684 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2012 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1084 | | CALC_MCF_GAS | 1062 | | CASING_PRESS | 2134 | | MCF_GAS | 1062 | | TUBING_PRESS | 1993 |
| | Perforation Data: | | Interval Top: | 6058 ft. | # Of Holes: | 132 | | Interval Bottom: | 7878 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 61 |
| Total Gas Produced (MCF) | 24073 |
| GOR | 394639 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.542 |
| Average MCFE per Day | 66.919 |
| Federal Financial Assurance | i | |
|
|
