Wellbore #00 Wellbore Classification: GW Status: PR - 11/13/2012 Measured TD: 8140 ft. Vertical TD: 7998 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/13/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/7/2013 | | Proposed Top PZ Location: | Sec:32 Twp: 6S 94W | Footage: 1499 FNL 157 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 94W | Footage: 1499 FNL 157 FWL | | Proposed Depth/Form: | 8173 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFk , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: N/2 fee Pooled | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1121 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 296, Top: 0 ft., Bottom: 1121 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8173 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 681, Top: 4227 ft., Bottom: 8173 ft. |
| | |

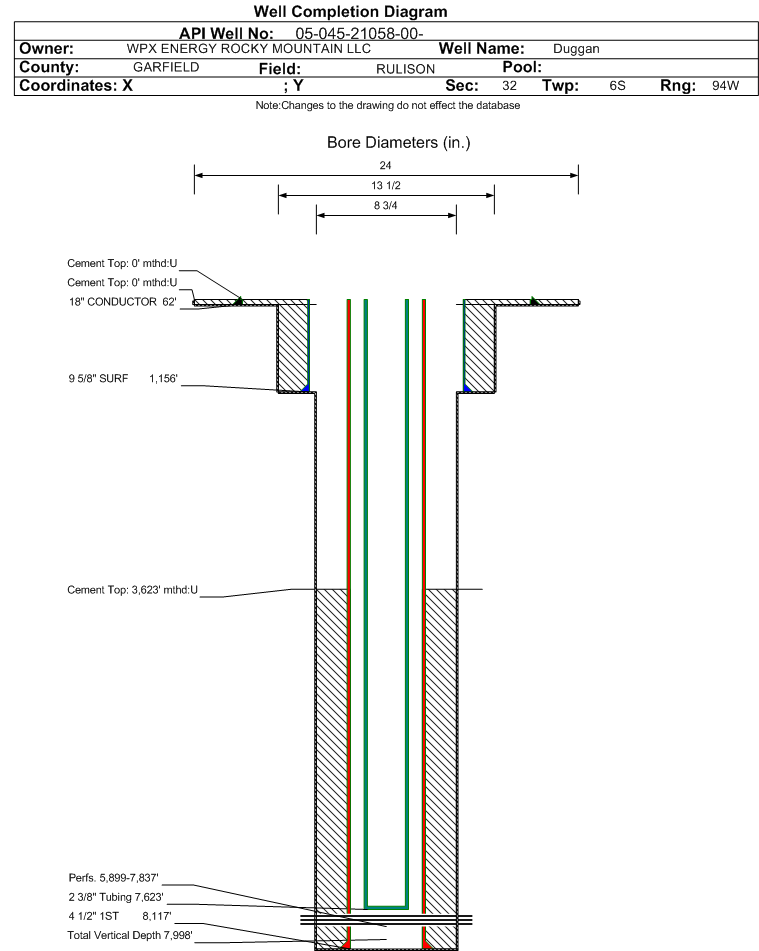

| Wellbore Completed | | Completion Date: | 7/23/2012 | | Spud Date: | 7/13/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8140 ft. | Measured PB depth: | 7892 ft. | | True Vertical TD: | 7998 ft. | True Vertical PB depth: | 7750 ft. | | Top PZ Location: | Sec:32 Twp: 6S 94W | Footage: 1525 FNL 193 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 94W | Footage: 1510 FNL 190 FWL | | Log Types: | RPM/CBL/MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 62 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 23, Top: 0 ft., Bottom: 62 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1156 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1156 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8117 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1395, Top: 3623 ft., Bottom: 8117 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2054 ft. | | | | | MESAVERDE | 4510 ft. | | | | | CAMEO | 7054 ft. | | | | | ROLLINS | 7973 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 10/31/2012 Interval Top: 5899 ft. Interval Bottom: 7837 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/8/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/6/2012 | Treatment End Date: | 9/12/2012 | | Treatment Summary: | 2892 Gals 7 ½% HCL; 742901 # 30/50 Sand; 164700 100/Mesh; 23164 Bbls Slickwater (Summary) | | Total fluid used in treatment (bbls): | 23233 | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 68 | Min frac gradient (psi/ft): | 0.79 | | Recycled water used in treatment (bbls): | 23164 | Total flowback volume recovered (bbls): | 11080 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 907601 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7623 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1100 | | CALC_MCF_GAS | 889 | | CASING_PRESS | 2323 | | MCF_GAS | 889 | | TUBING_PRESS | 2169 |
| | Perforation Data: | | Interval Top: | 5899 ft. | # Of Holes: | 127 | | Interval Bottom: | 7837 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 63 |
| Total Gas Produced (MCF) | 31070 |
| GOR | 493174 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.843 |
| Average MCFE per Day | 86.072 |
| Federal Financial Assurance | i | |
|
|
