Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2012 Measured TD: 7947 ft. Vertical TD: 7918 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/7/2013 | | Proposed Top PZ Location: | Sec:32 Twp: 6S 94W | Footage: 1470 FNL 1746 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 94W | Footage: 1470 FNL 1746 FWL | | Proposed Depth/Form: | 7993 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFk , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: N/2 Fee Pool | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1104 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 292, Top: 0 ft., Bottom: 1104 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7993 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 674, Top: 4098 ft., Bottom: 7993 ft. |
| | |

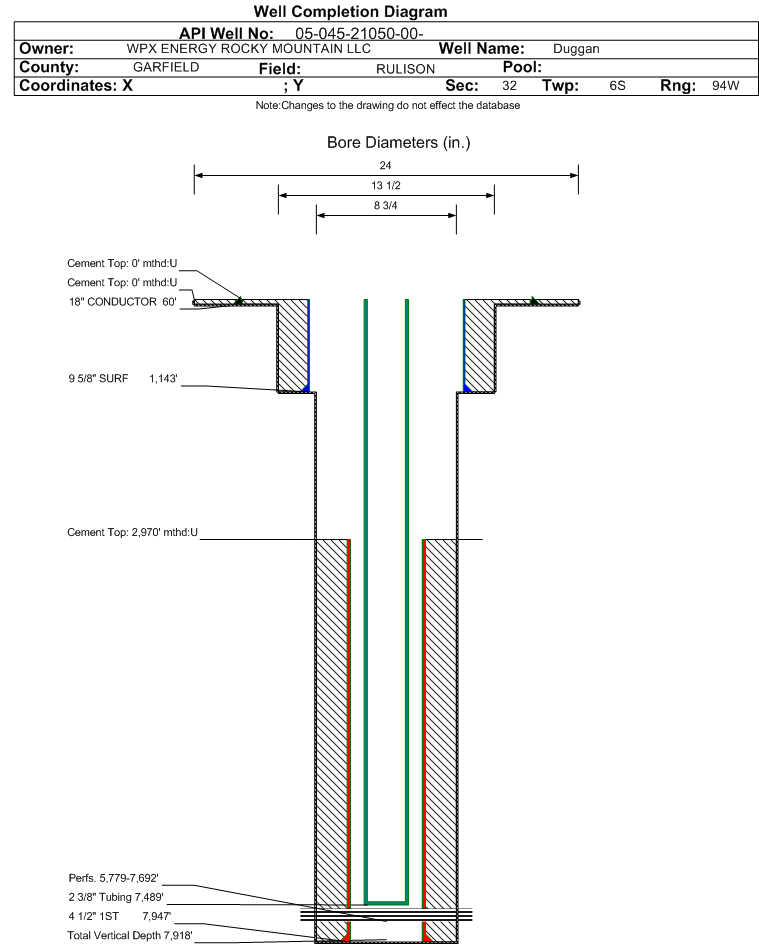

| Wellbore Completed | | Completion Date: | 12/23/2011 | | Spud Date: | 12/14/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7947 ft. | Measured PB depth: | 7919 ft. | | True Vertical TD: | 7918 ft. | True Vertical PB depth: | 7890 ft. | | Top PZ Location: | Sec:32 Twp: 6S 94W | Footage: 1451 FNL 1748 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 94W | Footage: 1471 FNL 1753 FWL | | Log Types: | SP/GR/HDIL/ZDL/CN/CBL/MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 33, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1143 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1143 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 2970 ft., Depth: 7947 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1370, Top: 2970 ft., Bottom: 7947 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2084 ft. | | | | | MESAVERDE | 4353 ft. | | | | | CAMEO | 6888 ft. | | | | | ROLLINS | 7827 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 4/29/2012 Interval Top: 5779 ft. Interval Bottom: 7692 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/22/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/20/2012 | | Treatment Summary: | 3505 Gals 7 ½% HCL; 652900 # 30/50 Sand; 77500 100/Mesh; 19774 Bbls Slickwater (Summary) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7489 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/29/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1069 | | CALC_MCF_GAS | 1254 | | CASING_PRESS | 2433 | | MCF_GAS | 1254 | | TUBING_PRESS | 2236 |
| | Perforation Data: | | Interval Top: | 5779 ft. | # Of Holes: | 127 | | Interval Bottom: | 7692 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 38 |
| Total Gas Produced (MCF) | 17542 |
| GOR | 461631 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.391 |
| Average MCFE per Day | 48.670 |
| Federal Financial Assurance | i | |
|
|
