Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2012 Measured TD: 8435 ft. Vertical TD: 7955 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/7/2013 | | Proposed Top PZ Location: | Sec:31 Twp: 6S 94W | Footage: 131 FNL 627 FEL | | Bottom Hole Location: | Sec:31 Twp: 6S 94W | Footage: 131 FNL 627 FEL | | Proposed Depth/Form: | 8544 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFk , Formation: WILLIAMS FORK , Order: 139-83 , Unit Acreage: 320, Drill Unit: N/2 Fee Pooled | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: PLANNED | | Cement: | Sacks: 50, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1166 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 307, Top: 0 ft., Bottom: 1166 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8544 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 687, Top: 4555 ft., Bottom: 8544 ft. |
| | |

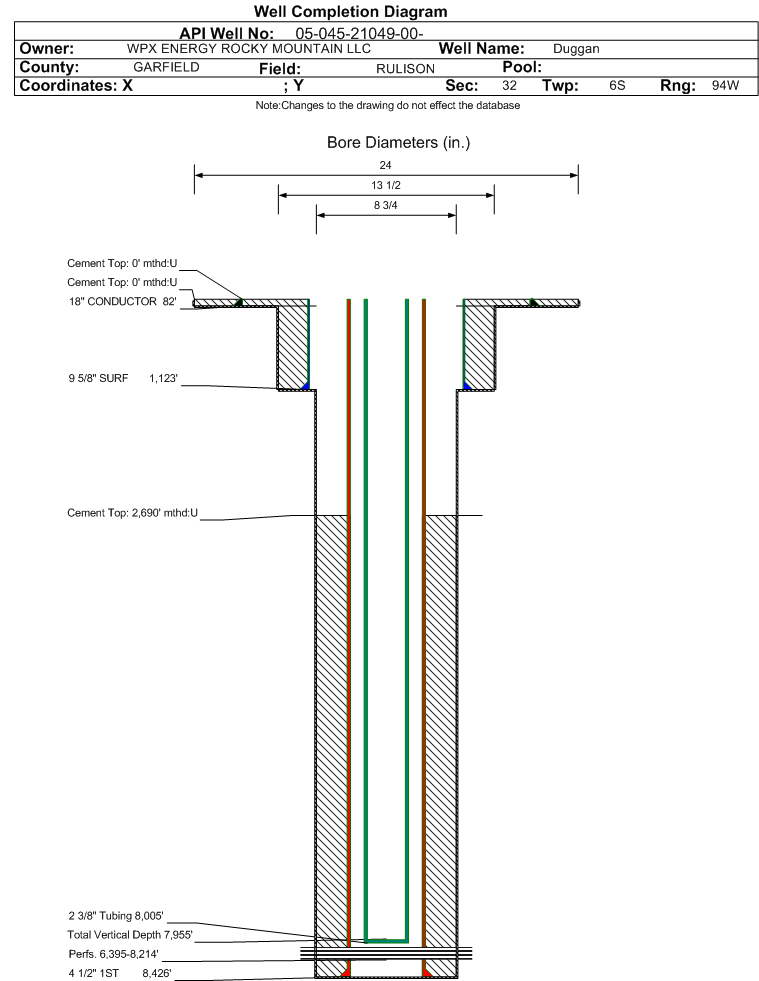

| Wellbore Completed | | Completion Date: | 2/11/2012 | | Spud Date: | 2/1/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 8435 ft. | Measured PB depth: | 8397 ft. | | True Vertical TD: | 7955 ft. | True Vertical PB depth: | 7917 ft. | | Top PZ Location: | Sec:31 Twp: 6S 94W | Footage: 176 FNL 639 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 94W | Footage: 178 FNL 626 FWL | | Log Types: | RPM/CBL/MUDLOGS | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 82 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 31, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1123 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1123 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8426 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1405, Top: 2690 ft., Bottom: 8426 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2389 ft. | | | | | MESAVERDE | 4863 ft. | | | | | CAMEO | 7436 ft. | | | | | ROLLINS | 8342 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 4/30/2012 Interval Top: 6395 ft. Interval Bottom: 8214 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/26/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/23/2012 | | Treatment Summary: | 3548 Gals 7 ½% HCL; 737600 # 30/50 Sand; 80100 100/Mesh; 21757 Bbls Slickwater (Summary) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8005 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1063 | | CALC_MCF_GAS | 418 | | CASING_PRESS | 2931 | | MCF_GAS | 418 | | TUBING_PRESS | 2380 |
| | Perforation Data: | | Interval Top: | 6395 ft. | # Of Holes: | 128 | | Interval Bottom: | 8214 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 62 |
| Total Gas Produced (MCF) | 23772 |
| GOR | 383419 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.399 |
| Average MCFE per Day | 66.127 |
| Federal Financial Assurance | i | |
|
|
