Wellbore #00 Wellbore Classification: GW Status: PR - 8/8/2018 Measured TD: 11450 ft. Vertical TD: 11428 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/8/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/20/2013 | | Proposed Top PZ Location: | Sec:4 Twp: 7S 96W | Footage: 1435 FSL 473 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 96W | Footage: 1413 FSL 462 FEL | | Proposed Depth/Form: | 11620 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: MNCS , Formation: MANCOS , Order: Unspaced , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: Unspaced , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.44# , Citings Type: PLANNED | | Cement: | Sacks: 60, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2230 ft., Weight: 43.5# , Citings Type: PLANNED | | Cement: | Sacks: 481, Top: 0 ft., Bottom: 2230 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11620 ft., Weight: 20# , Citings Type: PLANNED | | Cement: | Sacks: 1246, Top: , Bottom: 11620 ft. |
| | |

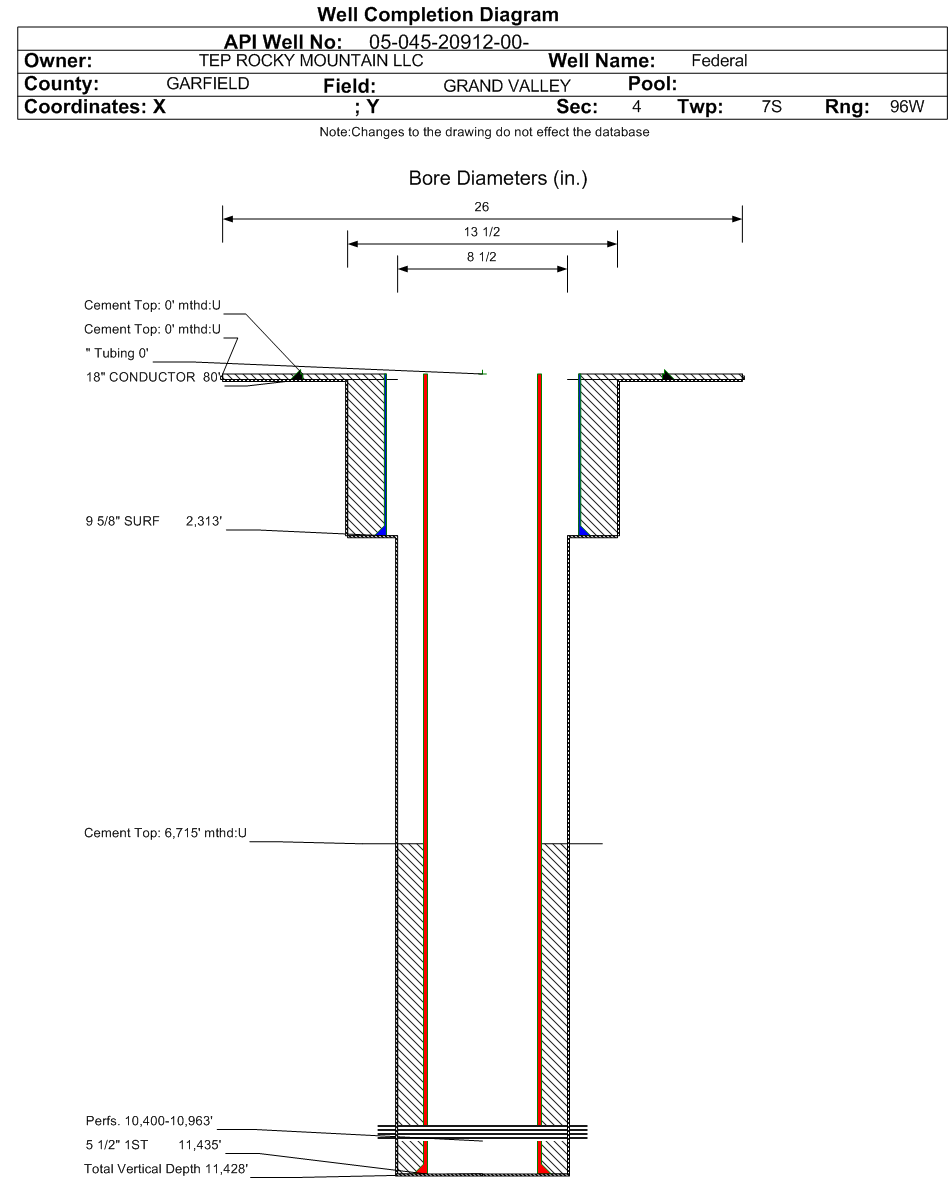

| Wellbore Completed | | Completion Date: | 10/8/2011 | | Spud Date: | 9/11/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 11450 ft. | Measured PB depth: | 11060 ft. | | True Vertical TD: | 11428 ft. | True Vertical PB depth: | 11038 ft. | | Top PZ Location: | Sec:4 Twp: 7S 96W | Footage: 1435 FSL 473 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 96W | Footage: 1413 FSL 462 FEL | | Log Types: | PLATFORM EXPRESS, GAMMA RAY, ARRAY INDUCTION/SP, XMAC, USl, ISOLATION SCANNER, AND CBL | | Log Types: | CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2313 ft., Weight: 47.4 , Citings Type: ACTUAL | | Cement: | Sacks: 570, Top: 0 ft., Bottom: 2313 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 11435 ft., Weight: 20 , Citings Type: ACTUAL | | Cement: | Sacks: 1535, Top: 6715 ft., Bottom: 11435 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 6112 ft., Depth: 6528 ft., Bottom: 6528 ft., Sacks: 820, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2174 ft. | | | | | WILLIAMS FORK | 3691 ft. | | | | | MESAVERDE | 3691 ft. | | | | | CAMEO | 6241 ft. | | | | | ROLLINS | 6714 ft. | | | | | COZZETTE | 6982 ft. | | | | | CORCORAN | 7203 ft. | | | | | SEGO | 7293 ft. | | | | | MANCOS | 7322 ft. | | | | | NIOBRARA | 10374 ft. | | | |
Formation NBRR Formation Classification: GW Status: PR - 8/8/2018 Interval Top: 10400 ft. Interval Bottom: 10963 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/6/2018 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 6/11/2015 | Treatment End Date: | N/A | | Treatment Summary: |
| | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | No | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 5/11/2012 | | Treatment Summary: | 10000 Gals 7 1/2% HCL; 69582 100Mesh; 11500 #20/40; 280738 30/50; 225341 #40/70 Sand; 25666 Bbls Slickwater; (Summary)
This is update to previous form 5 due to Re-Frac
CIBP at 11150' w/23 sks cmt due to DFIT results. see wellbore.
Please note: the "as-drilled" GPS information provided is actual data of the existing well conductor location prior to the big rig spud date.
*All flowback water entries are total estimates based on comingled volumes |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BTU_GAS | 1090 | | CALC_MCF_GAS | 610 | | CASING_PRESS | 552 | | MCF_GAS | 610 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 10400 ft. | # Of Holes: | 152 | | Interval Bottom: | 10963 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 10 |
| Total Gas Produced (MCF) | 6188 |
| GOR | 618800 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.937 |
| Average MCFE per Day | 17.056 |
| Federal Financial Assurance | i | Y |
|
|
