Wellbore #00 Wellbore Classification: GW Status: PR - 10/12/2012 Measured TD: 8850 ft. Vertical TD: 8816 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/12/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/5/2013 | | Proposed Top PZ Location: | Sec:25 Twp: 6S 93W | Footage: 1846 FNL 2603 FEL | | Bottom Hole Location: | Sec:25 Twp: 6S 93W | Footage: 1846 FNL 2603 FEL | | Proposed Depth/Form: | 9373 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | Grass Mesa Unit | Unit Number: | COC-056608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: Linepipe , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1405 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 435, Top: 0 ft., Bottom: 1405 ft. | | Casing: | String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9373 ft., Weight: 12 , Citings Type: PLANNED | | Cement: | Sacks: 917, Top: , Bottom: 9373 ft. |
| | |

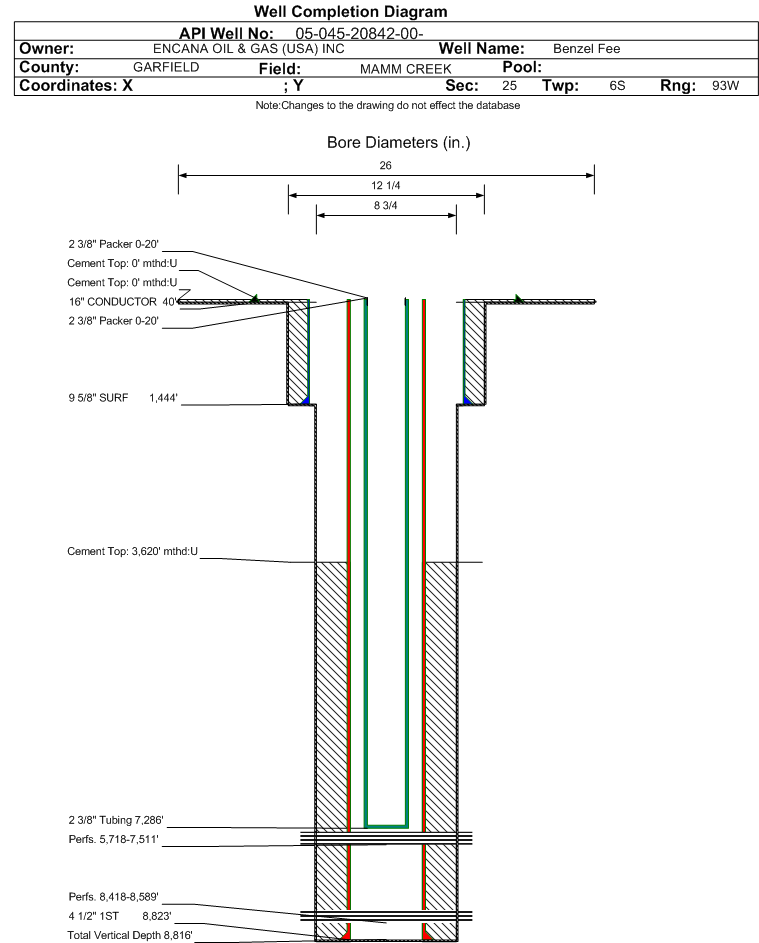

| Wellbore Completed | | Completion Date: | 1/4/2012 | | Spud Date: | 10/23/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8850 ft. | Measured PB depth: | 8777 ft. | | True Vertical TD: | 8816 ft. | True Vertical PB depth: | 8743 ft. | | Top PZ Location: | Sec:25 Twp: 6S 93W | Footage: 1832 FNL 2602 FEL | | Bottom Hole Location: | Sec:25 Twp: 6S 93W | Footage: 1838 FNL 2583 FEL | | Log Types: | RST, CBL (included on Neutron Log) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1444 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 435, Top: 0 ft., Bottom: 1464 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8823 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1460, Top: 3620 ft., Bottom: 8850 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 3867 ft. | 4420 ft. | N | N | | WILLIAMS FORK | 4421 ft. | 7591 ft. | N | N | | ROLLINS | 7592 ft. | 8147 ft. | N | N | | COZZETTE | 8148 ft. | 8391 ft. | N | N | | CORCORAN | 8392 ft. | 8850 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 3/18/2012 Interval Top: 8418 ft. Interval Bottom: 8589 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 3/11/2012 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/5/2012 | | Treatment Summary: | Stage 1 treated with a total of: 11,524 bbls of Slickwater. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7286 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/18/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 44 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 44 | | CALC_MCF_GAS | 2202 | | CASING_PRESS | 1350 | | MCF_GAS | 2202 | | TUBING_PRESS | 725 |
| | Perforation Data: | | Interval Top: | 8418 ft. | # Of Holes: | 27 | | Interval Bottom: | 8589 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 9/25/2012 Interval Top: 5718 ft. Interval Bottom: 7511 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/11/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 2/5/2012 | | Treatment Summary: | Stages 2-8 treated with a totao fo: 64,269 bbls of Slickwater. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7286 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/18/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 44 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 44 | | CALC_MCF_GAS | 2202 | | CASING_PRESS | 1350 | | MCF_GAS | 2202 | | TUBING_PRESS | 725 |
| | Perforation Data: | | Interval Top: | 5718 ft. | # Of Holes: | 183 | | Interval Bottom: | 7511 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 499 |
| Total Gas Produced (MCF) | 39734 |
| GOR | 79627 |
| GOR Determination | MCFE |
| Average BOE per Day | 20.125 |
| Average MCFE per Day | 116.775 |
| Federal Financial Assurance | i | Y |
|
|
