Wellbore #00 Wellbore Classification: GW Status: PR - 5/8/2012 Measured TD: 5730 ft. Vertical TD: 5458 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/8/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/4/2013 | | Proposed Top PZ Location: | Sec:23 Twp: 7S 96W | Footage: 792 FNL 260 FWL | | Bottom Hole Location: | Sec:23 Twp: 7S 96W | Footage: 792 FNL 260 FWL | | Proposed Depth/Form: | 5927 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 960 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 256, Top: 0 ft., Bottom: 960 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5927 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 529, Top: , Bottom: 5927 ft. |
| | |

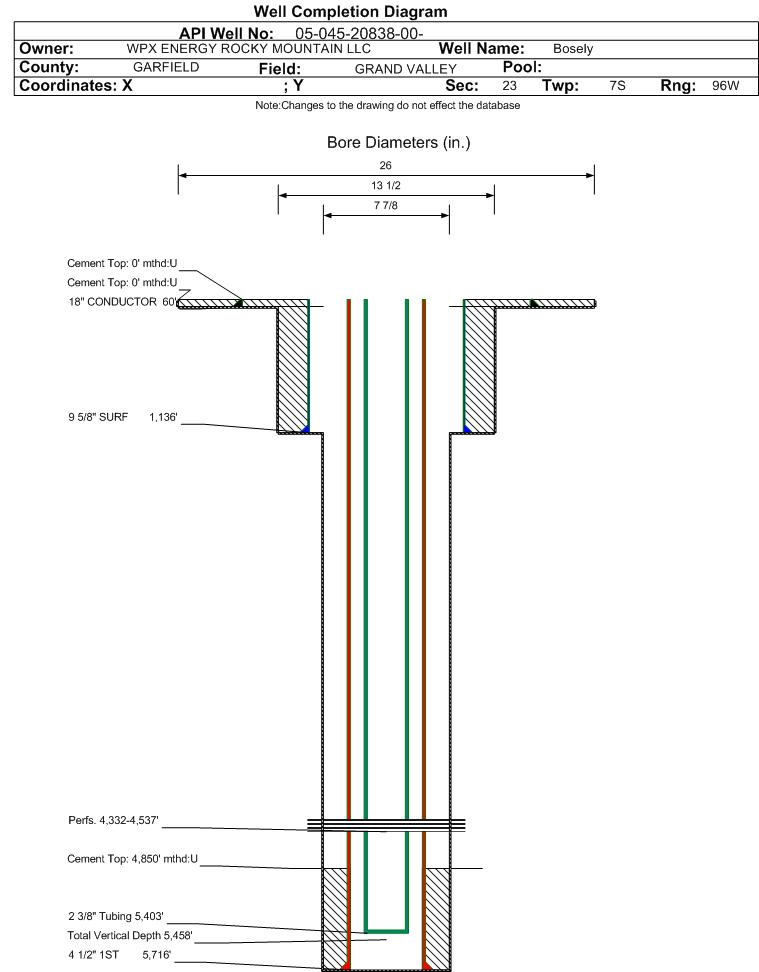

| Wellbore Completed | | Completion Date: | 2/21/2012 | | Spud Date: | 2/18/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 5730 ft. | Measured PB depth: | 5684 ft. | | True Vertical TD: | 5458 ft. | True Vertical PB depth: | 5412 ft. | | Top PZ Location: | Sec:23 Twp: 7S 96W | Footage: 828 FNL 272 FWL | | Bottom Hole Location: | Sec:23 Twp: 7S 96W | Footage: 850 FNL 245 FWL | | Log Types: | CBL/RPM & Mud Logs | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1136 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: 0 ft., Bottom: 1136 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5716 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 965, Top: 4850 ft., Bottom: 5716 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 3956 ft., Depth: 4650 ft., Bottom: 4650 ft., Sacks: 600, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 875 ft. | | | | | MESAVERDE | 2816 ft. | | | | | CAMEO | 5127 ft. | | | | | ROLLINS | 5644 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 5/8/2012 Interval Top: 4332 ft. Interval Bottom: 4537 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/24/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/19/2012 | | Treatment Summary: | 630100# 40/70 Sand; 16518 BBL's Slickwater. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5403 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/8/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1073 | | CASING_PRESS | 1334 | | TUBING_PRESS | 1122 |
| | Perforation Data: | | Interval Top: | 4332 ft. | # Of Holes: | 110 | | Interval Bottom: | 4537 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 24 |
| Total Gas Produced (MCF) | 20876 |
| GOR | 869833 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.925 |
| Average MCFE per Day | 57.562 |
| Federal Financial Assurance | i | Y |
|
|
