Wellbore #00 Wellbore Classification: GW Status: PR - 5/8/2012 Measured TD: 5575 ft. Vertical TD: 5496 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/8/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/4/2013 | | Proposed Top PZ Location: | Sec:23 Twp: 7S 96W | Footage: 1816 FNL 1854 FWL | | Bottom Hole Location: | Sec:23 Twp: 7S 96W | Footage: 1816 FNL 1854 FWL | | Proposed Depth/Form: | 5599 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: 160, Drill Unit: NW/4 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 679 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 186, Top: 0 ft., Bottom: 679 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5599 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 516, Top: , Bottom: 5599 ft. |
| | |

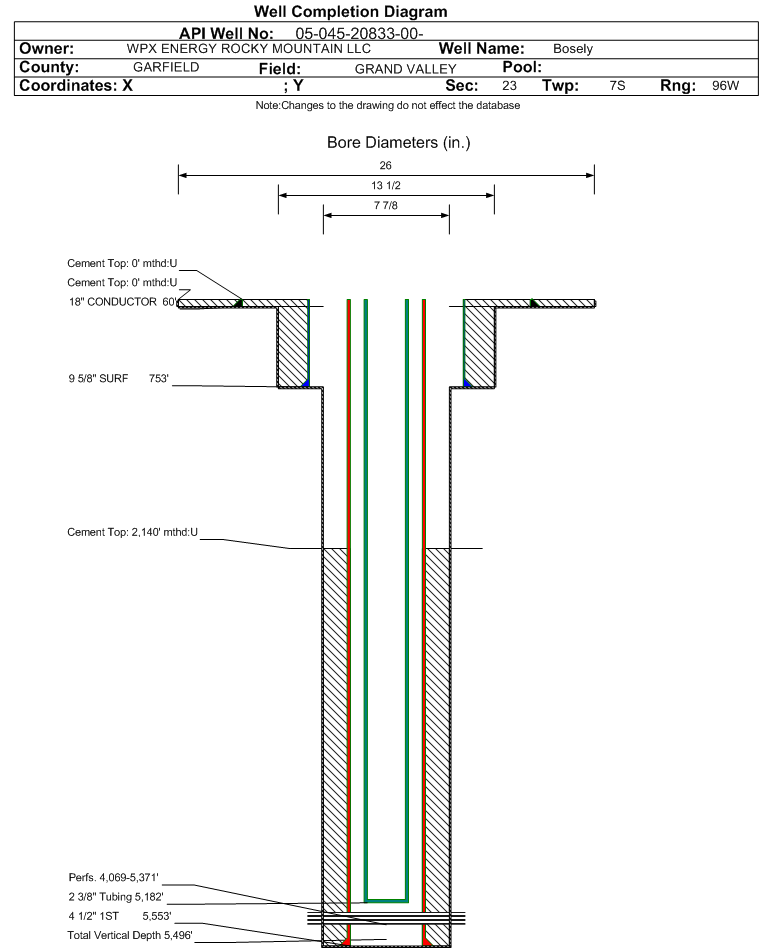

| Wellbore Completed | | Completion Date: | 2/12/2012 | | Spud Date: | 2/7/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 5575 ft. | Measured PB depth: | 5521 ft. | | True Vertical TD: | 5496 ft. | True Vertical PB depth: | 5442 ft. | | Top PZ Location: | Sec:23 Twp: 7S 96W | Footage: 1797 FNL 1857 FWL | | Bottom Hole Location: | Sec:23 Twp: 7S 96W | Footage: 1818 FNL 1841 FWL | | Log Types: | CBL/RPM & Mud Logs | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 753 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 753 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5553 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 965, Top: 2140 ft., Bottom: 5553 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 727 ft. | | | | | MESAVERDE | 2624 ft. | | | | | CAMEO | 4985 ft. | | | | | ROLLINS | 5435 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 5/8/2012 Interval Top: 4069 ft. Interval Bottom: 5371 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/26/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/18/2012 | | Treatment Summary: | 599000# 40/70 Sand; 15276 BBL's Slickwater (summary). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5182 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/8/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1073 | | CALC_MCF_GAS | 1153 | | CASING_PRESS | 1405 | | MCF_GAS | 1153 | | TUBING_PRESS | 1248 |
| | Perforation Data: | | Interval Top: | 4069 ft. | # Of Holes: | 114 | | Interval Bottom: | 5371 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 19 |
| Total Gas Produced (MCF) | 16374 |
| GOR | 861789 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.783 |
| Average MCFE per Day | 45.155 |
| Federal Financial Assurance | i | |
|
|
