Wellbore #00 Wellbore Classification: GW Status: PR - 5/8/2012 Measured TD: 5750 ft. Vertical TD: 5503 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/8/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 7/4/2013 | | Proposed Top PZ Location: | Sec:23 Twp: 7S 96W | Footage: 323 FNL 568 FWL | | Bottom Hole Location: | Sec:23 Twp: 7S 96W | Footage: 323 FNL 568 FWL | | Proposed Depth/Form: | 5925 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 916 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 245, Top: 0 ft., Bottom: 916 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5925 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 543, Top: , Bottom: 5925 ft. |
| | |

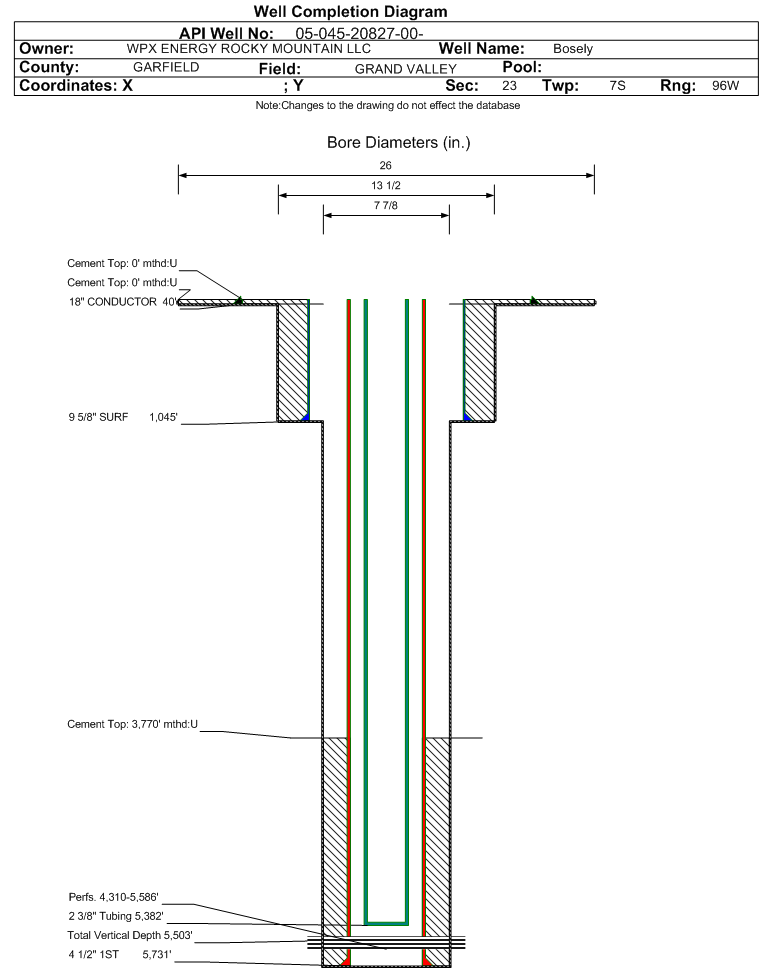

| Wellbore Completed | | Completion Date: | 2/25/2012 | | Spud Date: | 2/22/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 5750 ft. | Measured PB depth: | 5699 ft. | | True Vertical TD: | 5503 ft. | True Vertical PB depth: | 5452 ft. | | Top PZ Location: | Sec:23 Twp: 7S 96W | Footage: 347 FNL 587 FWL | | Bottom Hole Location: | Sec:23 Twp: 7S 96W | Footage: 373 FNL 563 FWL | | Log Types: | CBL/RPM & Mud Logs | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 40 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 15, Top: 0 ft., Bottom: 40 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1045 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 310, Top: 0 ft., Bottom: 1045 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5731 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 975, Top: 3770 ft., Bottom: 5731 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 877 ft. | | | | | MESAVERDE | 2815 ft. | | | | | CAMEO | 5135 ft. | | | | | ROLLINS | 5655 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 5/8/2012 Interval Top: 4310 ft. Interval Bottom: 5586 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/24/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/18/2012 | | Treatment Summary: | 468300# 40/70 Sand; 9479 BBL's Slickwater (Summary). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5382 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/8/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1073 | | CALC_MCF_GAS | 1347 | | CASING_PRESS | 1261 | | MCF_GAS | 1347 | | TUBING_PRESS | 1128 |
| | Perforation Data: | | Interval Top: | 4310 ft. | # Of Holes: | 103 | | Interval Bottom: | 5586 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 20627 |
| GOR | 825080 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.802 |
| Average MCFE per Day | 56.866 |
| Federal Financial Assurance | i | Y |
|
|
