Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2018 Measured TD: 8100 ft. Vertical TD: 8017 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/7/2013 | | Proposed Top PZ Location: | Sec:19 Twp: 6S 92W | Footage: 1480 FSL 830 FWL | | Bottom Hole Location: | Sec:19 Twp: 6S 92W | Footage: 1480 FSL 830 FWL | | Proposed Depth/Form: | 8350 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1253 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 394, Top: 0 ft., Bottom: 1253 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8350 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 611, Top: 0 ft., Bottom: 8350 ft. |
| | |

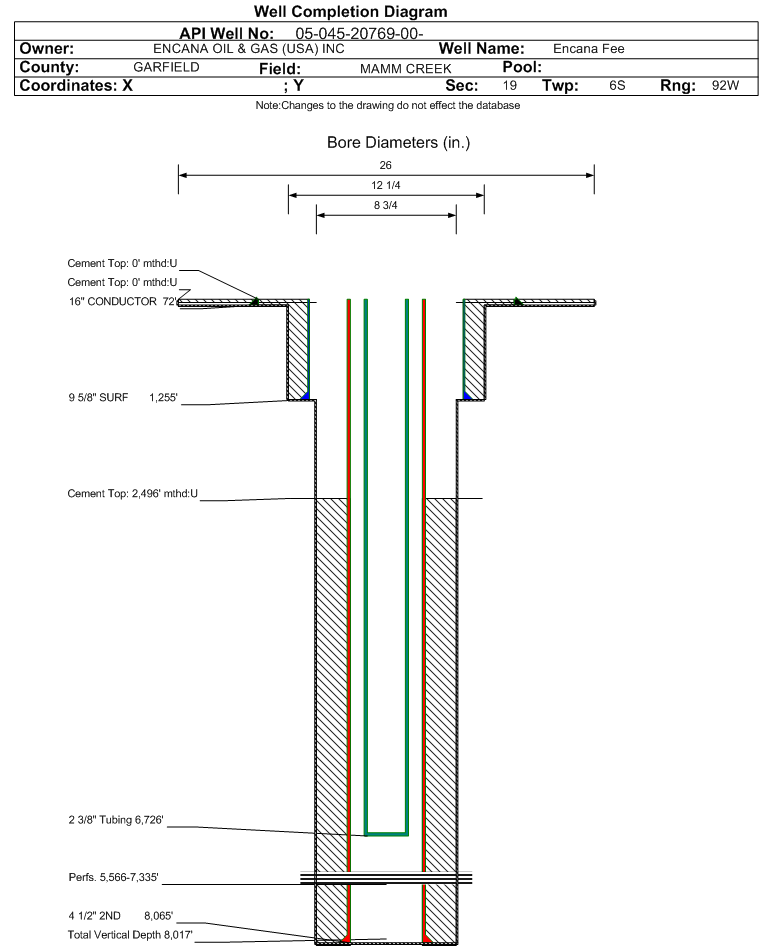

| Wellbore Completed | | Completion Date: | 2/24/2012 | | Spud Date: | 11/19/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8100 ft. | Measured PB depth: | 8018 ft. | | True Vertical TD: | 8017 ft. | True Vertical PB depth: | 7935 ft. | | Top PZ Location: | Sec:19 Twp: 6S 92W | Footage: 1495 FSL 849 FWL | | Bottom Hole Location: | Sec:19 Twp: 6S 92W | Footage: 1485 FSL 854 FWL | | Log Types: | CBL, RST, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 72 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1255 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 410, Top: 0 ft., Bottom: 1266 ft., Determination Method: CALC | | Casing: | String Type: 2ND, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8065 ft., Weight: 12 , Citings Type: ACTUAL | | Cement: | Sacks: 1400, Top: 2496 ft., Bottom: 8100 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 3746 ft. | 4346 ft. | | | | WILLIAMS FORK | 4347 ft. | 7427 ft. | | | | ROLLINS | 7428 ft. | 8100 ft. | | |
Formation WMFK Formation Classification: GW Status: PR - 8/1/2018 Interval Top: 5566 ft. Interval Bottom: 7335 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/14/2012 | Choke Size: | 48.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/11/2012 | | Treatment Summary: | Stages 01-07 treated with a total of: 105526 bbls of Slickwater. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6726 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/13/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 135 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 135 | | CALC_MCF_GAS | 1186 | | CASING_PRESS | 250 | | MCF_GAS | 1186 | | TUBING_PRESS | 750 |
| | Perforation Data: | | Interval Top: | 5566 ft. | # Of Holes: | 189 | | Interval Bottom: | 7335 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 458 |
| Total Gas Produced (MCF) | 29736 |
| GOR | 64925 |
| GOR Determination | MCFE |
| Average BOE per Day | 15.296 |
| Average MCFE per Day | 88.695 |
