Wellbore #00 Wellbore Classification: GW Status: PR - 9/10/2013 Measured TD: 7900 ft. Vertical TD: 7687 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/10/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/7/2013 | | Proposed Top PZ Location: | Sec:24 Twp: 6S 93W | Footage: 1500 FNL 845 FEL | | Bottom Hole Location: | Sec:19 Twp: 6S 92W | Footage: 1685 FNL 600 FEL | | Proposed Depth/Form: | 8778 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA | Unit Number: | COC 56608X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1319 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 412, Top: 0 ft., Bottom: 1319 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8778 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 611, Top: 0 ft., Bottom: 8778 ft. |
| | |

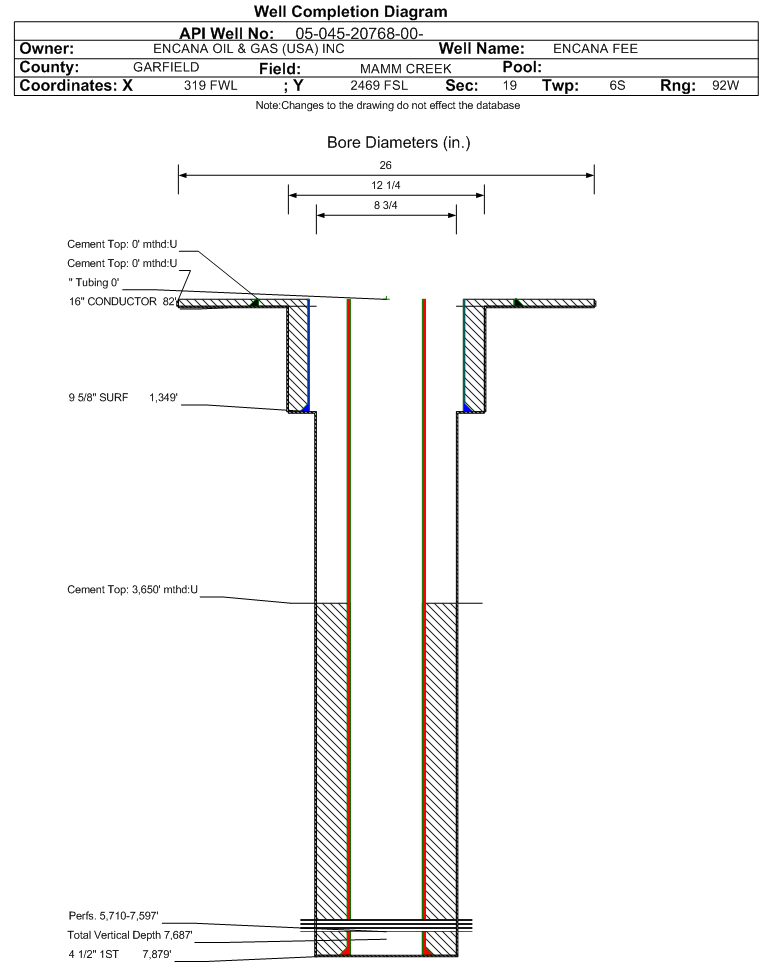

| Wellbore Completed | | Completion Date: | 4/7/2013 | | Spud Date: | 2/1/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 7900 ft. | Measured PB depth: | 7832 ft. | | True Vertical TD: | 7687 ft. | True Vertical PB depth: | 7619 ft. | | Top PZ Location: | Sec:24 Twp: 6S 93W | Footage: 1856 FNL 467 FEL | | Bottom Hole Location: | Sec:24 Twp: 6S 93W | Footage: 1713 FNL 632 FEL | | Log Types: | RST, CBL, Temperature, Mud logs | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 82 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1349 ft., Weight: 36.0 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 1349 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7879 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 963, Top: 3650 ft., Bottom: 7879 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 3955 ft. | 4639 ft. | | | | WILLIAMS FORK | 4639 ft. | 7730 ft. | | | | ROLLINS | 7730 ft. | 7900 ft. | | |
Formation WMFK Formation Classification: OW Status: PR - 7/31/2013 Interval Top: 5710 ft. Interval Bottom: 7597 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/30/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/25/2013 | Treatment End Date: | 8/10/2013 | | Treatment Summary: | Stage 1 - Stage 7 treated with a total of: 88,627 bbls of Slickwater (BWS). | | Total fluid used in treatment (bbls): | 88627 | Max pressure during treatment (psi): | 5430 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.76 | | Recycled water used in treatment (bbls): | 88627 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/31/2013 | Test Method: | Flows from well | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1253 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1253 | | CALC_MCF_GAS | 815 | | CASING_PRESS | 1150 | | MCF_GAS | 815 |
| | Perforation Data: | | Interval Top: | 5710 ft. | # Of Holes: | 189 | | Interval Bottom: | 7597 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 354 |
| Total Gas Produced (MCF) | 21247 |
| GOR | 60019 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.009 |
| Average MCFE per Day | 63.855 |
| Federal Financial Assurance | i | Y |
|
|
