Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2023 Measured TD: 7779 ft. Vertical TD: 7642 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/7/2013 | | Proposed Top PZ Location: | Sec:24 Twp: 6S 93W | Footage: 2500 FSL 845 FEL | | Bottom Hole Location: | Sec:24 Twp: 6S 93W | Footage: 2500 FSL 845 FEL | | Proposed Depth/Form: | 8546 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA | Unit Number: | COC 56608X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1281 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 402, Top: 0 ft., Bottom: 1281 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8546 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 611, Top: 0 ft., Bottom: 8546 ft. |
| | |

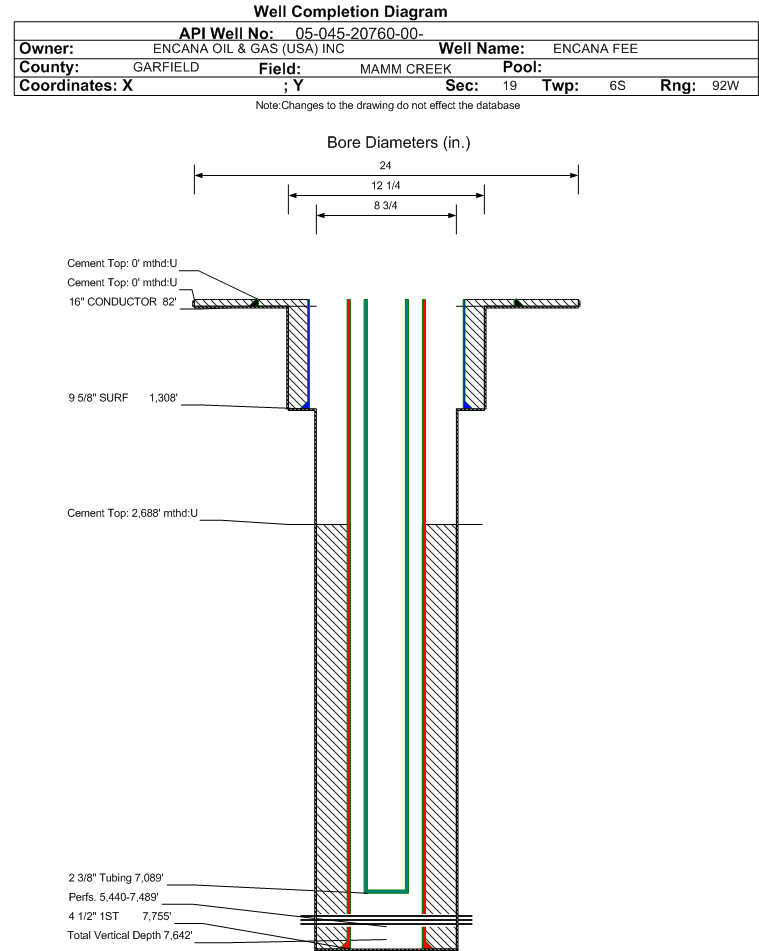

| Wellbore Completed | | Completion Date: | 3/6/2013 | | Spud Date: | 2/5/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 7779 ft. | Measured PB depth: | 7701 ft. | | True Vertical TD: | 7642 ft. | True Vertical PB depth: | 7571 ft. | | Top PZ Location: | Sec:24 Twp: 6S 93W | Footage: 2496 FSL 829 FEL | | Bottom Hole Location: | Sec:24 Twp: 6S 93W | Footage: 2480 FSL 827 FEL | | Log Types: | CBL, Gamma Ray, Mud | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 82 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1308 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 474, Top: 0 ft., Bottom: 1308 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7755 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1083, Top: 2688 ft., Bottom: 7755 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4528 ft. | 7605 ft. | | | | ROLLINS | 7605 ft. | 7779 ft. | | |
Formation WMFK Formation Classification: OW Status: PR - 11/1/2023 Interval Top: 5440 ft. Interval Bottom: 7489 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/30/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/18/2013 | Treatment End Date: | 8/11/2013 | | Treatment Summary: | Stage 1 - Stage 7 treated with a total of: 99,714 bbls of Slickwater (BWS) | | Total fluid used in treatment (bbls): | 99714 | Max pressure during treatment (psi): | 5510 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.75 | | Recycled water used in treatment (bbls): | 99714 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7089 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/1/2013 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1448 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1448 | | CALC_MCF_GAS | 561 | | CASING_PRESS | 675 | | MCF_GAS | 561 |
| | Perforation Data: | | Interval Top: | 5440 ft. | # Of Holes: | 189 | | Interval Bottom: | 7489 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 479 |
| Total Gas Produced (MCF) | 28276 |
| GOR | 59031 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.677 |
| Average MCFE per Day | 85.111 |
| Federal Financial Assurance | i | Y |
|
|
