Wellbore #00 Wellbore Classification: GW Status: SI - 8/1/2025 Measured TD: 8460 ft. Vertical TD: 7809 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 8/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 6/7/2013 | | Proposed Top PZ Location: | Sec:24 Twp: 6S 93W | Footage: 640 FNL 1110 FEL | | Bottom Hole Location: | Sec:19 Twp: 6S 92W | Footage: 640 FNL 1203 FEL | | Proposed Depth/Form: | 9169 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA | Unit Number: | COC056608X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1375 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 427, Top: 0 ft., Bottom: 1375 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9169 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 611, Top: 0 ft., Bottom: 9169 ft. |
| | |

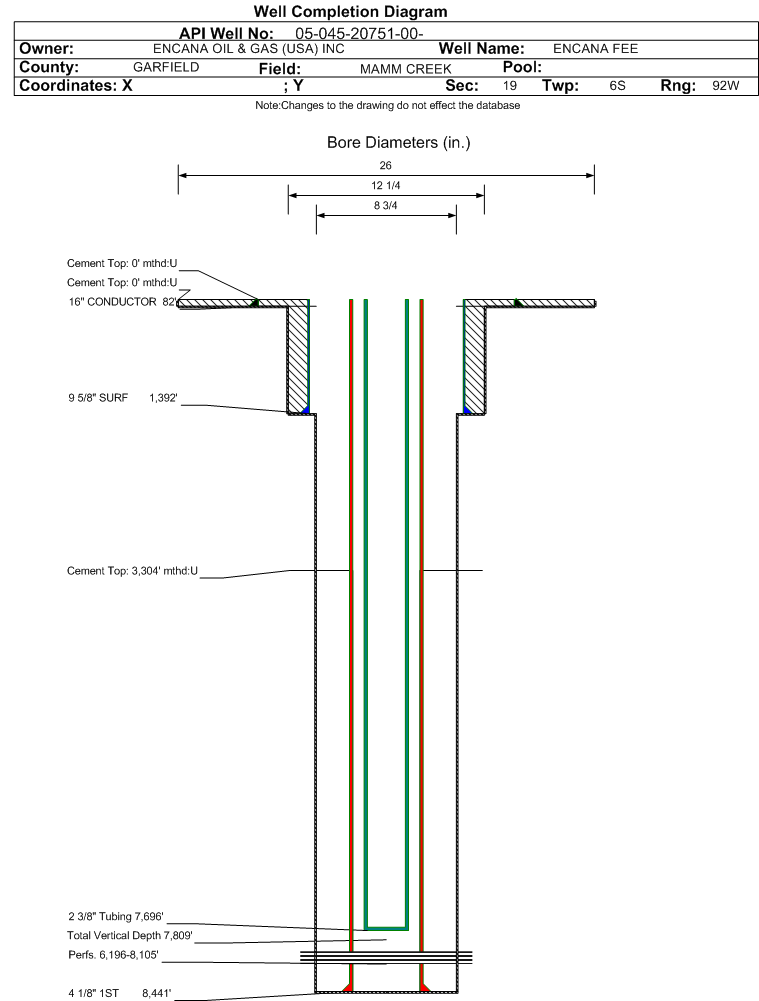

| Wellbore Completed | | Completion Date: | 4/14/2013 | | Spud Date: | 1/30/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 8460 ft. | Measured PB depth: | 8402 ft. | | True Vertical TD: | 7809 ft. | True Vertical PB depth: | 7751 ft. | | Top PZ Location: | Sec:24 Twp: 6S 93W | Footage: 675 FNL 1202 FEL | | Bottom Hole Location: | Sec:24 Twp: 6S 93W | Footage: 656 FNL 1239 FEL | | Log Types: | RST, CBL, and Mud logs | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 82 ft., Weight: 42.09 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 82 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1392 ft., Weight: 36.0 , Citings Type: ACTUAL | | Cement: | Sacks: 496, Top: 0 ft., Bottom: 1392 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.2 in., Top: 0 ft., Depth: 8441 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 998, Top: 3304 ft., Bottom: 8441 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 4356 ft. | 5085 ft. | | | | WILLIAMS FORK | 5085 ft. | 8217 ft. | | | | ROLLINS | 8217 ft. | 8460 ft. | | |
Formation WMFK Formation Classification: OW Status: SI - 8/1/2025 Interval Top: 6196 ft. Interval Bottom: 8105 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/31/2013 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/24/2013 | Treatment End Date: | 8/10/2013 | | Treatment Summary: | Stage 1 - Stage 6 treated with a total of: 84,570 bbls of Slickwater (BWS). | | Total fluid used in treatment (bbls): | 84570 | Max pressure during treatment (psi): | 1472 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.40 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.74 | | Recycled water used in treatment (bbls): | 84570 | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7696 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/19/2013 | Test Method: | Flows from well | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 823 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 823 | | CALC_MCF_GAS | 830 | | CASING_PRESS | 1850 | | MCF_GAS | 830 | | TUBING_PRESS | 750 |
| | Perforation Data: | | Interval Top: | 6196 ft. | # Of Holes: | 162 | | Interval Bottom: | 8105 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 26 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.011 |
| Average MCFE per Day | 0.070 |
| Federal Financial Assurance | i | Y |
|
|
