Wellbore #00 Wellbore Classification: GW Status: PR - 1/11/2013 Measured TD: 10580 ft. Vertical TD: 10084 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/11/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/14/2013 | | Proposed Top PZ Location: | Sec:17 Twp: 7S 93W | Footage: 1800 FSL 1140 FEL | | Bottom Hole Location: | Sec:17 Twp: 7S 93W | Footage: 1800 FSL 1140 FEL | | Proposed Depth/Form: | 10763 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEDERAL | | Unit: | NA | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-111 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 65 , Citings Type: PLANNED | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 361, Top: 0 ft., Bottom: 1128 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 10763 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 742, Top: 0 ft., Bottom: 10763 ft. |
| | |

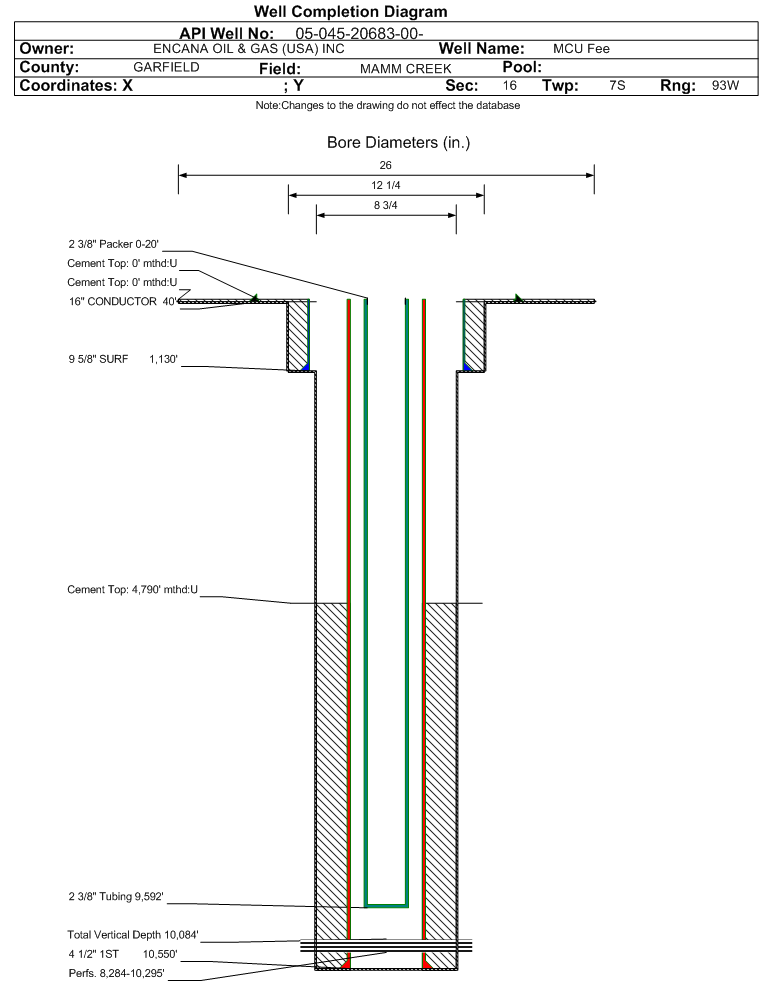

| Wellbore Completed | | Completion Date: | 8/23/2012 | | Spud Date: | 7/12/2012 | Spud Date Is: | ACTUAL | | Measured TD: | 10580 ft. | Measured PB depth: | 10580 ft. | | True Vertical TD: | 10084 ft. | True Vertical PB depth: | 10084 ft. | | Top PZ Location: | Sec:17 Twp: 7S 93W | Footage: 1766 FSL 1138 FEL | | Bottom Hole Location: | Sec:17 Twp: 7S 93W | Footage: 1811 FSL 1162 FEL | | Log Types: | RST, CBL (included in Neutron Log) and Mud. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 40, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1130 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 409, Top: 0 ft., Bottom: 1130 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10550 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 938, Top: 4790 ft., Bottom: 10580 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 6678 ft. | 7438 ft. | N | N | | WILLIAMS FORK | 7439 ft. | 10331 ft. | N | N | | ROLLINS | 10332 ft. | 10580 ft. | N | N |
Formation WMFK Formation Classification: OW Status: PR - 11/30/2012 Interval Top: 8284 ft. Interval Bottom: 10295 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 11/20/2012 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 11/10/2012 | Treatment End Date: | 11/14/2012 | | Treatment Summary: | Stages 1-7 treated with a total of: 141,719 bbls of Slickwater. | | Total fluid used in treatment (bbls): | 141719 | Max pressure during treatment (psi): | 5826 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.50 | | Type Of gas: | | Number Of staged intervals: | 7 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.70 | | Recycled water used in treatment (bbls): | 141719 | Total flowback volume recovered (bbls): | 32752 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 0 | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9592 ft. | | Tubing Packer Depth: | 0 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/30/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 996 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 996 | | CALC_MCF_GAS | 1302 | | CASING_PRESS | 2564 | | MCF_GAS | 1302 | | TUBING_PRESS | 1002 |
| | Perforation Data: | | Interval Top: | 8284 ft. | # Of Holes: | 189 | | Interval Bottom: | 10295 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 111 |
| Total Gas Produced (MCF) | 18847 |
| GOR | 169792 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.233 |
| Average MCFE per Day | 53.530 |
| Federal Financial Assurance | i | |
|
|
