Wellbore #00 Wellbore Classification: GW Status: PR - 2/17/2014 Measured TD: 6900 ft. Vertical TD: 6397 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/17/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/6/2015 | | Proposed Top PZ Location: | Sec:18 Twp: 7S 95W | Footage: 1931 1942 | | Bottom Hole Location: | Sec:18 Twp: 7S 95W | Footage: 1938 1955 | | Proposed Depth/Form: | 6986 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 440-60 , Unit Acreage: 320, Drill Unit: sec 18:S2 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-60 , Unit Acreage: 320, Drill Unit: Sec 18:S2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 60 ft., Weight: 55 , Citings Type: PLANNED | | Cement: | Sacks: 112, Top: 0 ft., Bottom: 60 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1856 ft., Weight: 24/32 , Citings Type: PLANNED | | Cement: | Sacks: 459, Top: 0 ft., Bottom: 1856 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6986 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 548, Top: , Bottom: 6986 ft. |
| | |

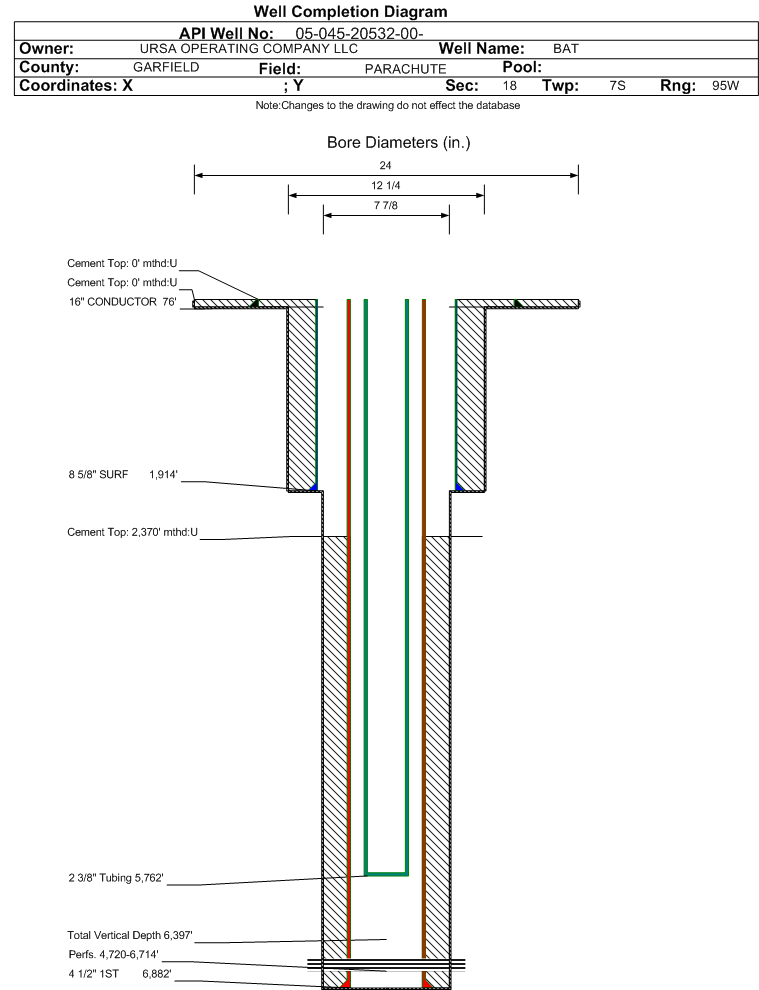

| Wellbore Completed | | Completion Date: | 12/7/2013 | | Spud Date: | 10/8/2013 | Spud Date Is: | ACTUAL | | Measured TD: | 6900 ft. | Measured PB depth: | 6838 ft. | | True Vertical TD: | 6397 ft. | True Vertical PB depth: | 6335 ft. | | Top PZ Location: | Sec:18 Twp: 7S 95W | Footage: 1936 FSL 1965 FEL | | Bottom Hole Location: | Sec:18 Twp: 7S 95W | Footage: 1931 FSL 1982 FEL | | Log Types: | Triple Combo, Mud, Pulsed Neutron, and CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 76 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: 111, Top: 0 ft., Bottom: 76 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1914 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 726, Top: 0 ft., Bottom: 1914 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6882 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 850, Top: 2370 ft., Bottom: 6882 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3730 ft. | | | | | CAMEO | 6165 ft. | | | | | ROLLINS | 6686 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 2/17/2014 Interval Top: 4720 ft. Interval Bottom: 6714 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/24/2014 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 1/9/2014 | Treatment End Date: | 1/18/2014 | | Treatment Summary: | Frac'd with 58,125 bbls 2% slickwater, 95 bbls 7.5% HCL acid and 800,119 lbs of 30/50 sand. | | Total fluid used in treatment (bbls): | 58220 | Max pressure during treatment (psi): | 7664 | | Total gas used in treatment (mcf): | 0 | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 8 | | Total acid used in treatment (bbls): | 95 | Min frac gradient (psi/ft): | 0.67 | | Recycled water used in treatment (bbls): | 58125 | Total flowback volume recovered (bbls): | 46156 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 800119 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5762 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/17/2014 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 21 | | BBLS_OIL | 4 | | BTU_GAS | 1180 | | CALC_BBLS_H2O | 21 | | CALC_BBLS_OIL | 4 | | CALC_GOR | 949250 | | CALC_MCF_GAS | 3797 | | CASING_PRESS | 780 | | GRAVITY_OIL | 52 | | MCF_GAS | 3797 | | TUBING_PRESS | 1200 |
| | Perforation Data: | | Interval Top: | 4720 ft. | # Of Holes: | 512 | | Interval Bottom: | 6714 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 10 |
| Total Gas Produced (MCF) | 11877 |
| GOR | 1187700 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.642 |
| Average MCFE per Day | 32.712 |
| Federal Financial Assurance | i | |
|
|
