Wellbore #00 Wellbore Classification: GW Status: PR - 1/11/2012 Measured TD: 5260 ft. Vertical TD: 5150 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/11/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/10/2013 | | Proposed Top PZ Location: | Sec:27 Twp: 7S 96W | Footage: 446 FNL 1862 FEL | | Bottom Hole Location: | Sec:27 Twp: 7S 96W | Footage: 446 FNL 1862 FEL | | Proposed Depth/Form: | 5264 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: 160, Drill Unit: NE/4 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48# , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1470 ft., Weight: 32.3# , Citings Type: PLANNED | | Cement: | Sacks: 513, Top: 0 ft., Bottom: 1470 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5264 ft., Weight: 11.6# , Citings Type: PLANNED | | Cement: | Sacks: 509, Top: , Bottom: 5264 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/11/2011 | | Spud Date: | 10/5/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 5260 ft. | Measured PB depth: | 5206 ft. | | True Vertical TD: | 5150 ft. | True Vertical PB depth: | 5096 ft. | | Top PZ Location: | Sec:27 Twp: 7s 96w | Footage: 441 FNL 1851 FEL | | Bottom Hole Location: | Sec:27 Twp: 7s 96w | Footage: 451 FNL 1865 FEL | | Log Types: | SP/GR/HDIL/ZDL/CN and CBL
Gamma Ray, High Definition Induction Log, Compensated Z-Densilog, Compensated Neutron Log, and CBL
CBL and Reservoir Performance Monitor (RPM)
Mud

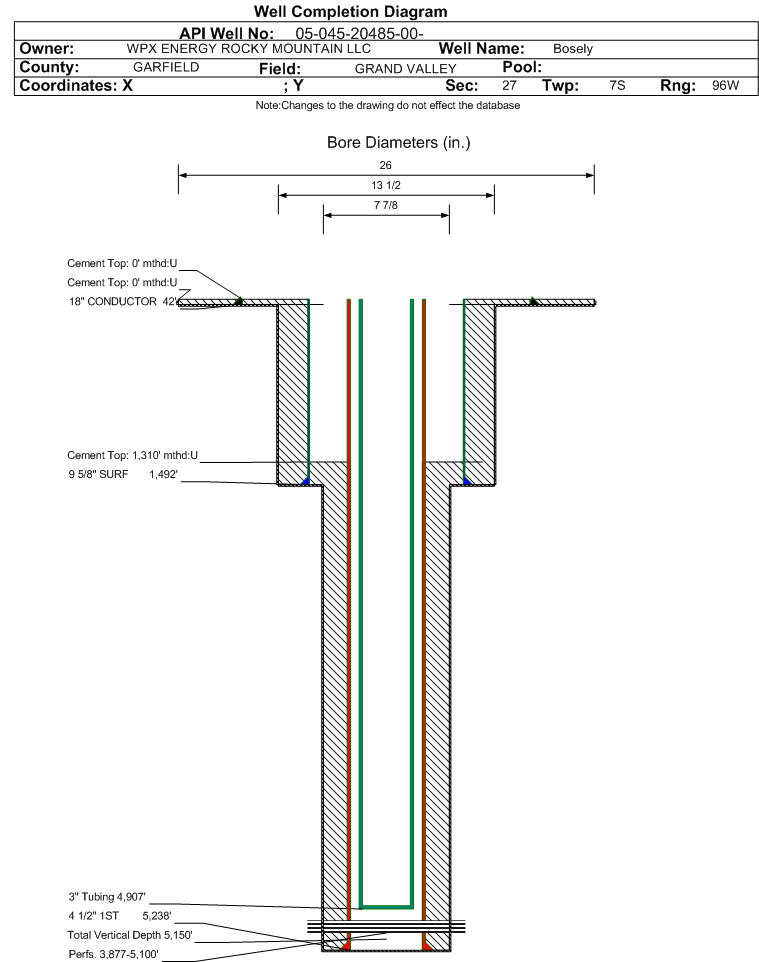

| | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1492 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 365, Top: 0 ft., Bottom: 1492 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5238 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 1310 ft., Bottom: 5238 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 681 ft. | | | | | MESAVERDE | 2333 ft. | | | | | CAMEO | 4720 ft. | | | | | ROLLINS | 5147 ft. | | | |
Formation WFCM Formation Classification: OW Status: PR - 1/6/2012 Interval Top: 3877 ft. Interval Bottom: 5100 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/22/2011 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/17/2011 | | Treatment Summary: | 2500 gal 7.5% HCL; 811700# 30/50 Sand; 17201 BBLs Slickwater (Summary). |
| | Tubing Size: | 3 in. | Tubing Setting Depth: | 4907 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/6/2012 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1047 | | CALC_MCF_GAS | 853 | | CASING_PRESS | 535 | | MCF_GAS | 853 | | TUBING_PRESS | 339 |
| | Perforation Data: | | Interval Top: | 3877 ft. | # Of Holes: | 103 | | Interval Bottom: | 5100 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 23 |
| Total Gas Produced (MCF) | 15363 |
| GOR | 667956 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.315 |
| Average MCFE per Day | 42.434 |
| Federal Financial Assurance | i | |
|
|
